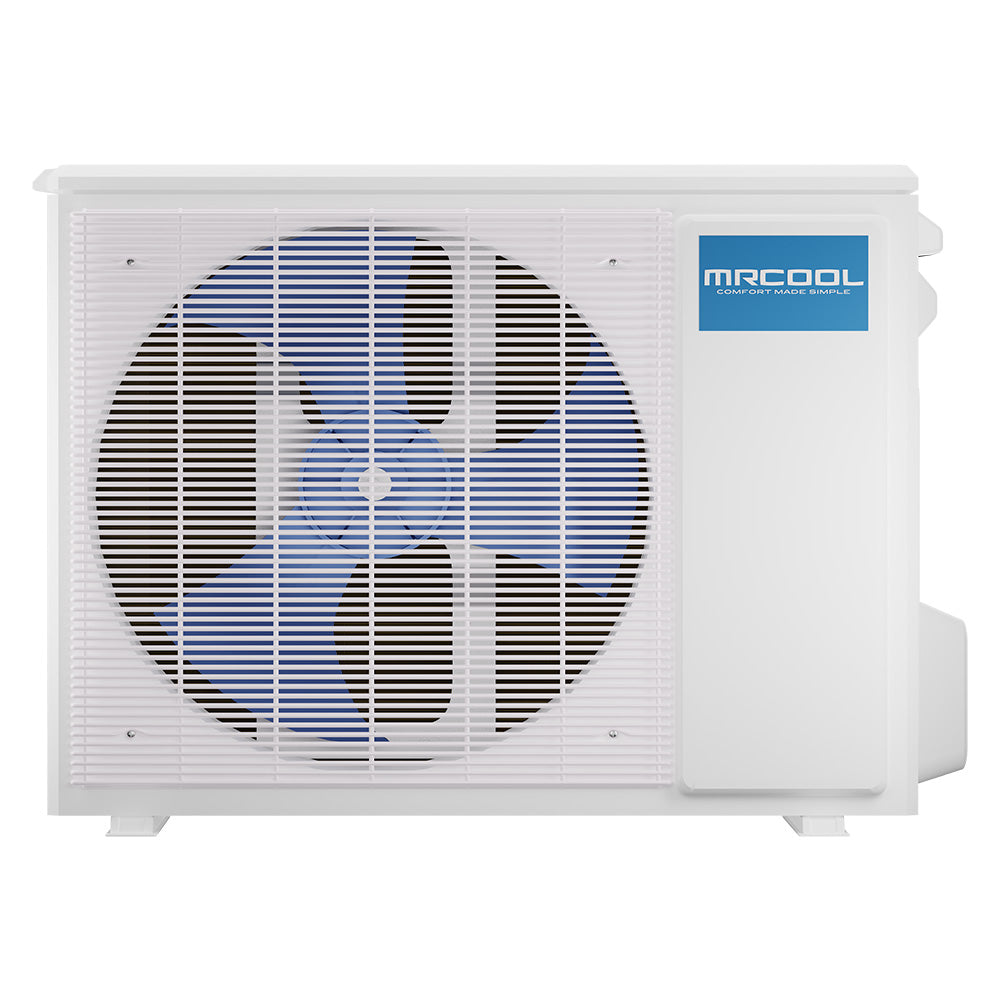

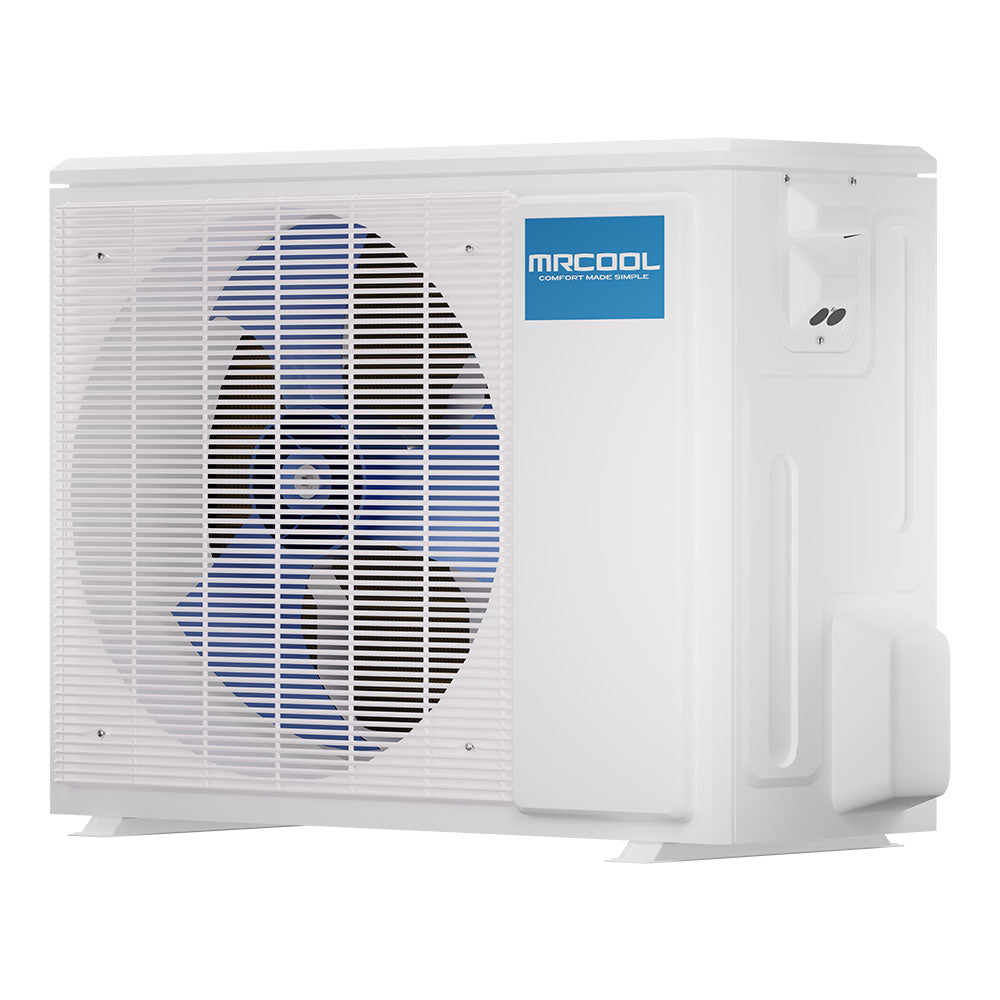

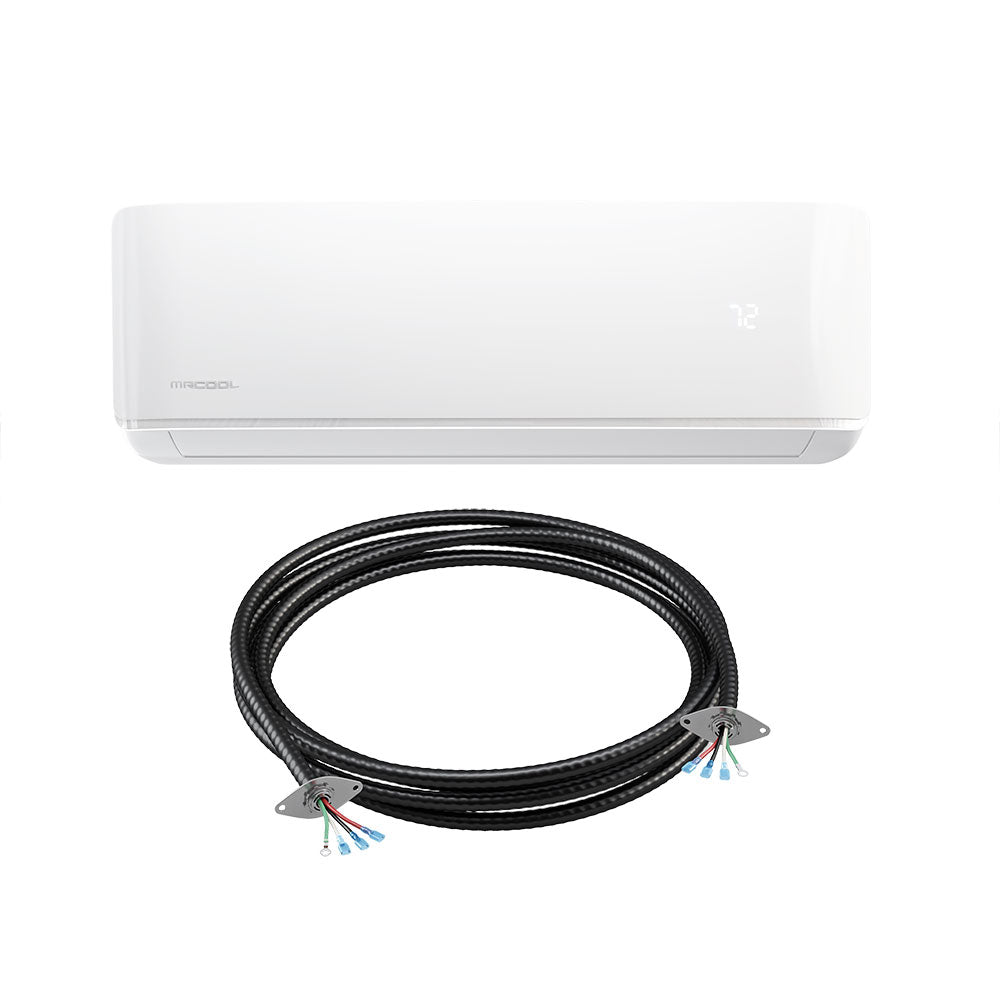

MRCOOL® E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz DIY-24-HP-WM-230C25
Original price was: $2,999.00.$1,626.00Current price is: $1,626.00.
Save $1,373.00Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 22 - Oct 25
MRCOOL® E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz DIY-24-HP-WM-230C25
Product Description

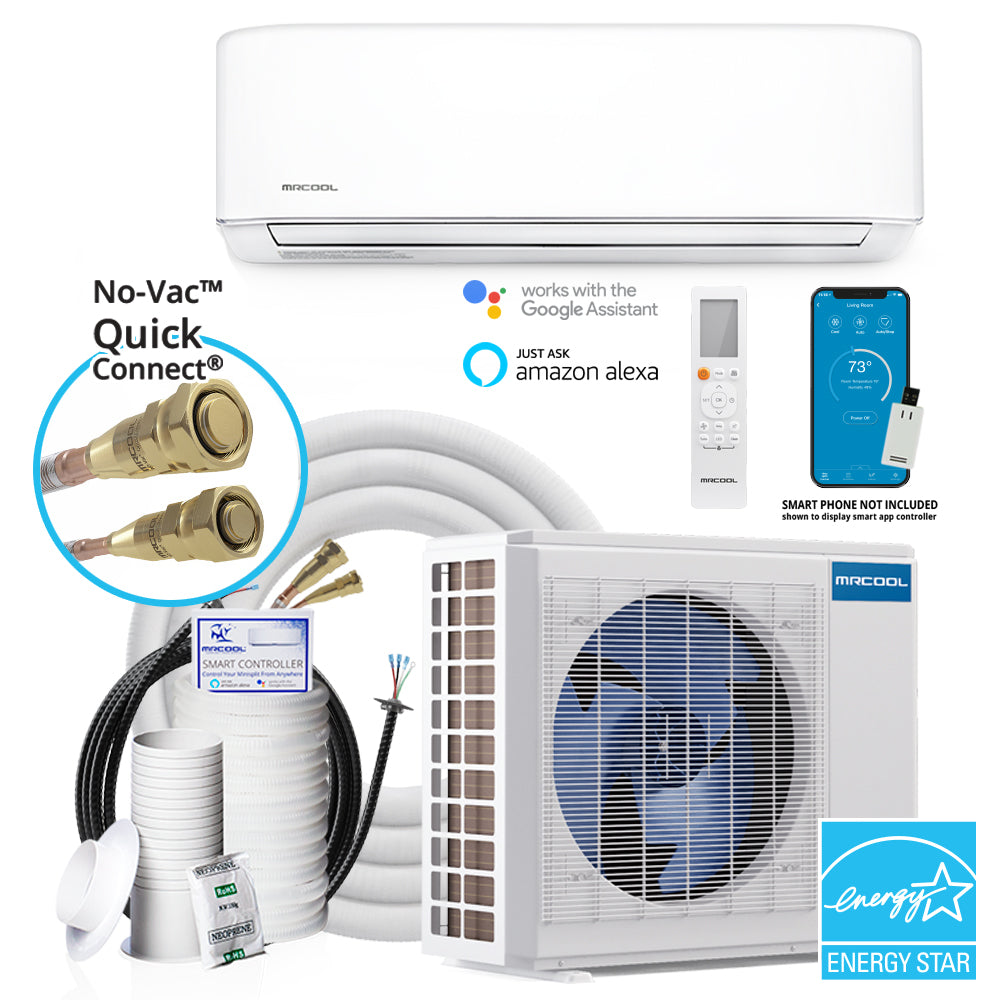

The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
- Up to 20.5 SEER2

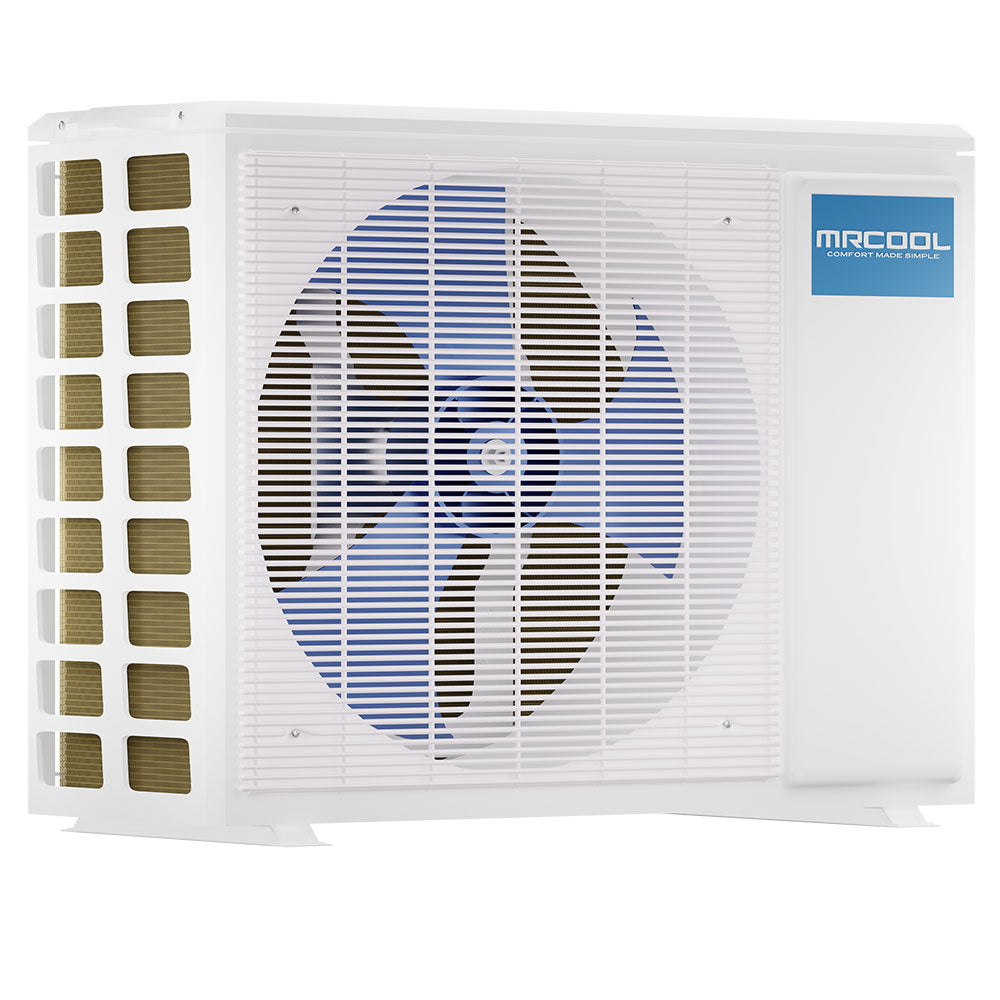

- Gold Fin® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specification
- SEER 20.5
- SEER2 20.5
- EER 12.5
- EER2 12.5
- COP 47 3.15
- HSPF hspf4/hspf5 : 10.5/9
- HSPF2 hspf2-4/hspf2-5 : 9.2/7.1
- CFM 605.88/505.88/364.71
- TONNAGE 2
- COOLING CAPACITY 23000BTU
- HEATING CAPACITY 25000 BTU
- VOLTAGE 208-230 V
- PHASE 1
- CYCLE 60 Hz
- MAX FUSE BREAKER 35 A
- MIN CIRCUIT AMPACITY 22 A
- COLOR White
- COLOR FAMILY White
- RATED LOAD 0.45 A
- MAX COVERAGE AREA Up to 1000 sqft
- ZONE CAPACITY 1
- REFRIGERANT TYPE R-410A
- REFRIGERANT VOLUME 81.13 oz
- DECIBEL RATING 48.5/43.5/33
- DECIBEL RATING LOW 33 dBA
- DECIBEL RATING HIGH 48.5 dBA
- OSCILLATION 4-W
- INVERTER Yes
- MIN AMBIENT COOL -13F – 122F
- MIN AMBIENT HEAT -13F – 75F
- LINE SET LENGTH 25ft
- MAX LINESET LENGTH 98.42 ft
- LIQUID LINE SIZE 3/8 in
- SUCTION LINE SIZE 5/8 in
- COMPRESSOR MOTOR TYPE Twin-Rotary
- CONDENSER FAN MOTOR RPM 850/750/700
- BLOWER MOTOR RPM 1200/1000/700
- AUXILIARY HEATER INCLUDED No
- AUXILIARY HEATER AVAILABLE No
- FAN ONLY OPTION Yes
- QUIET MODE Yes
- AUTO COOL Yes
- WIFI COMPATIBILITY Yes
- APP COMPATIBILITY Yes
- WORKS WITH IOS Yes
- WORKS WITH ANDROID Yes
- REMOTE CONTROL INCLUDED Yes
- UL LISTED Yes
- ENERGY STAR CERTIFIED Yes
- AHRI CERTIFIED Yes
- REGISTERED WARRANTY Limited Lifetime Compressor
- BASE WARRANTY 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY 5-year Parts
- REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
- BASE COMPRESSOR WARRANTY 7-year Compressor
- HAS BATTERIES Yes
- CONTAINS ELECTRONICS Yes
- CONTAINS CHEMICALS Yes
- CONTAINS AEROSOL Yes
- CONTAINS COMPRESSED GAS Yes
- PROPOSITION 65 WARNING Yes
- RESTRICTED STATES GU;PR;VI
Weight and Dimension
- CONDENSER DEPTH 16.14 in
- CONDENSER HEIGHT 31.89 in
- CONDENSER WIDTH 37.24 in
- CONDENSER WEIGHT 125.22 lbs
- AIR HANDLER DEPTH 8.90 in
- AIR HANDLER HEIGHT 13.19 in
- AIR HANDLER WIDTH 42.52 in
- AIR HANDLER WEIGHT 35.27 lbs
