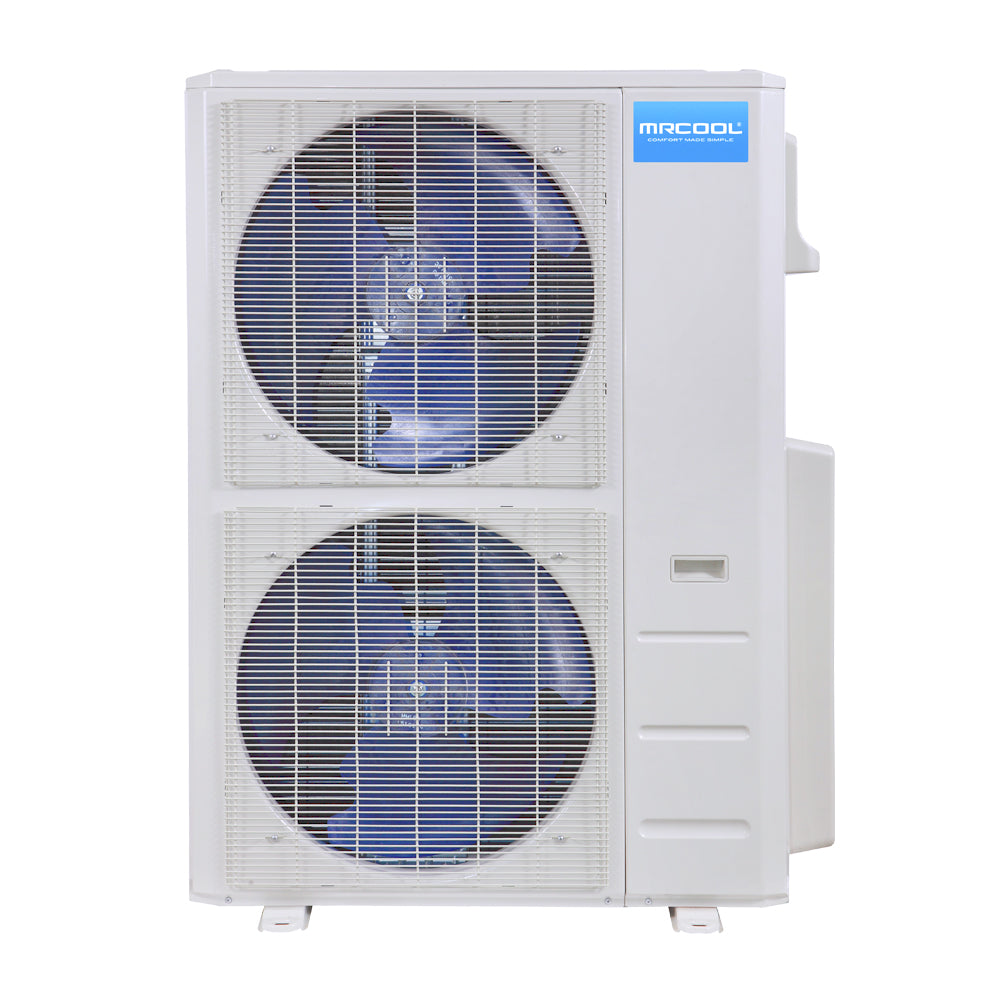

MRCOOL DIY 4th Gen Multi-Zone 5-Zone Ductless Heat Pump Condenser DIY-MULTI5-48HP230C
Original price was: $3,299.00.$1,829.00Current price is: $1,829.00.
Save $1,470.00Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 21 - Oct 24
MRCOOL DIY 4th Gen Multi-Zone 5-Zone Ductless Heat Pump Condenser DIY-MULTI5-48HP230C
Product Description
Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specification
- SEER 20.5
- EER 11
- HSPF hspf4/hspf5 : 11/8.5
- CFM 4500
- COOLING CAPACITY 48000 BTU
- HEATING CAPACITY 48000 BTU
- VOLTAGE 208-230 V
- PHASE 1
- CYCLE 60 Hz
- MAX FUSE BREAKER 60A
- MIN CIRCUIT AMPACITY 40 A
- COLOR White
- COLOR FAMILY White
- ZONE CAPACITY Up to 5
- REFRIGERANT TYPE R-410A
- REFRIGERANT VOLUME 162 oz
- DECIBEL RATING 61.5 dBA
- INVERTER Yes
- MIN AMBIENT COOL 5F ~ 122F
- MIN AMBIENT HEAT 5F ~ 75.2F
- MAX LINESET LENGTH 246.06 ft TOTAL
- LIQUID LINE SIZE 1/4in
- SUCTION LINE SIZE 3/8in+1/2in
- COMPRESSOR MOTOR TYPE Rotary
- CONDENSER FAN MOTOR RPM 900/850/800/750
- WIFI COMPATIBILITY Yes
- APP COMPATIBILITY Yes
- WORKS WITH IOS Yes
- WORKS WITH ANDROID Yes
- REGISTERED WARRANTY Limited Lifetime Compressor
- BASE WARRANTY 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY 5-year Parts
- REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
- BASE COMPRESSOR WARRANTY 7-year Compressor
- CONTAINS ELECTRONICS Yes
- CONTAINS CHEMICALS Yes
- CONTAINS AEROSOL Yes
- CONTAINS COMPRESSED GAS Yes
- PROPOSITION 65 WARNING Yes
Weight and Dimension
- NET DEPTH 16.34 in
- NET HEIGHT 52.48 in
- NET WIDTH 37.48 in
- NET WEIGHT 222.89 lbs
- GROSS DEPTH 19.49 in
- GROSS HEIGHT 54.33 in
- GROSS WIDTH 43.11 in
- GROSS WEIGHT 254.41 lbs
