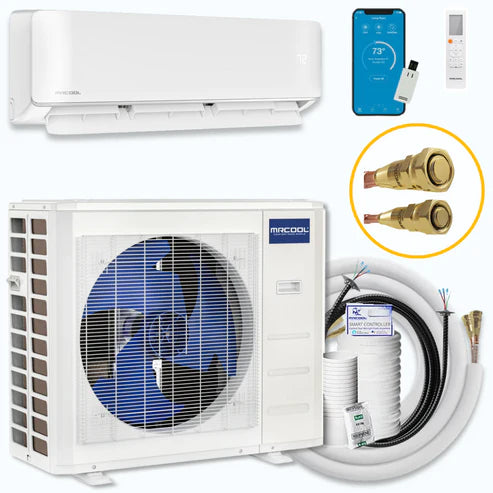

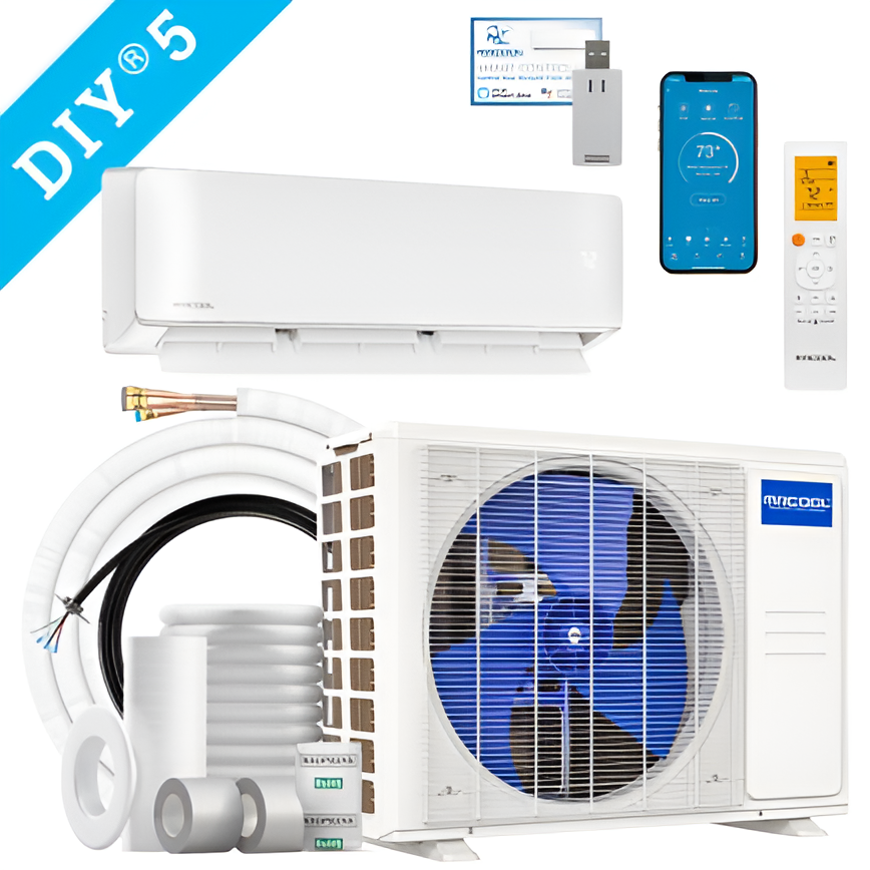

MRCOOL® DIY 5th 12K Generation Mini-split Air Handler & Condenser 115V with 25ft DIY Quick Connect® Line Set and DIYPRO® cable
Original price was: $2,999.00.$1,533.00Current price is: $1,533.00.
Save $1,466.00Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 21 - Oct 24
MRCOOL® DIY 5th 12K Generation Mini-split Air Handler & Condenser 115V with 25ft DIY Quick Connect® Line Set and DIYPRO® Cable DIY-12-HP-WM-115D25-O
Product Description

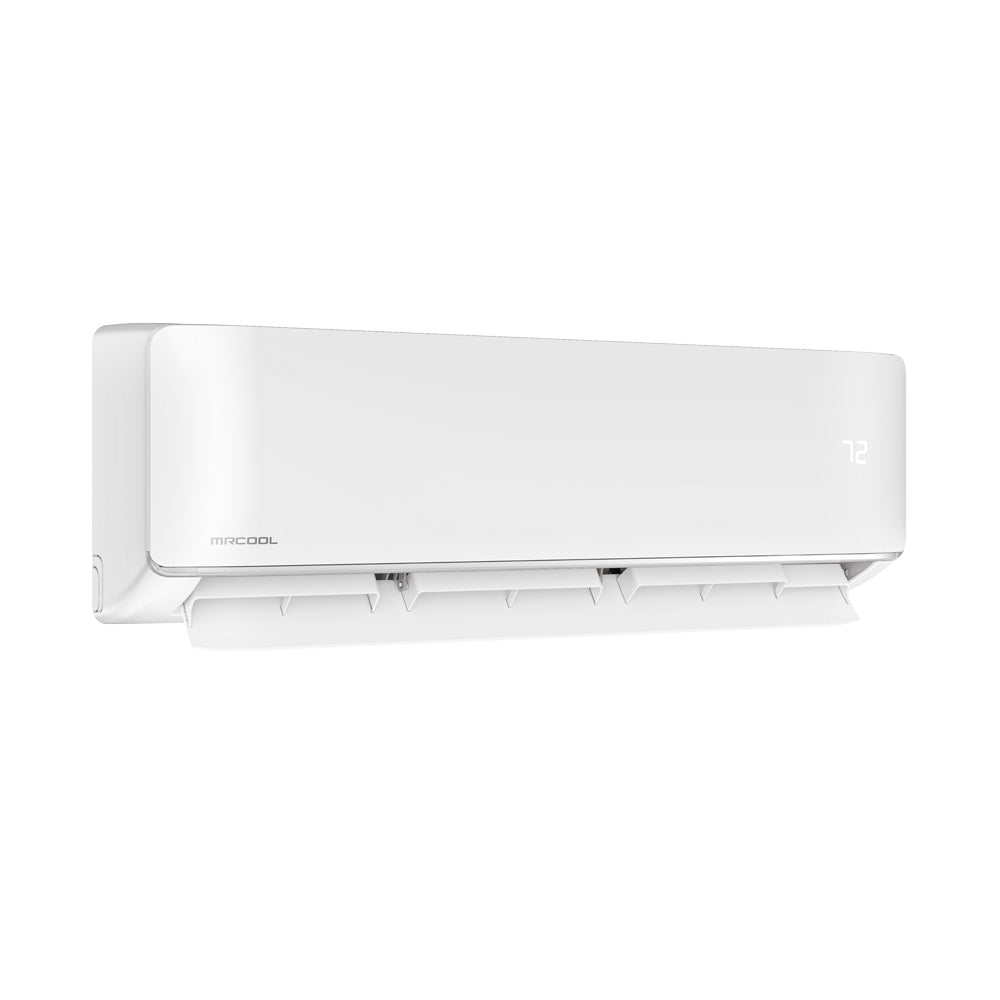

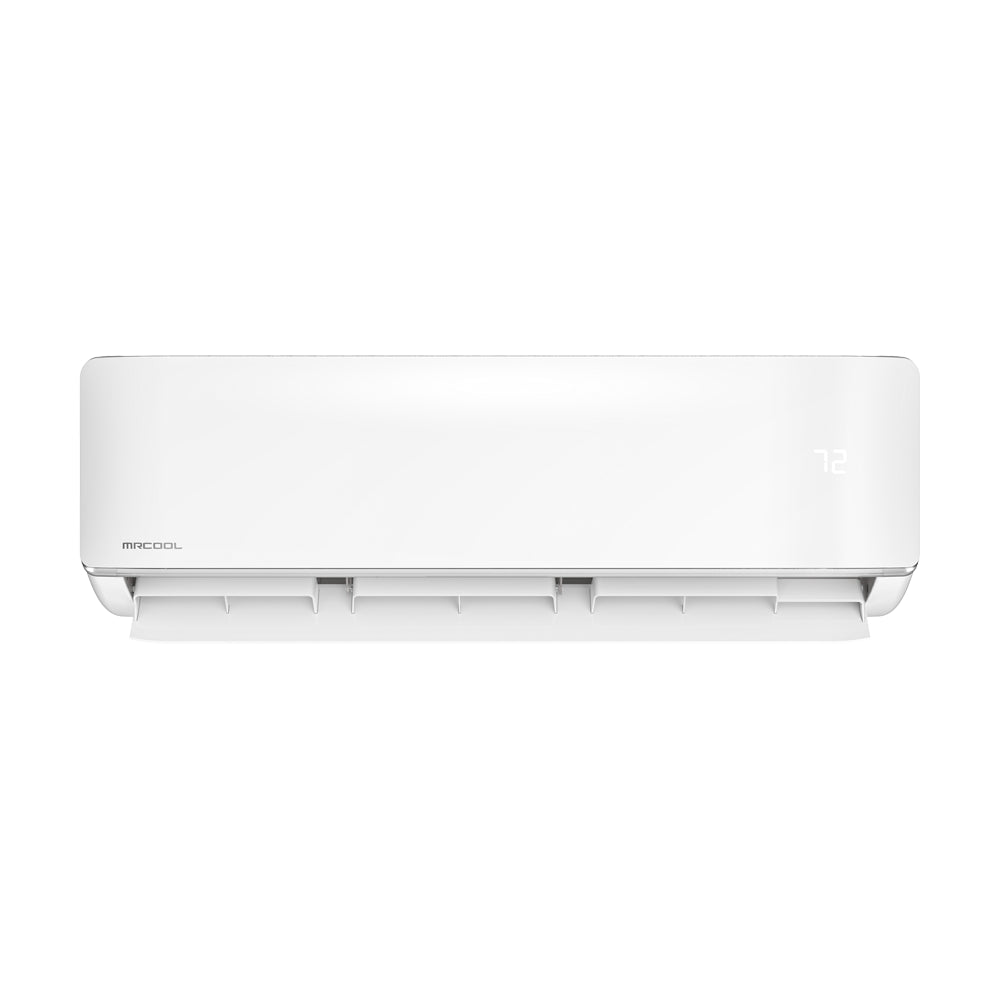

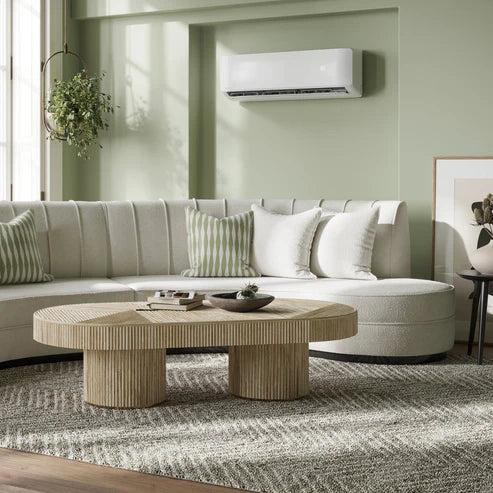

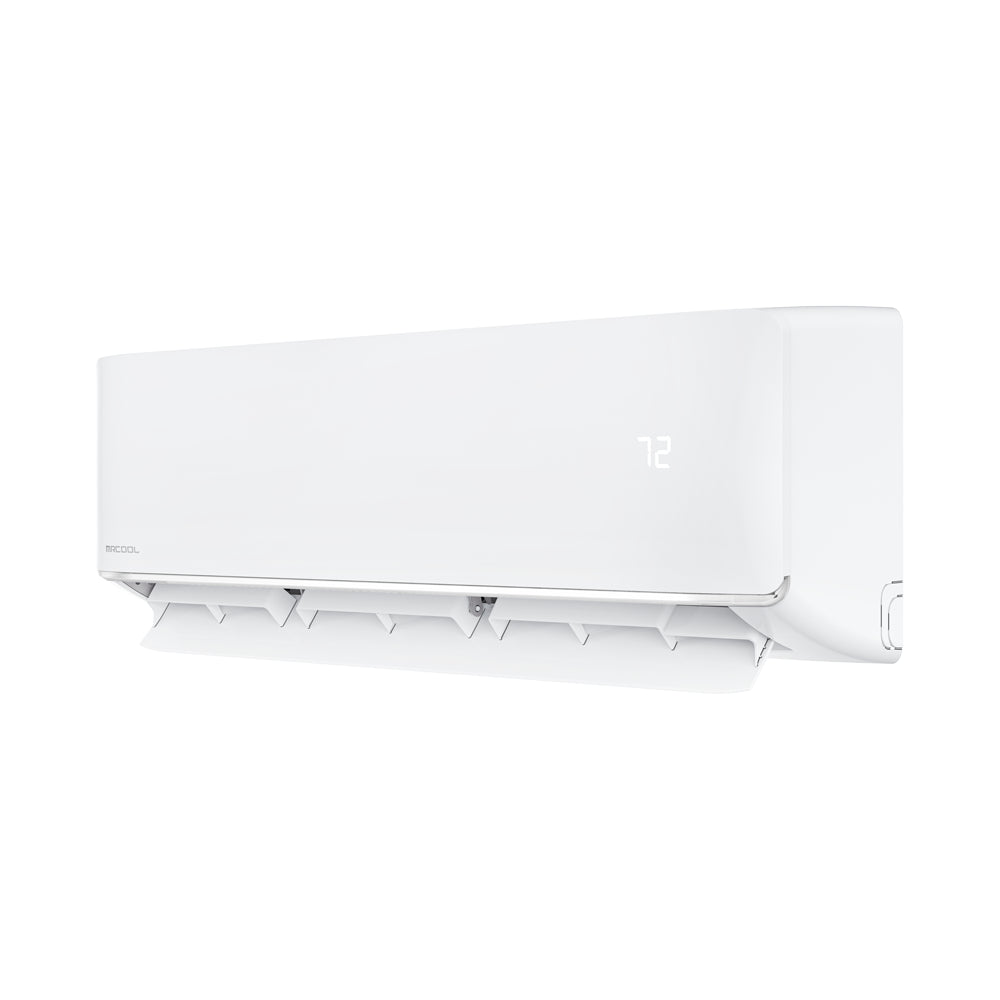

DIY 5th Generation 12k Mini-split Air Handler 115v with DIYPRO® Cable
Upgrade your space with the 5th Generation MRCOOL® DIY® 12K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler. This system is designed for straightforward, tool-free installation, with no special skills required, and provides efficient heating and cooling for areas up to 550 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, filled with R-454B refrigerant, eliminates the need for vacuuming, saving you time, effort, and installation costs. Plus, the included DIYPRO® cable enhances durability by removing the need for electrical conduit, protecting against outdoor elements and wildlife. Take control your way—whether with the wireless remote, the SmartHVAC app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser also provides enhanced corrosion resistance, making it an excellent choice for coastal environments. Designed with your comfort in mind, the system’s wireless remote features Follow Me technology, allowing the air handler to adjust based on the remote’s location for personalized comfort. Dry Mode adds another layer of convenience by reducing humidity and preventing excess condensation. With industry-leading warranties, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, you can trust in long-lasting performance. Experience an easier installation, smart technology, and year-round comfort with the 5th Generation MRCOOL® DIY®.
Features
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®’s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specification
| TONNAGE | 1 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 550 sqft |
| DECIBEL RATING LOW (DBA) | 18 |
| DECIBEL RATING HIGH (DBA) | 43 |
| NUMBER OF SPEEDS | 5 |
| OSCILLATION | Yes |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| FILTER TYPE | Reusable |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
Weight and Dimension
| NET DEPTH (IN) | 7.44 |
| NET HEIGHT (IN) | 11.69 |
| NET WIDTH (IN) | 31.57 |
| NET WEIGHT (LBS) | 24.91 |
| GROSS DEPTH (IN) | 16.34 |
| GROSS HEIGHT (IN) | 14.37 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 35.49 |

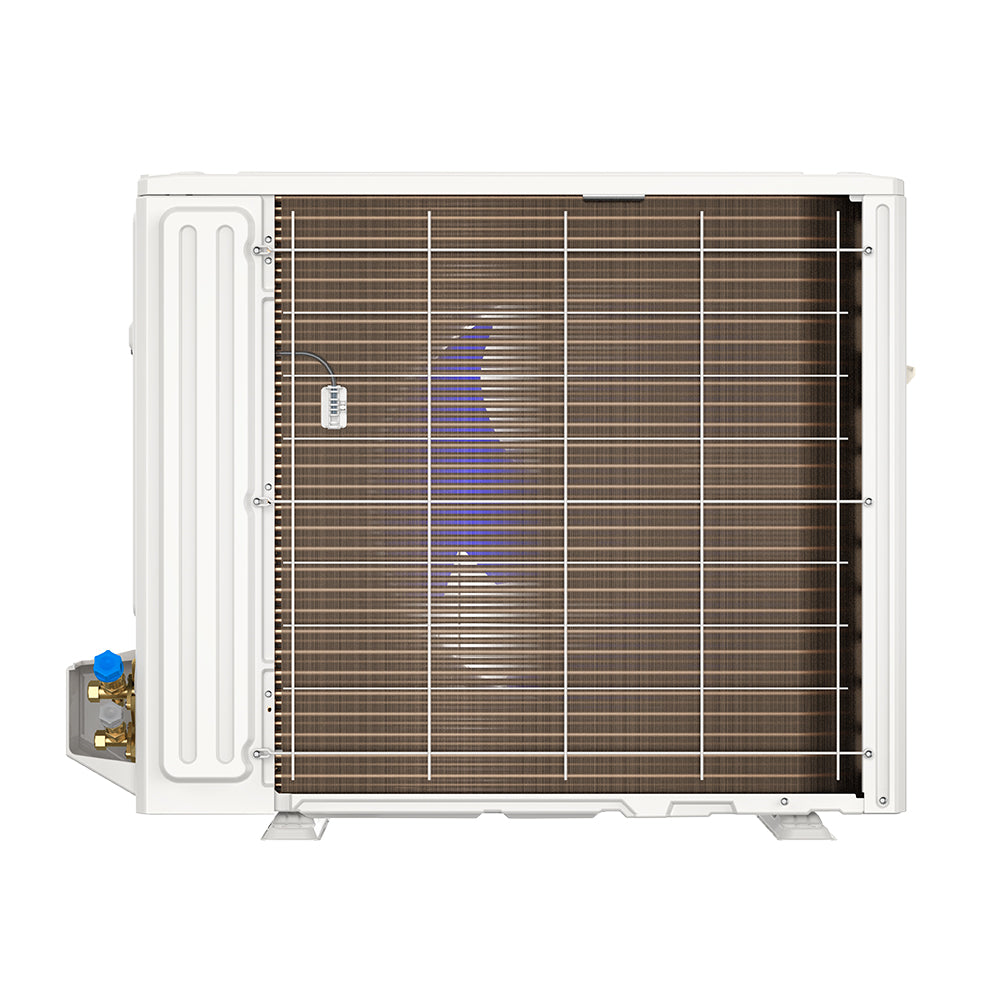

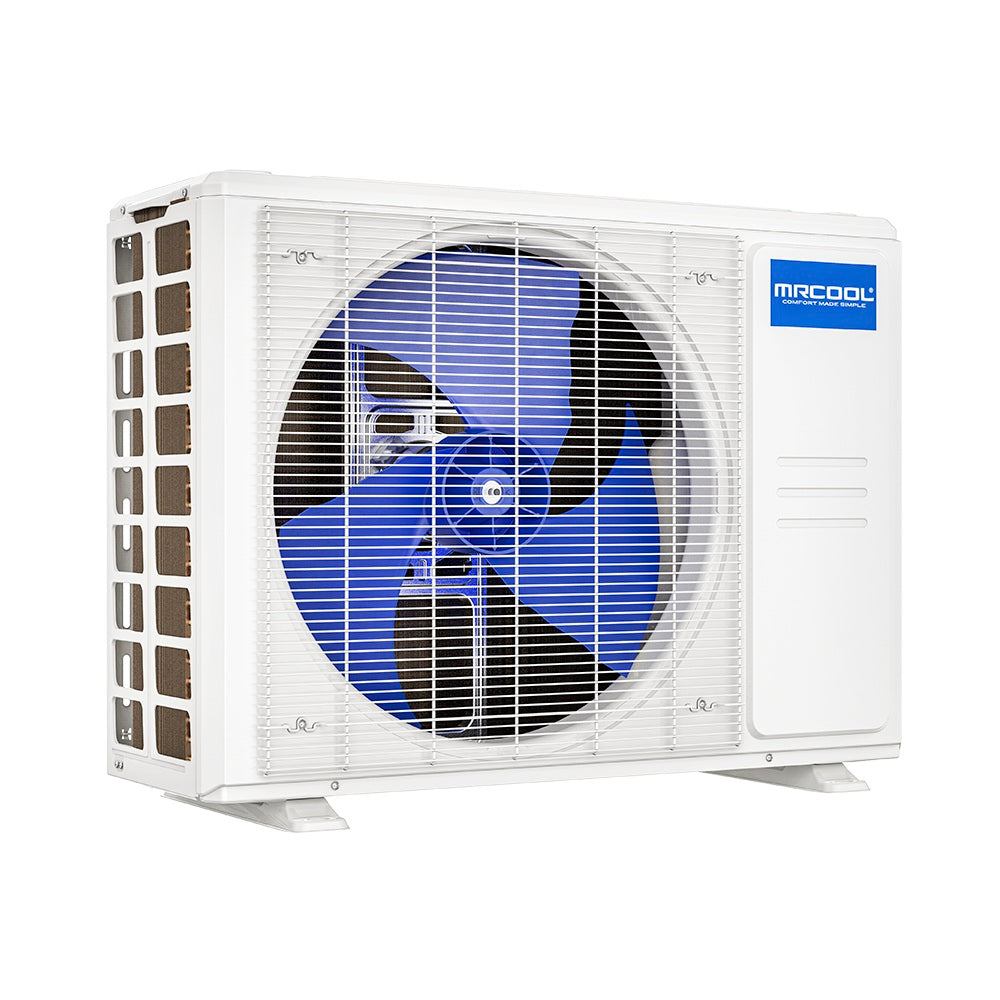

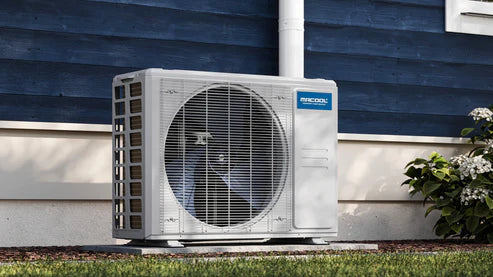

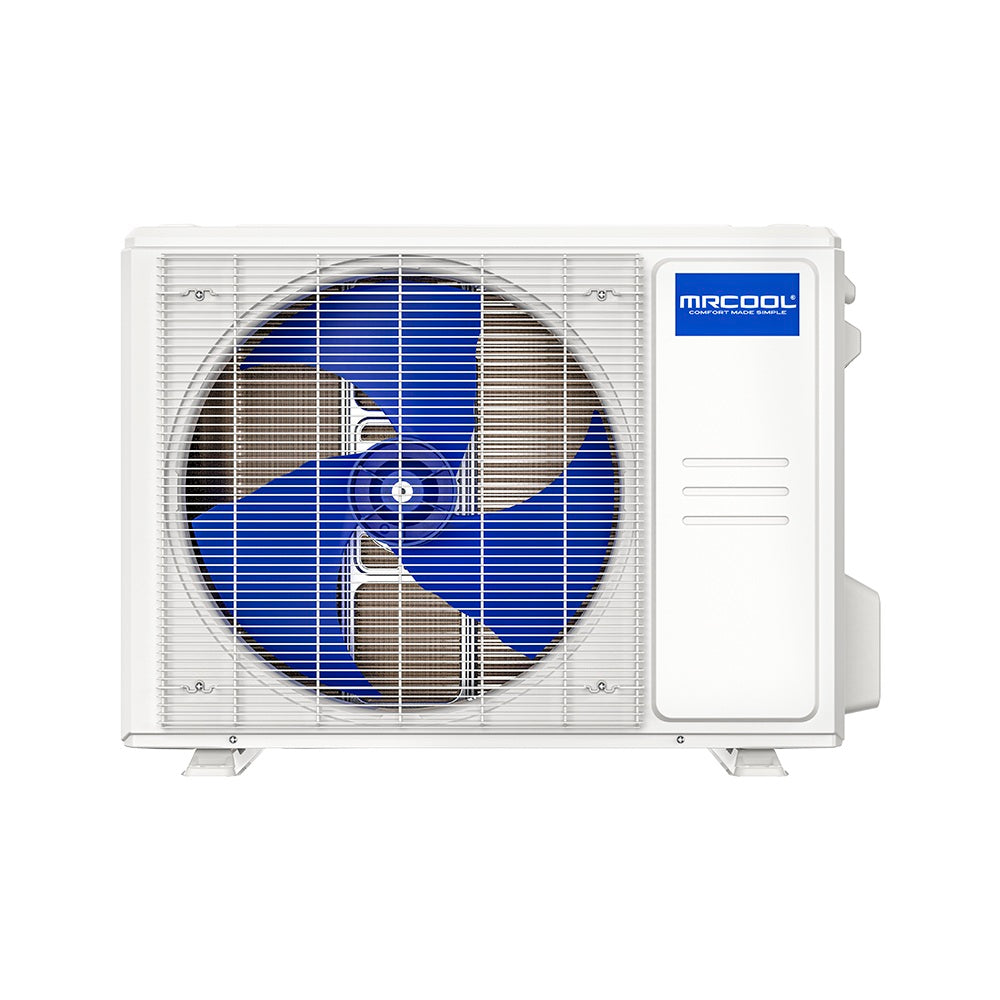

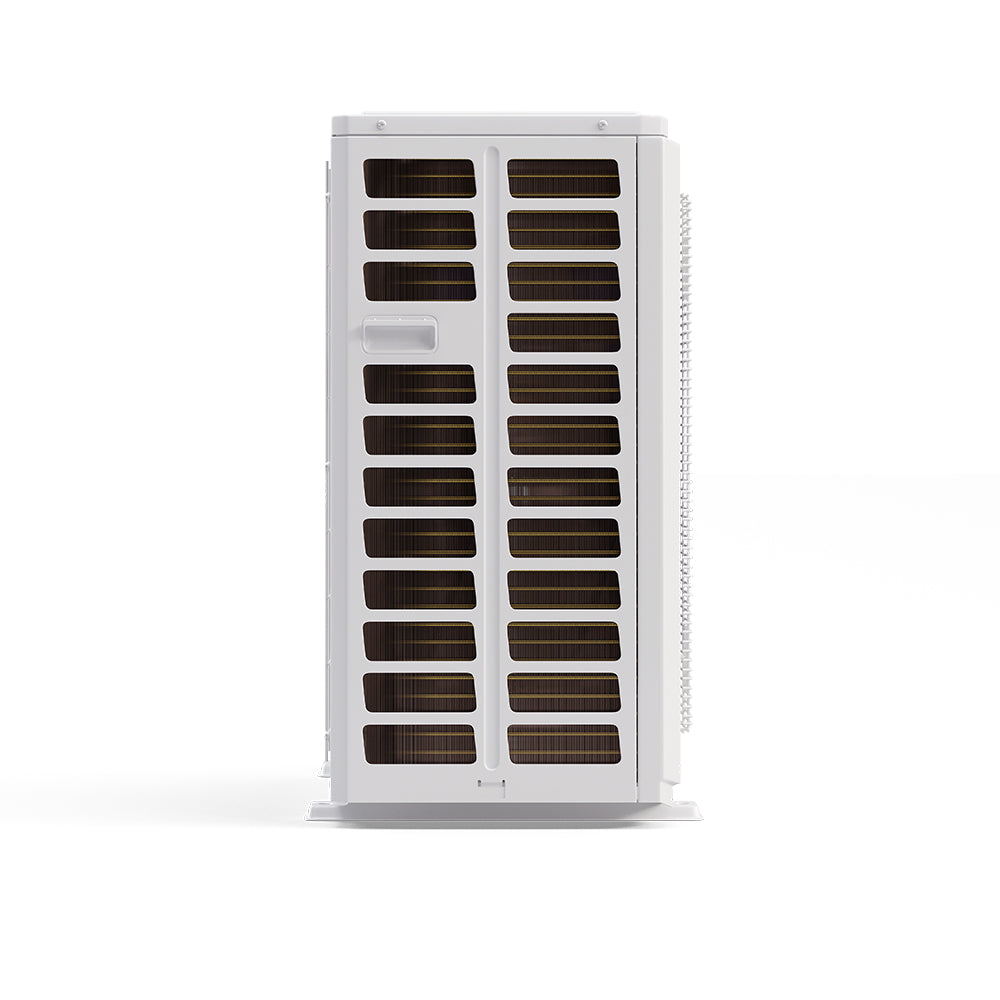

DIY 5th Generation 12k Mini-Split Condenser 115V with 25ft DIY Quick Connect® Line Set
The 5th Generation 5th Generation MRCOOL® DIY® 12k BTU 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes home climate control easier than ever. Designed for effortless installation, this system requires no special tools or professional experience and is ideal for spaces between 350-500 sq. ft. With a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, setup is simple and eliminates the need for vacuuming. The included DIYPRO® cable enhances durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork damage. Controlling your comfort is seamless with multiple options, including the included remote, the SmartHVAC app for Apple and Android devices, or hands-free commands via Amazon Alexa and Google Assistant. Additionally, the Gold Fin Condenser provides exceptional corrosion resistance, making it a great choice for coastal environments. Equipped with a variety of features, this system enhances efficiency and comfort. The Timer function helps manage energy use, while Auto mode maintains your desired temperature without constant adjustments. After a power outage, the system automatically resumes previous settings, and the anti-mildew function reduces condensation buildup in the air handler. Built for longevity, the 5th Generation MRCOOL® DIY® Mini Split offers an industry-leading warranty, including a limited lifetime warranty, plus a 7-year compressor and 5-year parts warranty. Combining advanced technology, user-friendly operation, and long-term reliability, this system is designed for hassle-free home comfort.
Features
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable,
- eliminating the need for electrical conduit.
Keep the included remote close by, and MRCOOL DIY®’s Follow Me® function will track the air temperature around you to ensure maximum comfort. - The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specification
| SEER2 | 23.5 |
| EER2 | 12.5 |
| HSPF2-4 | 10.2 |
| HSPF2-5 | 7.6 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 30.34 |
| DECIBEL RATING (DBA) | 54 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
Weight and Dimension
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 83.11 |
| GROSS DEPTH (IN) | 16.54 |
| GROSS HEIGHT (IN) | 27.56 |
| GROSS WIDTH (IN) | 36.22 |
| GROSS WEIGHT (LBS) | 65.48 |
