MRCOOL E Star DIY 4th Gen 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz DIY-12-HP-WM-115C25
Original price was: $1,999.00.$1,130.00Current price is: $1,130.00.
Save $869.00Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 22 - Oct 25
MRCOOL E Star DIY 4th Gen 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz DIY-12-HP-WM-115C25
Product Description

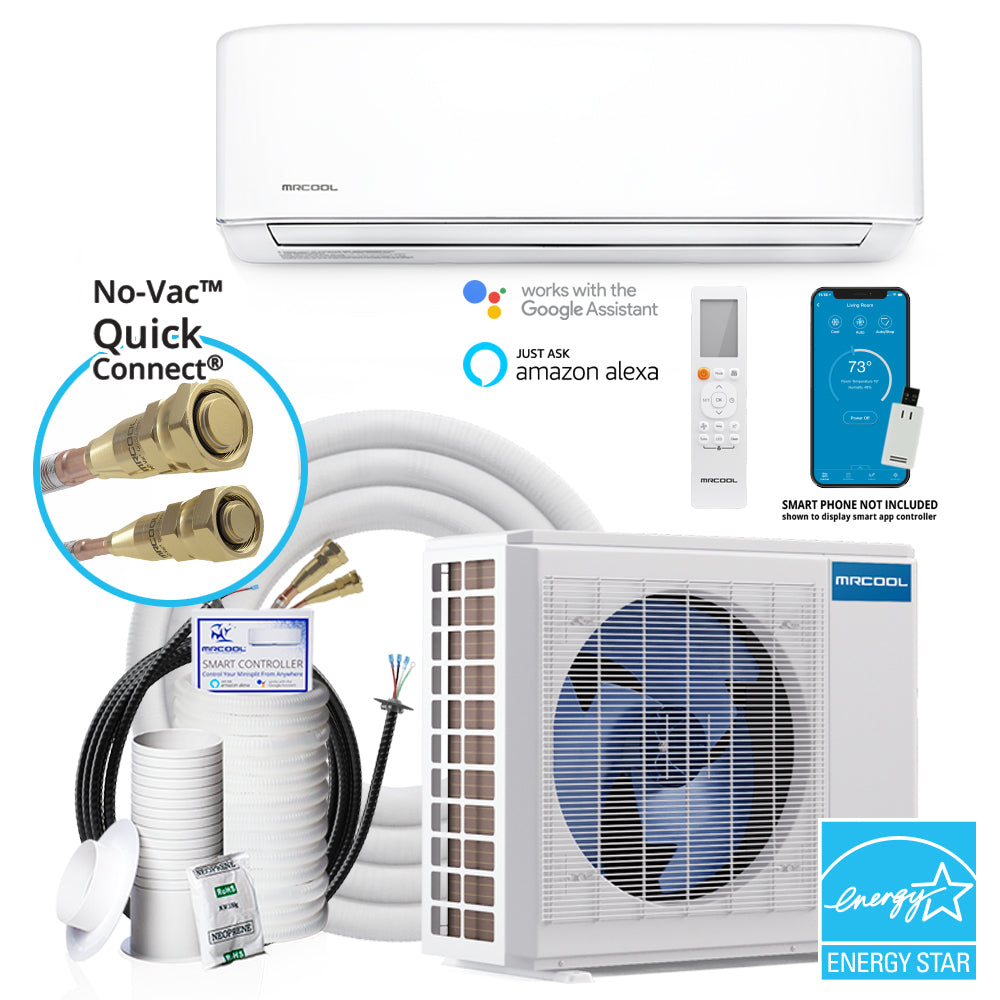

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL® DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MrCool DIY system also includes many features that make it stand out among its competitors.The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MrCool mini split is the only system on the market to offer a limited lifetime compressor warranty.
- Up to 22.5 SEER2
- Gold Fin® condenser: corrosion-resistant coastal living – don’t worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specification
- SEER 22
- SEER2 22.5
- EER 12.5
- EER2 12.5
- COP 47 3.36
- HSPF hspf4/hspf5 : 11.5/9
- HSPF2 hspf2-4/hspf2-5 : 9/7
- CFM 305.88/211.76/147.06
- TONNAGE 1
- COOLING CAPACITY 12000 BTU
- HEATING CAPACITY 12000 BTU
- VOLTAGE 115 V
- PHASE 1
- CYCLE 60 Hz
- MAX FUSE BREAKER 25 A
- MIN CIRCUIT AMPACITY 19 A
- COLOR White
- COLOR FAMILY White
- RATED LOAD 0.53 A
- MAX COVERAGE AREA Up to 500 sqft
- ZONE CAPACITY 1
- REFRIGERANT TYPE R-410A
- REFRIGERANT VOLUME 38.10 oz
- DECIBEL RATING 37/31/23.5
- DECIBEL RATING LOW 23.5 dBA
- DECIBEL RATING HIGH 37 dBA
- OSCILLATION 4-W
- INVERTER Yes
- MIN AMBIENT COOL -13F – 122F
- MIN AMBIENT HEAT -13F – 75F
- LINE SET LENGTH 25ft
- MAX LINESET LENGTH 82.02 ft
- LIQUID LINE SIZE 1/4 in
- SUCTION LINE SIZE 1/2 in
- COMPRESSOR MOTOR TYPE Rotary
- CONDENSER FAN MOTOR RPM 850/600
- BLOWER MOTOR RPM 1100/850/700
- AUXILIARY HEATER INCLUDED No
- AUXILIARY HEATER AVAILABLE No
- FAN ONLY OPTION Yes
- QUIET MODE Yes
- AUTO COOL Yes
- WIFI COMPATIBILITY Yes
- APP COMPATIBILITY Yes
- WORKS WITH IOS Yes
- WORKS WITH ANDROID Yes
- REMOTE CONTROL INCLUDED Yes
- UL LISTED Yes
- ENERGY STAR CERTIFIED Yes
- AHRI CERTIFIED Yes
- REGISTERED WARRANTY Limited Lifetime Compressor
- BASE WARRANTY 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY 5-year Parts
- REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
- BASE COMPRESSOR WARRANTY 7-year Compressor
- HAS BATTERIES Yes
- CONTAINS ELECTRONICS Yes
- CONTAINS CHEMICALS Yes
- CONTAINS AEROSOL Yes
- CONTAINS COMPRESSED GAS Yes
- PROPOSITION 65 WARNING Yes
- RESTRICTED STATES GU;PR;VI
Weight and Dimension
- CONDENSER DEPTH 11.93 in
- CONDENSER HEIGHT 21.85 in
- CONDENSER WIDTH 30.12 in
- CONDENSER WEIGHT 65.70 lbs
- AIR HANDLER DEPTH 7.44 in
- AIR HANDLER HEIGHT 11.69 in
- AIR HANDLER WIDTH 31.57 in
- AIR HANDLER WEIGHT 24.03 lbs
