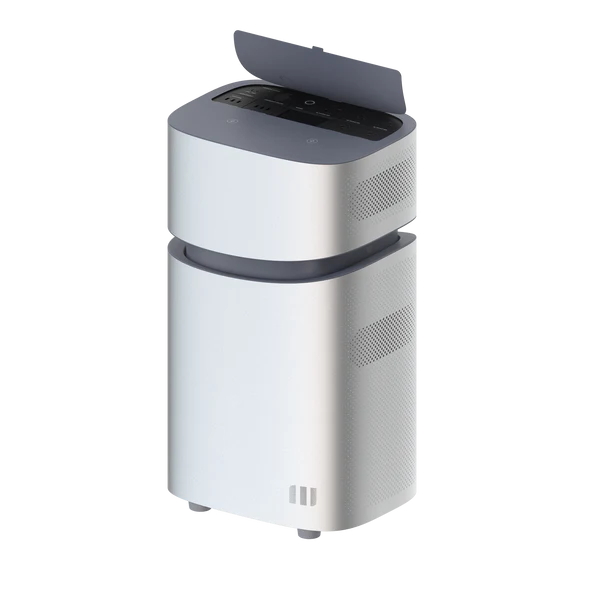

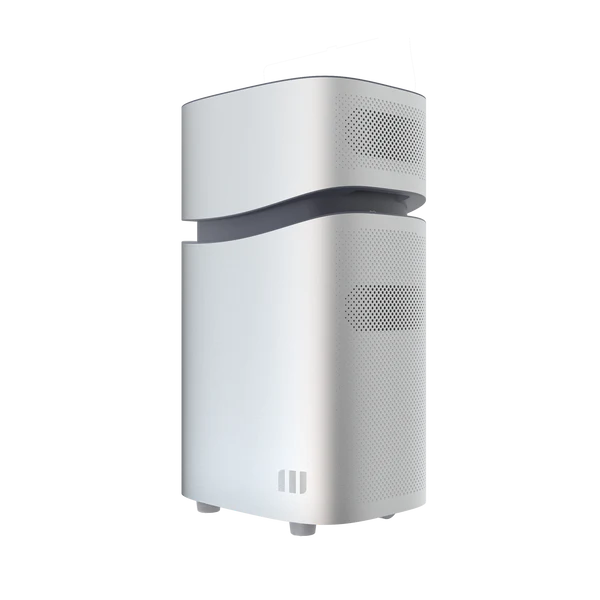

Mango Power Union Home and Portable Power Station
Original price was: $7,999.00.$5,069.00Current price is: $5,069.00.
Save $2,930.00Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 22 - Oct 25

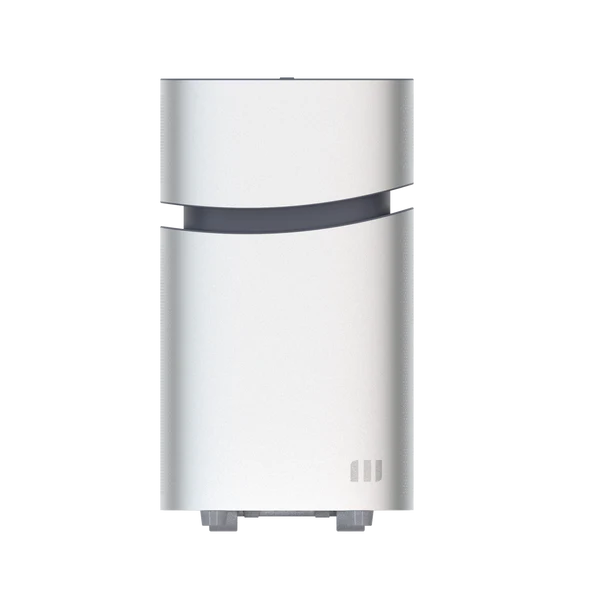

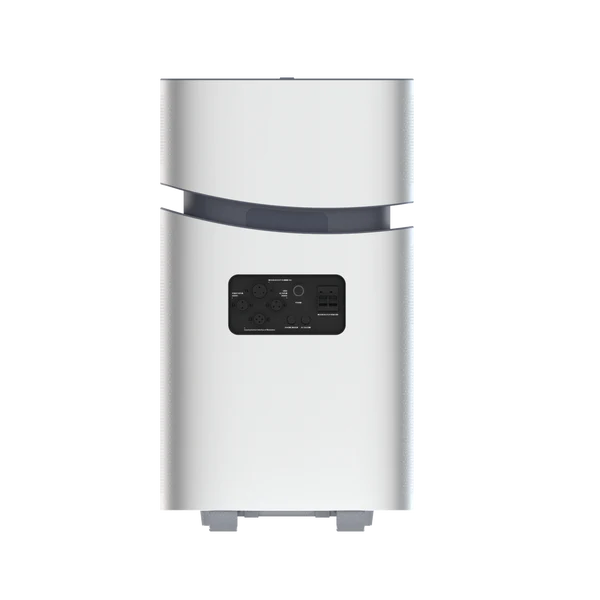

Mango Power Union Home and Portable Power Station
Product Description
The Mango Power Union is a revolutionary new product that combines the power of a home backup battery with the portability of a portable power station. With a massive 6.9 kWh capacity, the Mango Power Union is the world’s first integrated home and portable battery, allowing it to provide backup power for your home during a power outage, or to power your devices and appliances on the go.
The Mango Power Union is true energy independence. It has a 4000W AC output, enough to run your most important appliances and heavy equipment. Up to ten Mango Power Union units may be stacked to create a true power hub.
Mango Power Union Home and Portable Power Station
- 6.9kWh Large Battery
- 4350W Output
- Ultimate 95% Efficiency
- Detachable & Expandable
- 2.5H Fast Charging
- Mango Power Union delivers an all-in-one energy solution housed in one device

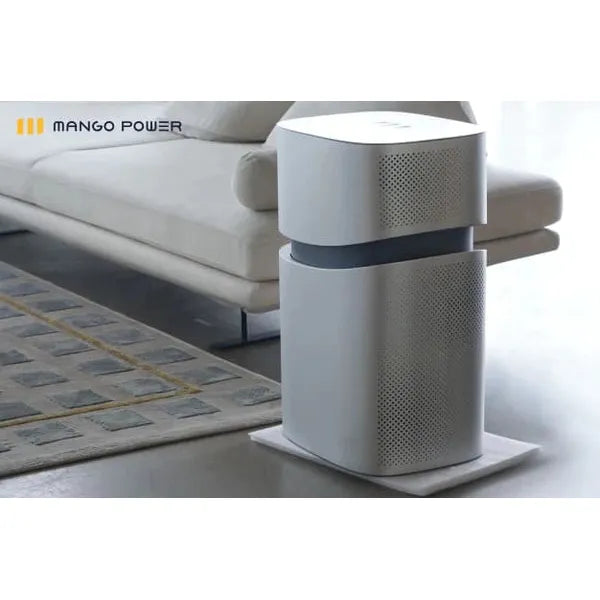

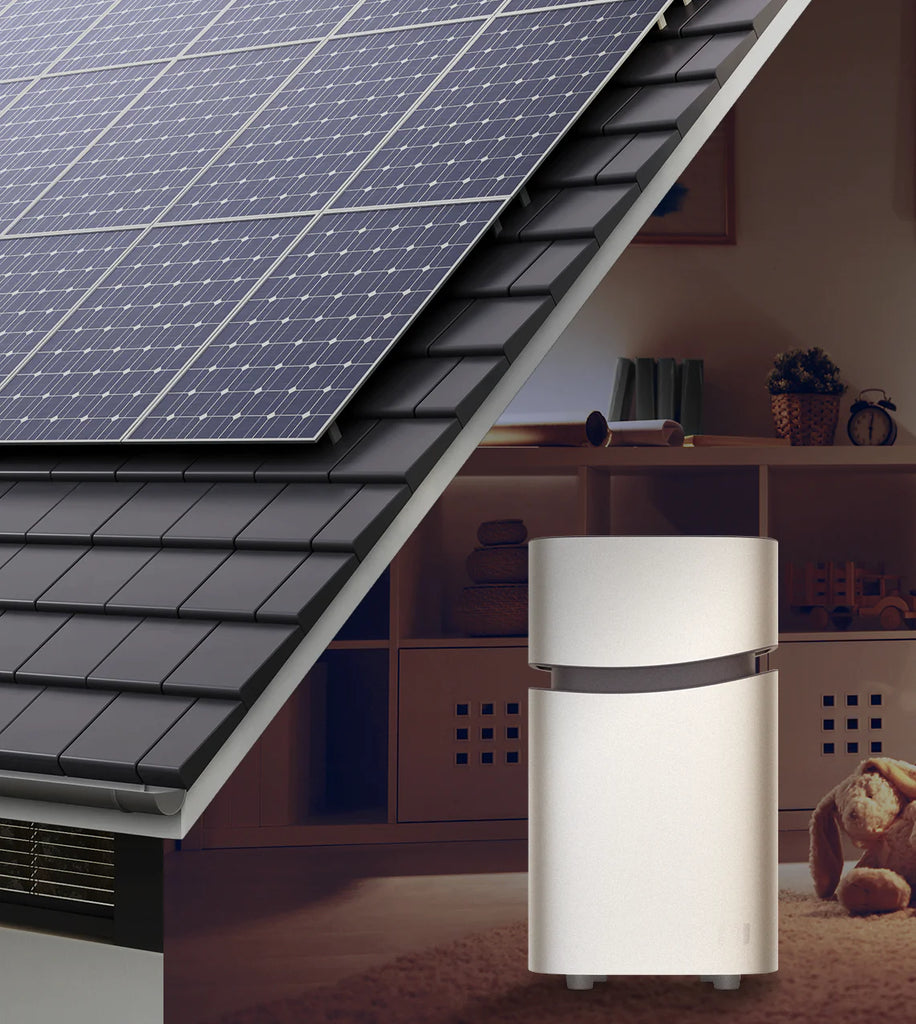

The Worlds’ First Integrated Home and Portable Battery
Unlike the average home battery or portable power stations that can only light up outdoor life, the Mango Power Union delivers an all-in-one energy solution housed in one device. The dedicated mUnion Connection combines the Power Home home battery and the Power Move portable power station into a single sleek, stunning package that swirls with ambient light and redefines aesthetics for an independent energy device. Powerfully beautiful home energy starts here.

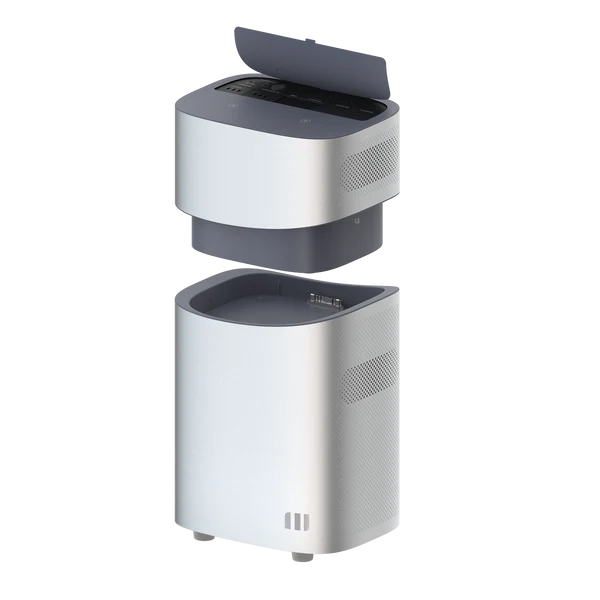

All in one design

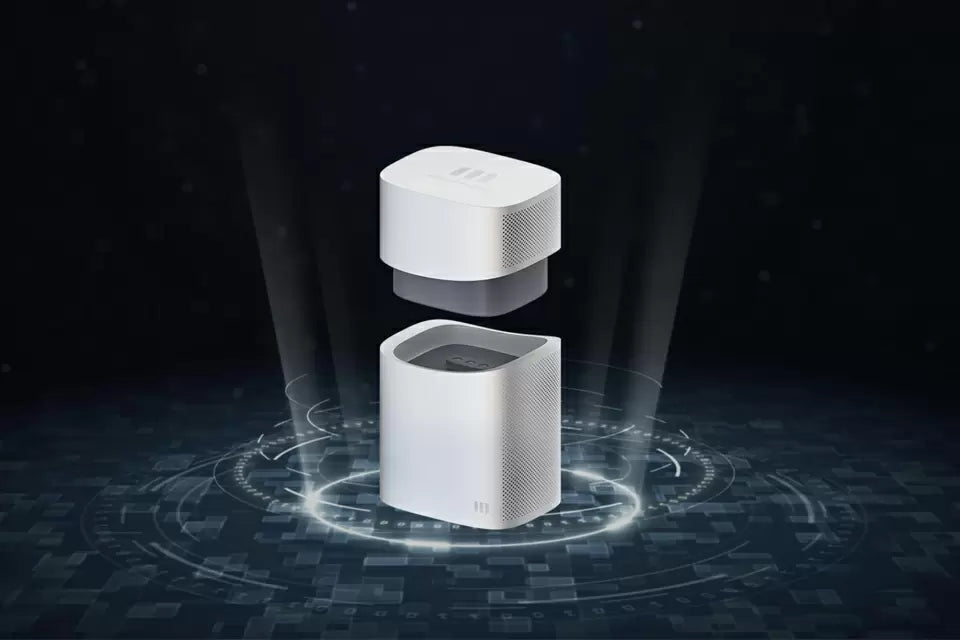

- Detachable Module Design
- 6.9kWh/4kW Home Micro-Grid
- 2.3kWh/2kW Portable Power Station

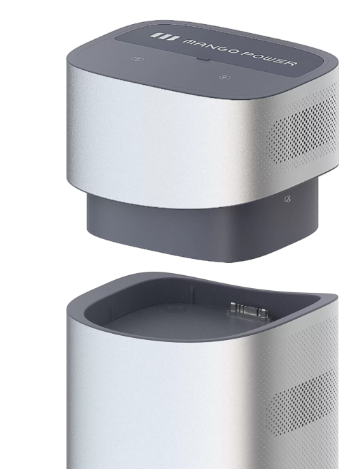

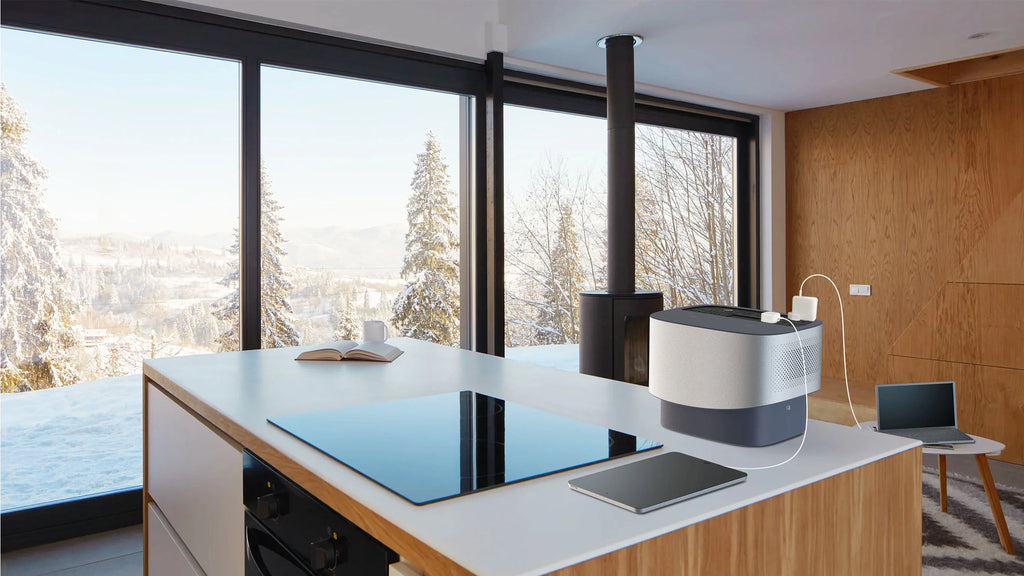

Detachable Portable Power Station
- 2.3kWh / 2kW Capacity
- Sleek, Stylish Design
- 1500W MPPT Solar & 1100W Wall Charging
- Powerful Output
The Power Move equips you with reliable portable power for camping, tailgating, off-grid events, and workshops with a 2.3kWh battery and supports 2kW AC output. It can handle surges up to 4kW from power tools, refrigerators or air conditioners, so it will power anything anywhere. It includes 18 output ports including AC, USB-C, USB-A, wireless charging and car power output so you can meet all of your various needs.
Solar and Grid Fast Charging Any Way
- 2kW MPPT Solar Charging
- 3.3kW AC Charging
- The World’s First Built-in Dual PV inverter
With the World’s first built-in dual PV inverter, the Mango Power Union support 2kW MPPT solar charging (60V-150V) and 3.3kW AC charging. You can charge the Mango Power Union with roof solar system or portable panels, whatever the situation calls for. The smart MCU (Micro Control Unit), DSP (Digital Signal Processor) and BMS (Battery Management System) algorithms keep charging fast and limit wear on the battery.

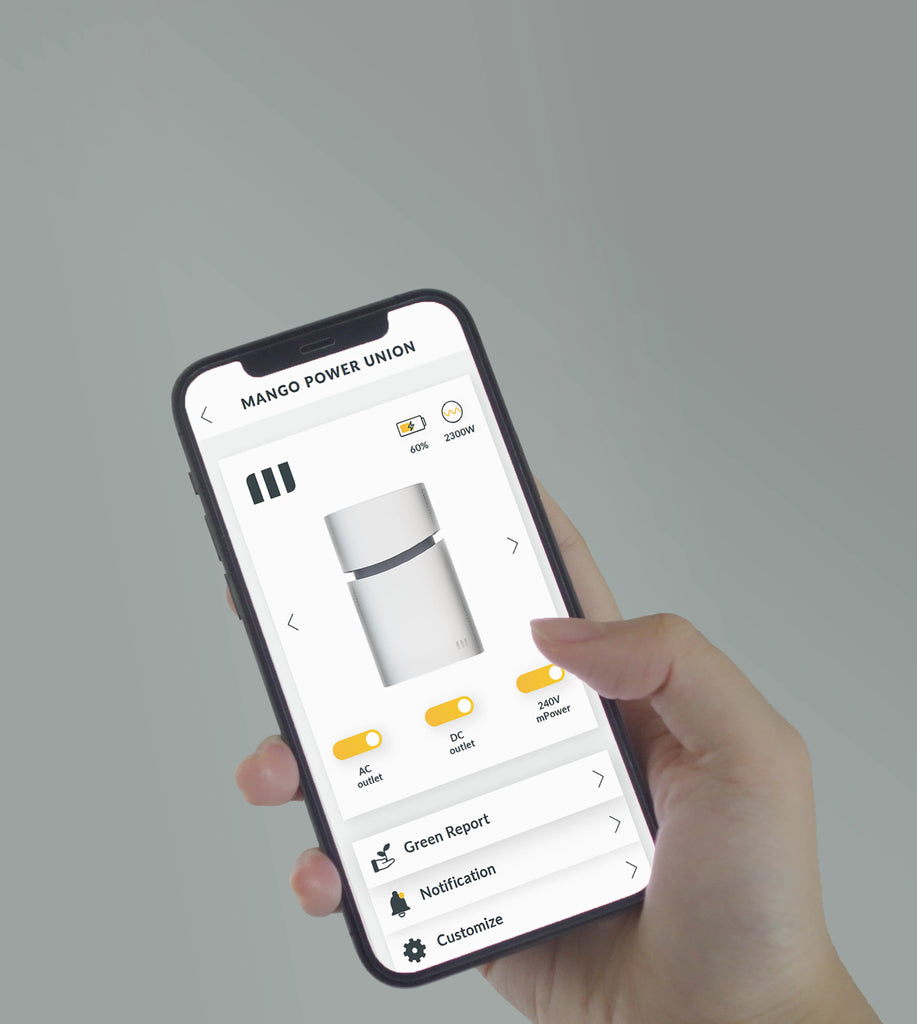

Manage Your Energy from Anywhere Smart App Control
- Bluetooth and Wi-Fi Connectivity
- Smart Notifications
- Smart Energy and Carbon Footprint Report
See and control your home’s energy production and consumption in real-time with the Mango Power App. Customize your energy usage, optimize for independence, protect against outages, or increase your savings; whatever your goals, the Mango Power Union lets you use your energy smarter.
Best Battery in the Energy Storage System Market
- High Class EV mCell
- mTurboPack Technology
- Lightweight Design
- Works Well in Winter
mCell
The High-Class EV Polymer LFP Battery Cell (Ni, Co, Mn Battery)
Unlike normal 18650 cells, the Mango Power Union uses a unique cell structure: the Polymer NCM EV Battery. This enables a current 4-times greater in each cell than in a normal LFP battery. Energy density reaches 194 Wh/kg, 38% higher than other products and the battery has a working temperature of Charging: 0°C~55°C (32°F~131°F) Discharging: -30°C~60°C (-22°F~140°F).
mTurboPack
Maximize and Protect Your Battery Pack
The Optimizing Converter and smart BMS (Battery Management System) balance charging tech and sophisticated pack manufacturing so the Mango Power Union intelligently optimizes battery charging, balancing the voltage of each battery pack. This gives the Mango Power Union more than 6000+ battery charging cycles, the equivalent of 10 years of use.
The Mango Power Forest Plan
Every time the Mango Power Union gets a full charge via solar power and uses its stored energy is a 4.29 kg reduction in carbon emissions, the equivalent of 71.1 trees’ carbon capture per day.
With the MP Union App, you can easily check your power use with the Smart Energy and Carbon Footprint Report, and for every 48kWh solar power that is tracked flowing through your Mango Power device, we will plant a tree in a select national park. When the planting season is over, we’ll send you a report letting you know how your efforts created bigger, greener forests and better, greener world.
3-Year Warranty
The Mango Power Union comes with a robust 3-year warranty for ease of mind. It covers defects in materials and workmanship.
Specifications
| Net Weight | 173.94 Ibs | 78.9 kg |
| Dimensions | 17.6 x 13.6 x 31.7 inches | 446 x 346 x 805 mm |
| Working Temperature Charging | 0°C~55°C (32°F~131 °F) |
| Working Temperature Discharging | -30°C~60°C (-22 °F~140 °F) |
| Warranty | 3 years |
| Certifications | Meets US and International Safety and EMI Standards |
| Smart Charge | Yes |
| mBoost Mode | Yes |
| Running Noise | <45dB |
Battery
| Battery Capacity | 6.9kWh | |
| Cell Chemistry | EV class LFP Battery Cell | |
| Life Span | Battery Management Systems | Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection, DC/DC Converter Optimizer |
Input
| Charging Methods | AC Wall Outlet, Solar Panel, Generator, EV Charger |
| AC Charging Max | Max 3300W |
| MPPT Number | 2 |
| Max. DC Input Power for Single MPPT |
Max 2000W |
| MPPT Input Voltage Range | 60V~150V |
| Generator | Support |
| EV AC Charging Spot | Adapter needed |
Inverter
| Rated AC Output Power | 4000W |
| Surge Power | 6600W/100ms |
| Maximum Power Point Trackers | 2x, Support Both Roof and Portable Solar Panels |
| Inverter Efficiency | Up to 95% |
| New Inverter Tech | GaN/SiC 3rd generation semiconductor |

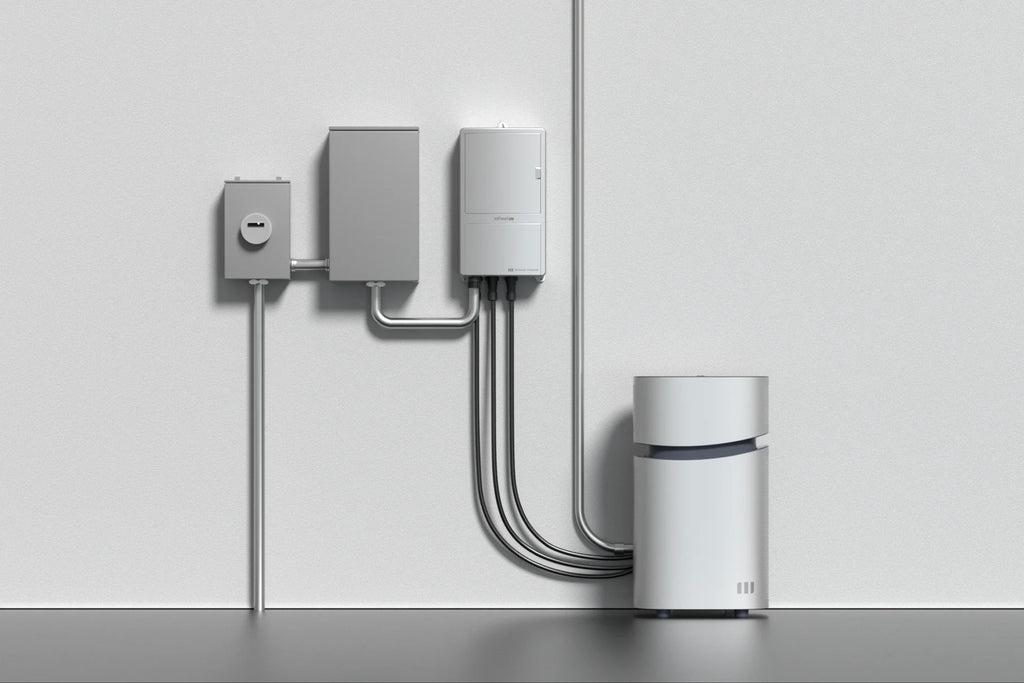

| 24/7 Seamless Home Backup | Yes |
| Backup Essential Circuits Connection |
4kW/40A |
| Scalability | Up to 3 devices 21kWh /12kW Extension |

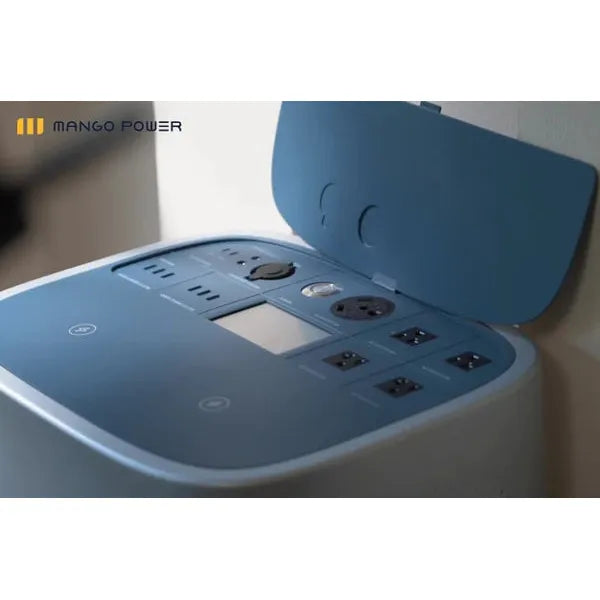

Output
| Output Port Quantity | 19 |
| AC Output Ports | 4x20A+1x30A+1x40A(backup) / 4000W |
| USB-A (6x) | QC 3.0 27W |
| USB-C (1x) | PD 65W |
| USB-C (1x) | PD 100W |
| Wireless Charging Pad (2x) | 15W |
| Car Power Output | 12V/10A |
| DC5521 Output (2x) | 12V/5A |
Smart Control
| Connection | Bluetooth and Wi-Fi |
| App Remote Control | Yes |
| OTA Upgrade | Yes |
| Customized Mode |
Backup Power Mode / Economical Mode / Time-based Control Mode
|
| Smart Measurement | Yes |
| Smart Energy and Carbon Footprint Report |
Yes |
| Smart Notifications | Yes |
Touch Screen
| Screen Size | 4.3 Inches |
| Touch Screen | Yes |
| Resolution Ratio | 480 x 800 |
| Screen Pigment | 16.7M colors |
| Smart Self-Check System | Yes |
| 9-Chips Security System | Yes |
What’s In The Box
- 1 x Mango Power Union
- 1 x AC Charging Cable
- 1 x Solar Charging Cable
- 1 x 40A Home Backup Cable
- 1 x User Manual
- 1 Warranty Card
- 1 x QC PASS Certificate
Product Documents
Mango Power Union User Manual
Mango Power Move Quick-Start Guide
