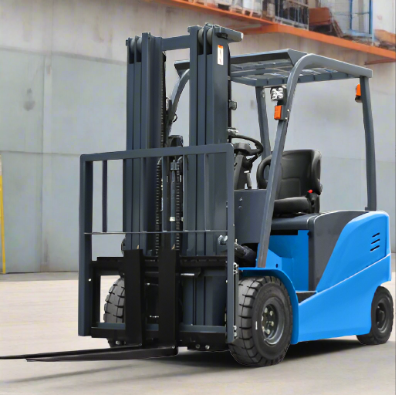

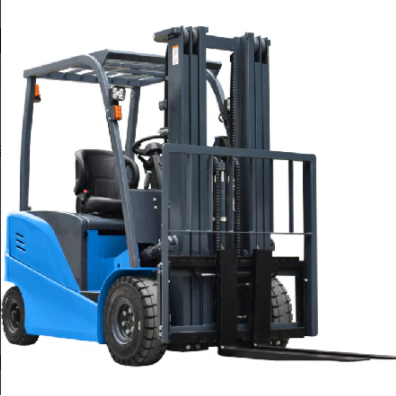

4 Wheel Electric Forklift | 7700 lbs | Eoslift CPD35
Price range: $31,421.00 through $36,342.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21
Eoslift 7700 lbs 4 Wheel Electric Forklift CPD35
Product Description
The Eoslift CPD35 4 Wheel Electric Forklift is a high-capacity solution designed to handle heavy loads of up to 7700 lbs with ease. Its robust construction and advanced electric powertrain ensure reliable performance and reduced emissions. With four-wheel stability and precise controls, it offers exceptional maneuverability and safety in various industrial environments. Perfect for warehouses and distribution centers, this forklift optimizes material handling tasks, enhancing productivity and operational efficiency.
Features
- Electric counterbalance forklift
- AC driving motor
- CURTIS controller
- 80V400Ah lead-acid battery
- Hydraulic steering
- Pneumatic tires
- with luxury seat
- with curved mirror
- with intelligent charger
- with warning lights and toolbox kit
Performance
- Small front overhang design and light weight, work stability is improved and work time becomes longer with lower energy consumption
- The driving motor is arranged horizontally, and the battery is sunk at the bottom of the vehicle to Improve the driving stability.
- Adopt large speed ration drive axle box assembly to improve work efficiency, climbing ability, reduce energy consumption and noise
- New large screen LED instrument, good visibility, intuitive reading, friendly human computer interface.
- Ergonomic anti-fatigue seat which can be adjusted at multiple angles according to the driver’s needs.
Safety
- Ac drive system
- ‘Hand brake
- Foot hydraulic pedal brake
- Quick cut-odd valve
- Lowering speed limit valve
Specification
| Model | CPD35 |
| Mast Type | Duplex |
| Power Type | Battery |
| Operation Type | seated |
| Rated Capacity | 7716.18 lbs. |
| Load Center | 19 in. |
| Wheelbase | 59 in. |
| Service Weight (inc. battery) | 7451 lbs. |
Wheels Chassis
| Wheel Type | pneumatic tire |
| Load Wheel |
18.11x 7.08x 8.07 inc.
|
| Drive Wheel |
21.25x 8.07x 9.05 in.
|
| Number of Wheels, front/rear (x=drive wheel) | 2x/2 |
| Wheel Tread, load side | 37.79 in. |
Dimensions
| Tilting | 6/10/ |
| Mast Closed Height | 78.54 |
| Free Lift Height | 5.51 |
| Lift Height | 118.11 in. |
| Mast extended height w/ load-backrest | 158.66 in. |
| Overall Length | 134.25 |
| Overall Width | 45.66 |
| Fork Size | 42.12×4.8×1.57 |
| Fork Outside Width | 8.74 in.~39.37 in. |
| Handle Height | – |
| Mast Ground Clearance | 3.34 in. |
| Aisle width for pallet 39.37 in. x 47.24 in. | 146.45 in. |
|
Aisle width for pallet 31.49x 47.24 in.
|
|
| Turning Radius (pedal off) | 82.67 in. |
Performance
| Driving Speed (load/unload) | 6.21 m/h |
| Lifting Speed (load/unload) |
9.055/15.74 inch/s
|
| Lowering Speed (load/unload) |
16.53/18.89 inch/s
|
| Max. gradeability (load/unload) (S2-5min) | 14/16 |
| Brake Type | Hydraulic |
Drive
| Driving Motor/Power (S2-5min) | AC6.8 kw |
| Lifting Motor/Power (S3-15%) | DC8.2 kw |
| Battery Voltage/Capacity | 48/490 V/Ah |
| Battery Weight | 1653.47 lbs. |
| Steering System | Hydraulic |
