Electric Forklift | Stand up Rider | 4000 lbs. Capacity | Lift Height 189” | EKKO EK18RFL
$23,341.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

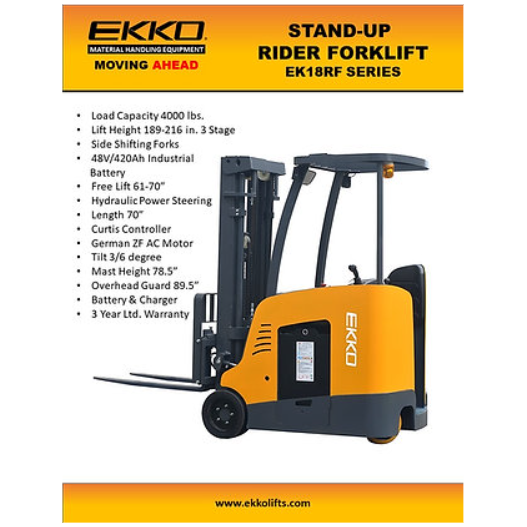

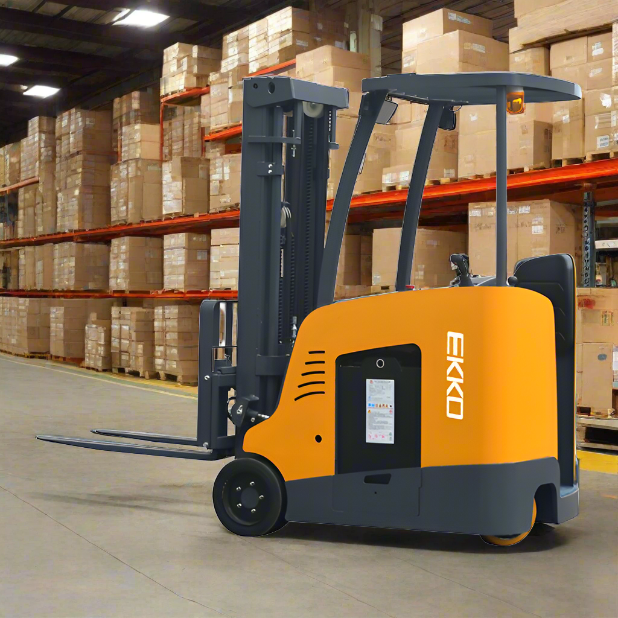

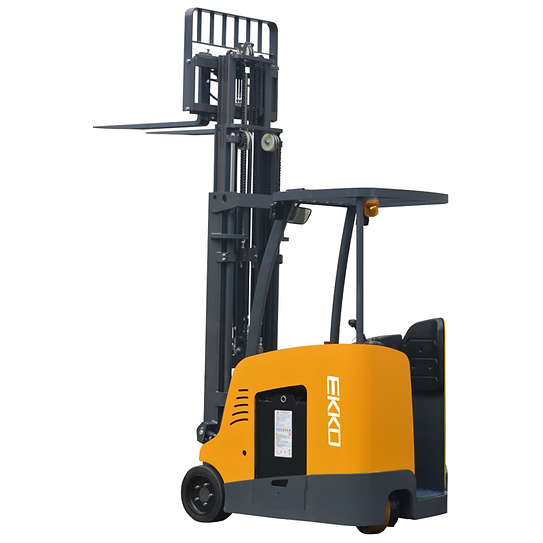

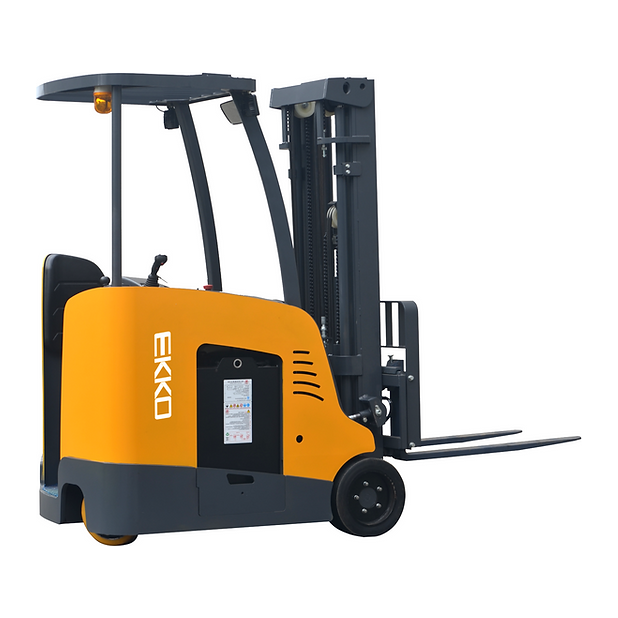

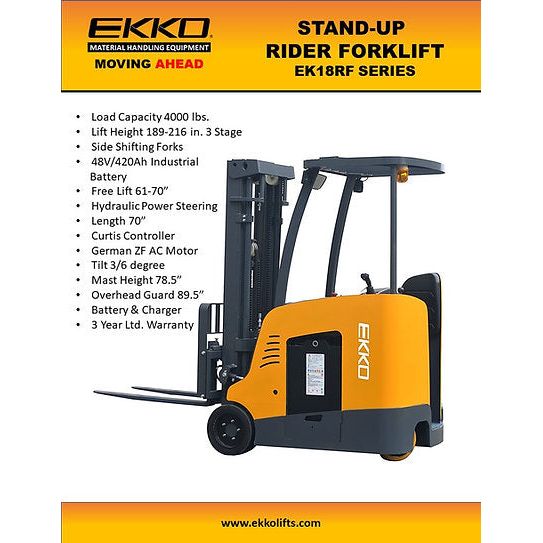

EKKO EK18RF Stand-up Rider Electric Forklift 4000 lbs cap 189 Lift Height
Product Description
The EKKO EK18RF Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 189″ (15.75ft)
- Side Shifting Forks
- Adjustable Forks 9.4-35.6″
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Charger 48V/65A 480V
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A
- 3 Year Limited Warranty
About EKKO Lifts

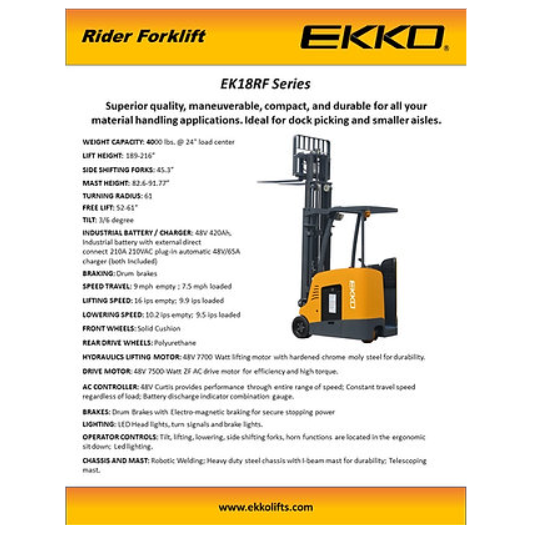

Specification
|
Model |
EK18RFL |
|
Power unit |
Electric |
|
Operation Type |
Rider |
|
Loading capacity |
4000 lbs |
|
Load centre |
19.68 in |
|
Axle centre to fork face |
11.5 in |
|
Wheelbase |
48.8 in |
|
Service weight with battery |
7870 lbs |
|
Wheels type |
Solid wheel |
|
Driving wheel size |
16×7-10.5（15.98*7.01*10.51）in |
|
Bearing wheel size |
13.5×5.2 in |
|
Wheels, number front/rear |
1×/2 |
|
Track width |
35.04 in |
|
Mast/fork carriage tilt, fwd/bwd |
3/5 |
|
Lowered mast height |
82.6 in |
|
Free lift height |
52.17 in |
|
Lift height |
188.98 in |
|
Extended mast height |
220.87 in |
|
Height of overhead guard (cabin) |
90.08 in |
|
Height of seat/stand-on platform |
9.06 in |
|
Overall length |
117.78 in |
|
Length to fork face |
72.52 in |
|
Overall width |
42.52/42.13 mm |
|
Fork dimensions |
1.58/4.72/45.28 in |
|
Width of forks |
36.22 in |
|
Ground clearance under mast |
2.95 in |
|
Min.Ground clearance |
3.86 in |
|
Aisle width with pallet 1000 x 1200 across forks |
117.24 in |
|
Aisle width with pallet 800 x 1200 along forks |
125.12 in |
|
Min.Turning radius |
58.5 in |
|
Travel speed,laden/unladen |
12/13 |
|
Lifting speed, with/without load |
250/400 (mm/s) |
|
Lowering speed, with/without |
240/258 (mm/s) |
|
Climbing ability, with/without |
6/10 % |
|
Service brake |
Hydraulic |
|
Drive motor, 60-minute rating |
6 KW |
|
Lift motor rating at S3 15% |
7.7 KW |
|
Battery according to DIN 43531/35/36 A,B,C,no |
no |
|
Battery voltage/rated capacity |
48V/420Ah |
|
Battery weight (± 5%) |
1570 lbs |
|
Power consumption VDI |
38*18.1*29.53 mm |
|
Type of drive control |
AC |
|
Noise level at operator‘s ear |
≤70 |
|
steering type |
Hydraulic steering |
