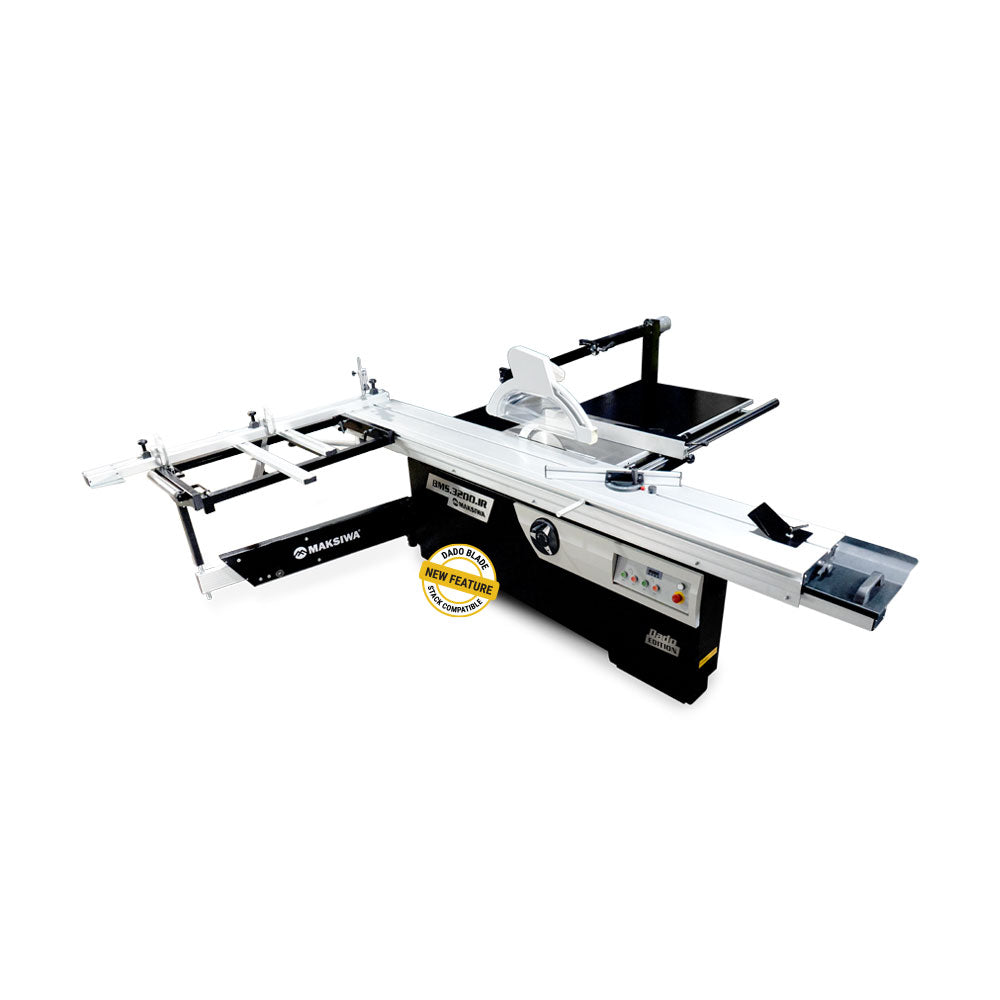

Sliding Panel Saw | 5HP | Maksiwa BMS.3200.IR

$5,849.00

Estimated Delivery If Item Is In Stock
Sep 18

Ordered After you place the order, we will need 1-3 days to prepare the shipment

Sep 19 - Sep 21

Order Ready Orders will start to be shipped

Sep 30 - Oct 03

Delivered Estimated arrival date range: Sep 30 - Oct 03

Description

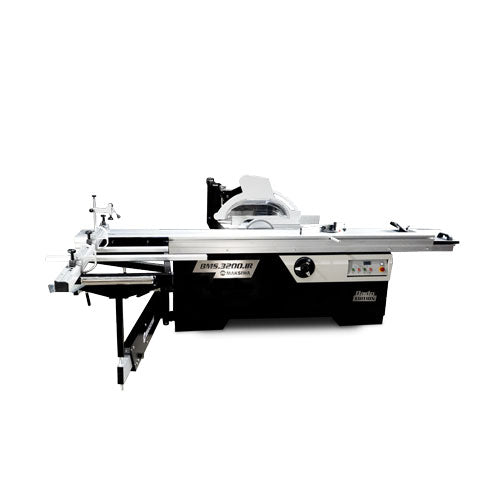

Maksiwa Sliding Panel Saw 5HP 220V BMS.3200.IR


Product Description

Introducing the new BMS.3200.IR Dado Edition, a reflection of our commitment to bringing you the best. This latest model in our best-selling series has been redesigned to offer superior performance and affordability. With dado blade capabilities, the BMS.3200.IR is a versatile addition to your workshop. Available in both 1 Phase and 3 Phase 220V options, it seamlessly fits your needs, whatever they may be. The powerful 5HP main motor and 1HP scoring motor ensure strength and reliability for any task. Dado stacks are an essential tool for creating seamless and clean joinery. The BMS.3200.IR is compatible with an 8″ blade and has a max capacity of 1-1/4″, ensuring perfect straight chip-free parallel cuts to enhance the quality of your work. The easy blade access allows you to switch effortlessly between dado and regular blades, making your work more efficient.

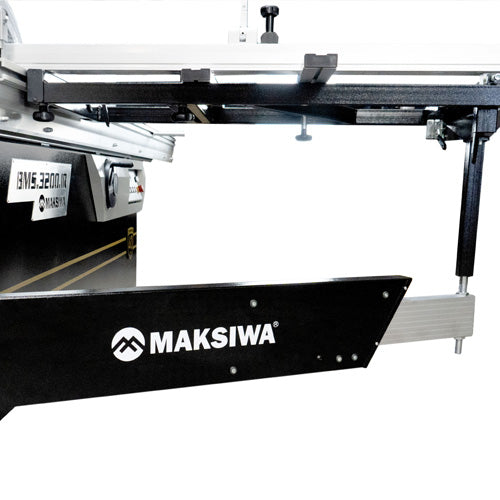

Mobile Arm


Mobile Table Support

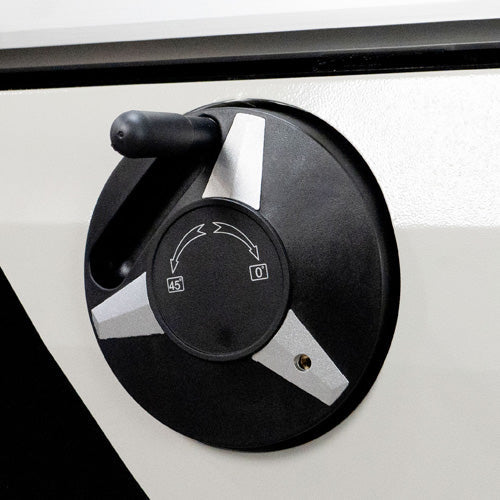

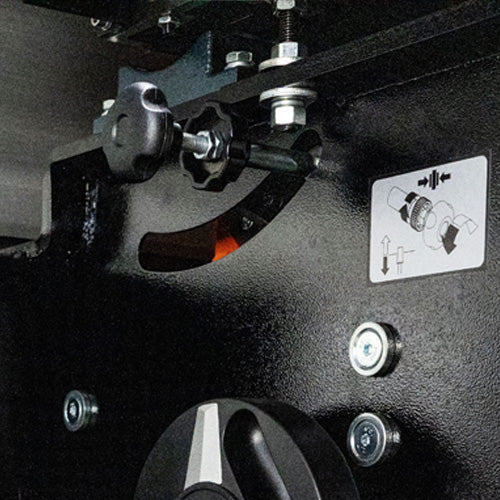

Blade Tilt Control Handle


Adjustable Handle

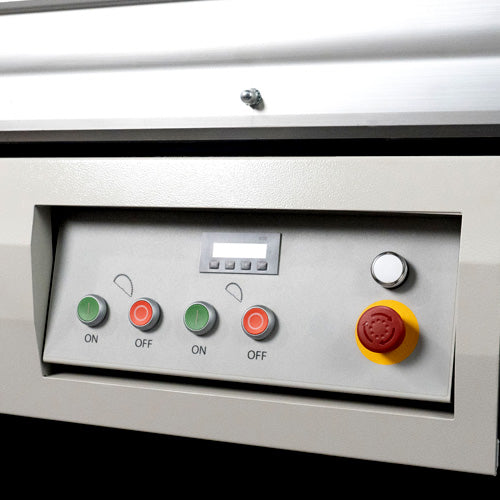

Control Panel


Emergency Button/Switches

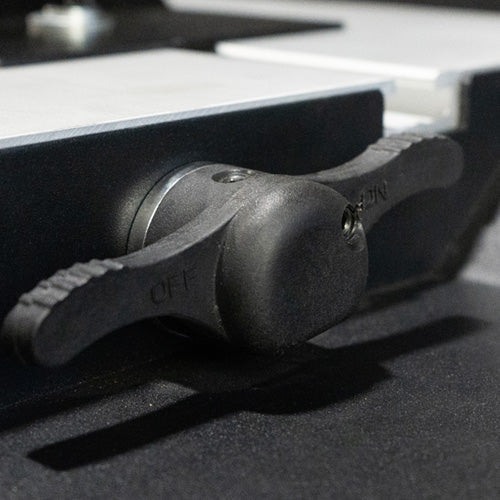

Main Table Lock

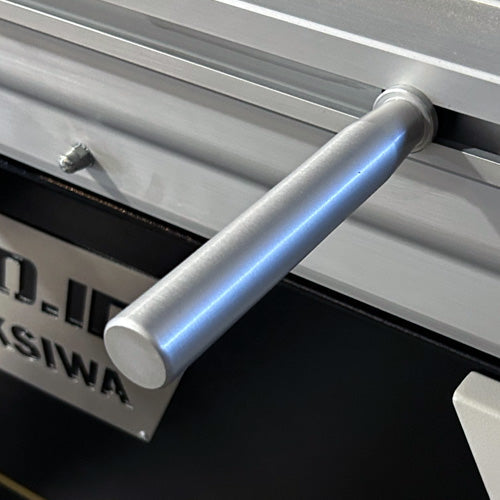

Sliding Table Handle

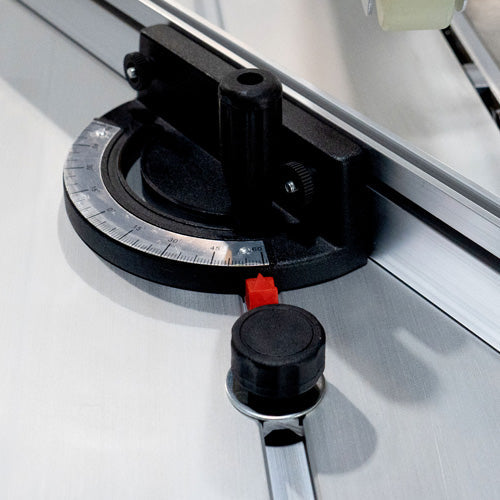

Adjustable Angle Guide


Wood Stopper


Rear Extension Table

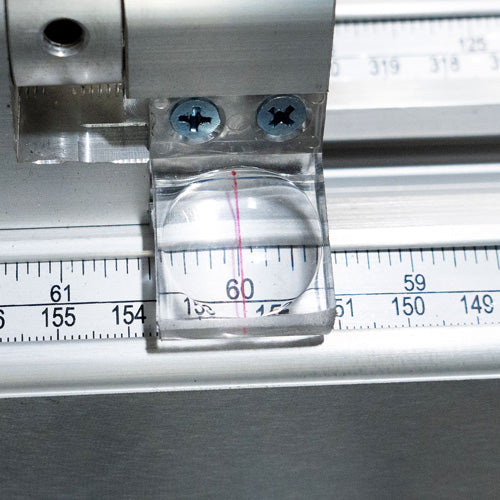

RIP Fence With Micro Adjustment

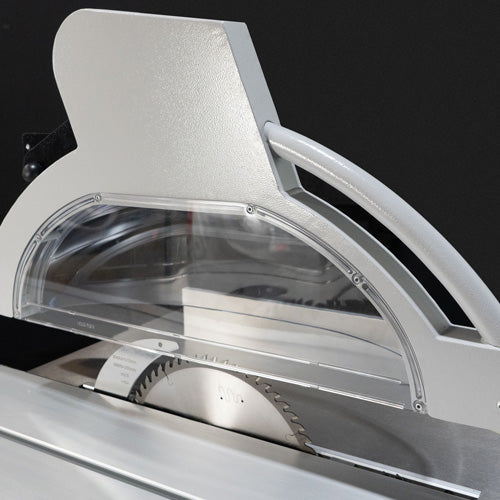

Blade Protector Cover

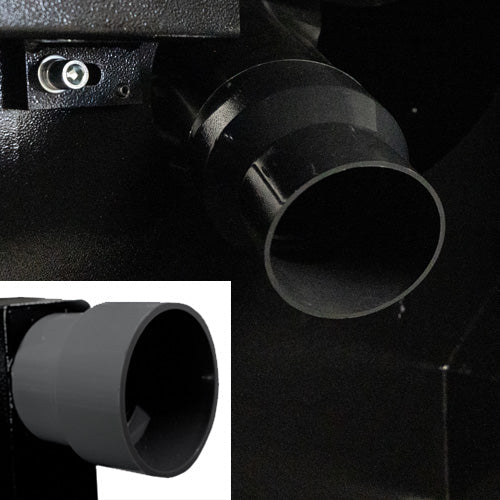

Dust Collection Ports

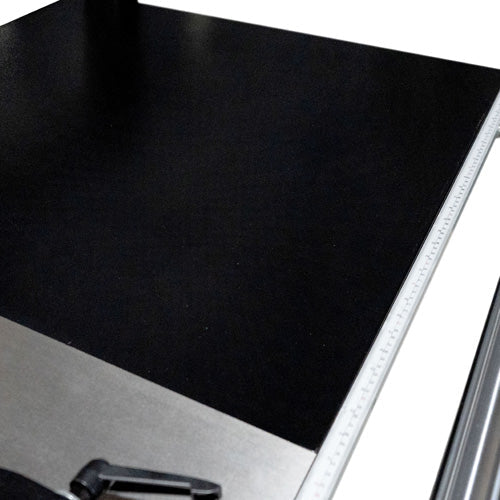

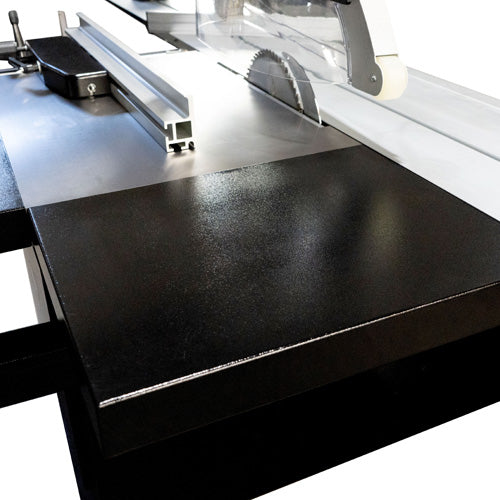

Support Table

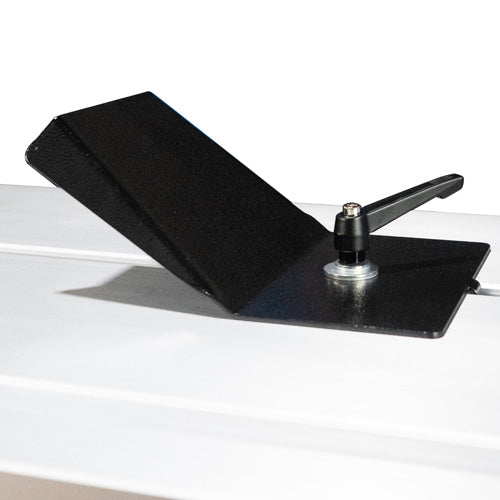

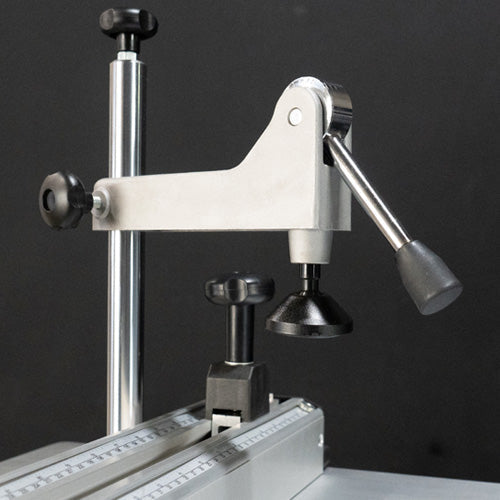

Sheet Clamp

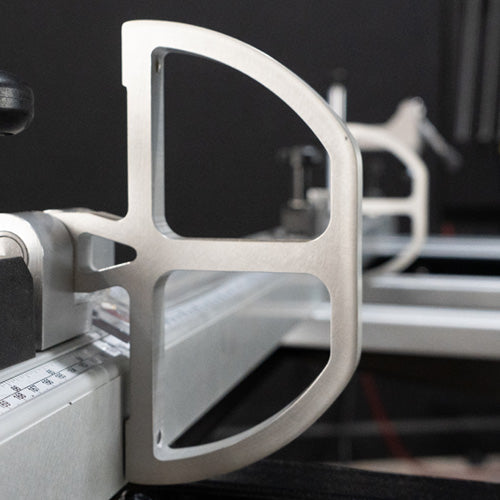

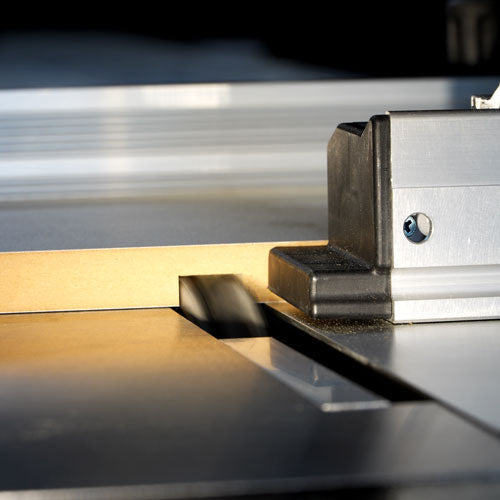

Flip Stoppers


Crosscut Fence

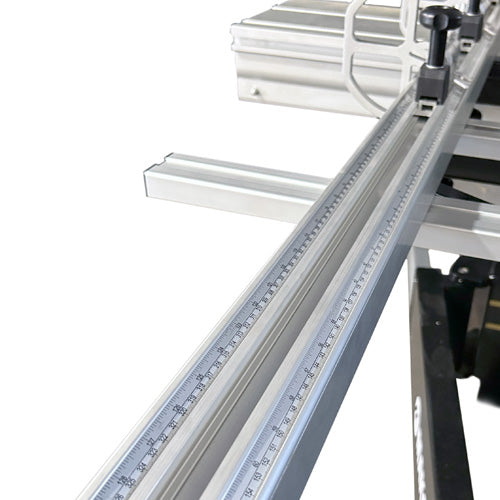

Measuring Tape Metric & Imperial

Crosscut Fence Extensions


Panel Pushing Handle

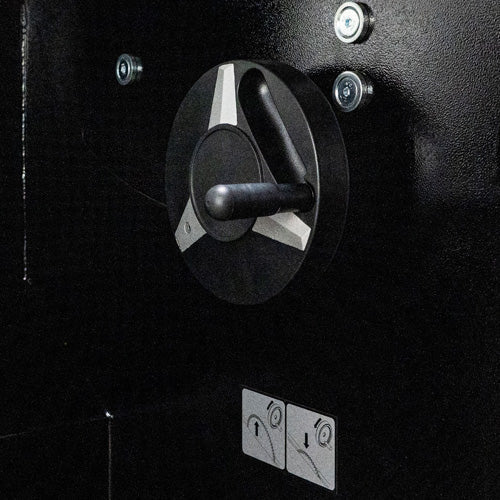

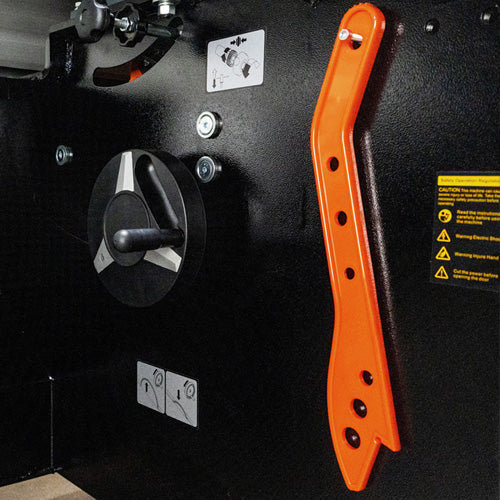

Blade Height Adjustment Handle


Scoring Blade Adjustment Handle

Dimensions

Specifications

Technical Information BMS.3200.IR
Main Motor
5 HP/ 4000 RPM 3.7 Kw
Max Blade Diameter 12″ | 305mm
Main Blade Arbor 1 3/16″ | 30mm
Main Blade Max cutting Height at 90° 3 1/2 ” | 90mm
Main Blade Cutting Height at 45° 2 1/8″ | 53mm

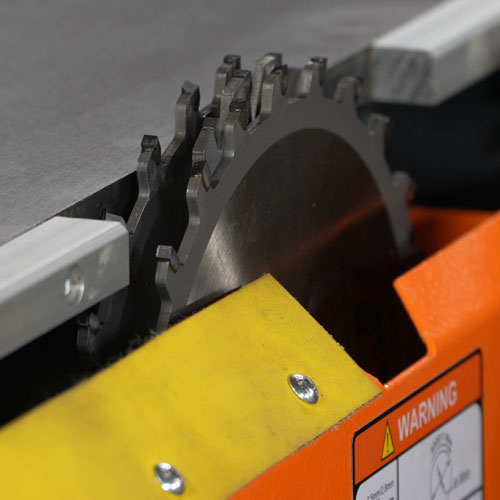

Dado Width Capacity 3/4”
Max Dado Blade Diameter 10″

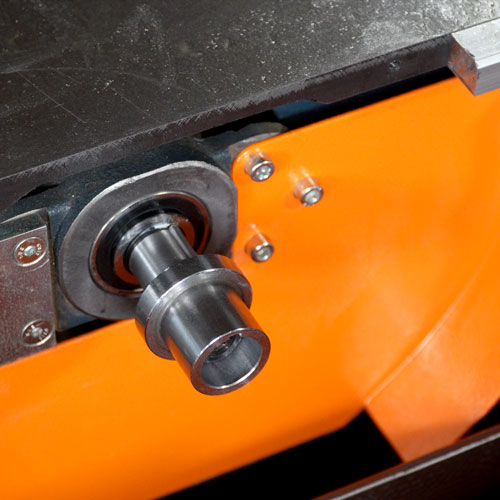

Dado Blade Arbor 5/8”
Scoring Motor
1 HP / 8000 RPM .74Kw
Scoring Motor Blade 4 3/4″ | 12mm
Scoring Blade Arbor 3/4″ | 20mm
Scoring Blade Type Conical
Max Ripping Capacity 51″ | 1295mm
Crosscut Capacity 126″ | 3200 mm
Crosscut Fence Capacity Closed/Open
74 3/4″ / 108″ | 1899 MM / 2743 mm
Machine Working Dimensions (LxWxH)
126″ x 137″ x 52″ | 3200 x 3480 x 1321mm
Cast Iron Table Dimension (LxWxH)
31 1/2″ x 21″ x 34 3/4″ | 800 X 553 X 883 mm
Sliding Table Dimension (LxW)
126″ x 14 3/4″ | 3200 x 375 mm
Dust Collection Port (2) 4″
Minimum Dust Collection Requirements
1000 CFM | 28m/min
Electrical Specs
1 Phase 220V 22 Amps 60 Hz3 Phase 220V 11 Amps 60 Hz
Main Body Crate Dimensions (LxWxH)
88″ x 48″ x 43″ | 2245 x 1130 x 1090 mm
Main Body Crate Weight Net/Gross
1102/1257 LBS | 500/ 570 KGS
Sliding Table Crate Dimensions (LxWxH)
140″ x 19″ x 8 1/2″ | 3556 x 483 x 216 mm
Sliding Table Crate Weight Net/Gross
227/282 LBS | 103/128 KGS
