Full Powered Straddle Stacker | 3300 lbs | Eoslift TBD15
Price range: $5,243.00 through $5,681.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

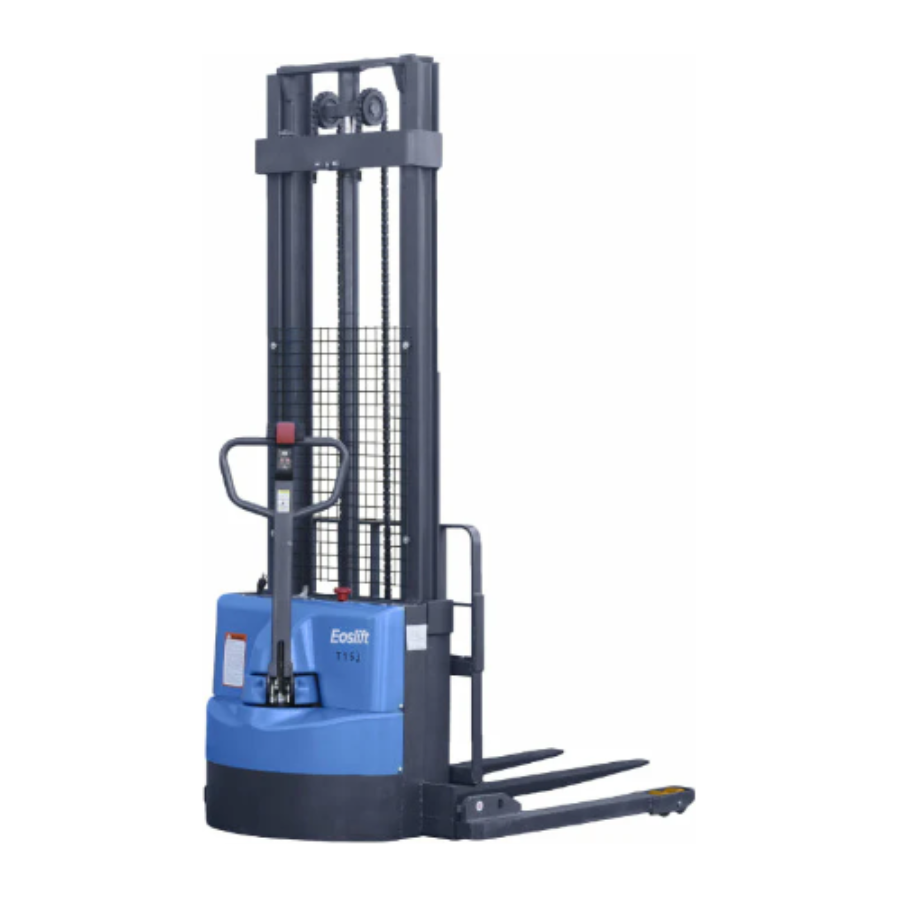

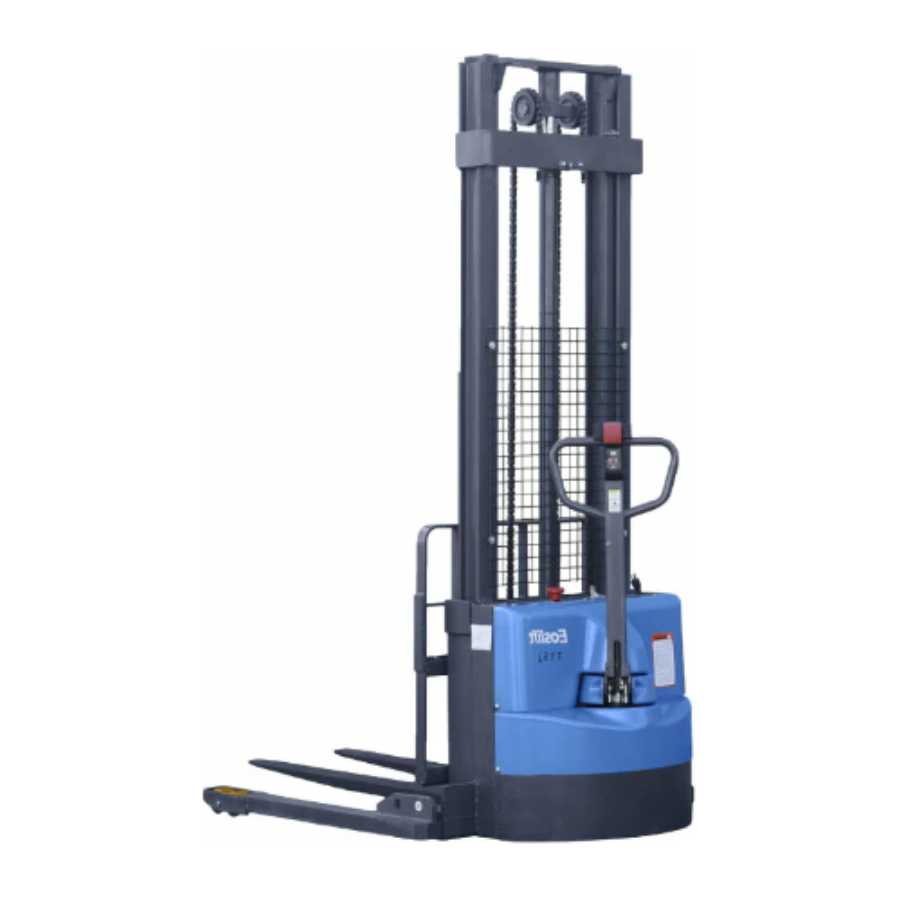

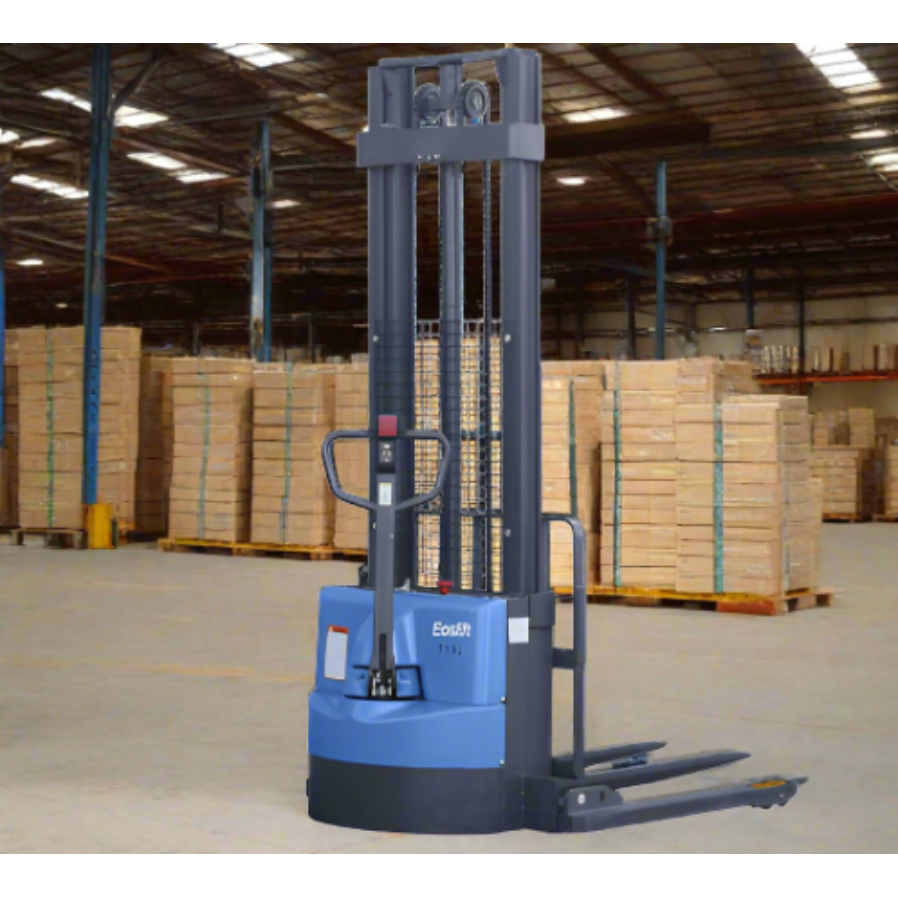

Eoslift 3300 lbs Full Powered Straddle Stacker TBD15
Product Description
The Eoslift TBD15 Full Powered Straddle Stacker is a robust and versatile solution for material handling needs. With a lifting capacity of 3300 lbs (1500 kg), it’s perfect for various industrial applications, from warehouses to manufacturing facilities. This fully powered stacker offers effortless operation, allowing users to lift and transport heavy loads with ease. Its straddle design provides stability when handling pallets of different sizes, while its compact build ensures maneuverability in tight spaces. Whether you’re stacking, transporting, or loading, the Eoslift TBD15 delivers reliable performance to optimize your workflow.
Features
- Walkie type pallet stacker
- DC driving motor
- CURTIS controller
- H channel steel mast
- Maintenance-free battery:2*12V80Ah
- Mechanical steering
- PU wheels
- Adjustable straddle leg
- with intelligent charger
Reliability
- Damping system of auxiliary wheels to increase the stability of the truck
- Wide frame design with good vision. C-channel used for better stability.
- Firm assemblies of load-bearing wheel
- The main components of the truck use imported parts, to improve the reliability of the truck.
- With a transparent acrylic guarding plate, to provide a broader vision and better protection
Safety
- With emergency reversing device and emergency brake function
- Long tiller to maintain a reasonable distance between the operator and the truck, to ensure the safety
- Safe and silent drive with continuously variable speed
- The controller has multiple automatic protection system
Comfort
- The ergonomically designed handle with accessible buttons reducing operator fatigue
- Exceptional manoeuvrability in extremely confined areas ensured by creep speed button
Easy Maintenance
- Maintenance-free AC drive motor, replacement of carbon brush not needed
- Operating handle and motor cover easy for installation and removal
- Maintenance-free battery
High Efficiency
- Suitable for narrow spaces such as truck loading and unloading, supermarkets and workshops
- High-quality,low-noise AC drive system
- High-performance pump stations, with low noise
- Low-battery locking function extends the battery life
- Electromagnetic and regenerative braking system greatly improves the efficiency
Intelligent
- Equipped with LIONMAN fleet management system, which has functions of operator authority management,on-line monitoring of truck condition, release of notification information and generation of comprehensive report
Specification
| Model | TBD15 | |
| Mast type | Duplex Mast | |
| Power | Electric | |
| Operation Mode | Walking | |
| Rated Capacity | lb. | 3306 |
| Load Center | in. | 19.7 |
| Wheel-base | in.1 | 47.6 |
| Service Weight | lb. | 1710 |
Wheel Chassis
| Wheel Type | PU | |
| Drive Wheel | in. | Φ9.1×2.6 |
| Load Wheel | in. | Φ3.3×2.8 |
| Balance Wheel | in. | Φ3.9×1.6 |
|
Number of Wheels, Drive/Load
|
1+2/2 | |
| Track Width, Drive Side | in. | 20.5 |
| Track Width, Load Side | in. | 42.1-53.9 |
Size
| Max. Lift Height | in.1 | 98.4/118.1/137.8 |
| Free Lift Height | in. | 0 |
| Min. Mast Height | in.2 | 70/79.9/94 |
| Max. Mast Height | in. | 118/138/149.8 |
| Min. Fork Height | in.3 | 1.7 |
| Fork Length | in. | 42.1 |
| Fork Size | in. | 1.57×3.9×42.1 |
| Fork Width | in.4 | 7.9-31.4 |
| Aisle Width for Pallets 1000×1200 Crossways | in. | 92.5 |
| Aisle Width for Pallets 800×1200 Crossways | in. | 85.4 |
| Min. Ground Clearance | in. | 1 |
| Overall Length | in.5 | 67.5 |
| Overall Width | in.6 | 41.3-59.1 |
| Turning Radius | in.7 | 54 |
Performance
| Travel Speed, Laden/Unladen | mph | 2.8/2.8 |
| Lift Speed, Laden/Unladen | in/s | 3.9 |
| Gradeability, Laden/Unladen | % | 5/8 |
| Service Brake | Electromagnetic |
Drive
| Drive Motor/Power | KW | AC0.75 |
| Lifting Motor/Power | KW | DC2.2 |
| Battery Voltage | V/Ah | 24/60 Li-lon |
Technical Drawing
