Electric Stand-Up Movable Mast Truck | 3300 lbs | 24V | Eoslift LF15D
Price range: $18,963.00 through $23,713.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

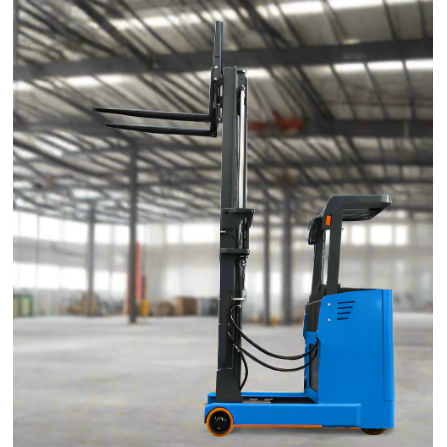

Eoslift 3300 lbs Electric Stand-Up Movable Mast Truck LF15D
Product Description
The Eoslift 3300 lbs Electric Stand-Up Movable Mast Truck LF15D is a versatile powerhouse for warehouse efficiency. Powered by electricity, it ensures sustainable and reliable performance. Its stand-up design prioritizes operator comfort during extended shifts while optimizing visibility and maneuverability. With a lifting capacity of up to 3300 lbs, it effortlessly handles heavy loads. The LF15D’s movable mast feature enhances versatility, allowing for smooth navigation in tight spaces. Whether transporting goods or accessing high shelves, the LF15D excels in optimizing material handling tasks, making it an indispensable asset for any warehouse operation.
Features
- Stand-on electric reach truck 24V
- AC driving motor
- CURTIS controller
- 24V420Ah for LF15D
- Mechanical brake
- Electric power steering
- Wheel type:PU
- with fork tilt function
- with warning light
- with intelligent charger
- with battery replacement rack
Performance
AC driving system, AC motor to provide strong power, more accurate control, more stable operation, high strength vertical gearbox, super long service life, through multi-layer detection of oil pump, cylinder and pipeline , to ensure the hydraulic system high reliability.
- American AMP waterproof plug and electrical parts of reliable quality,
- all wires and cables have reliable protection and fixation, greatly reducing electrical faults,
- High strength loading wheel design to ensure the stability of the reach truck;
- High strength mast channel steel, high bending resistance improves overall mast strength
Safety
Automatic deceleration function when driving on the curve, it makes driving safer.
- Emergency power-off switch, when the operation is out of control, it can easily cut off all the power to avoid emergency accident
- Anti-skid braking function prevents the forklift from sliding down when it loses control or runs on a slope
- Strong design for overhead guard,
Easy operation
Fully considering the human-machine engineering console, each function button is convenient and easy to operate. The driving position is provided with cushion for more comfortable driving.
Specification
| Model |
LF15D(duplex mast)
|
| Power Type | Battery |
| Operation type | Stand On |
| Rated Capacity | 3306.93 lbs |
| Load Center | 19.68 in. |
| Front Overhang | 7.08 in. |
| Wheelbase | 60.82 in. |
Weight
| Service weight(incl.battery) | 6062.71 lbs |
| Axle capacity with no load,drive side/ load size |
4188.783/1873.93 lbs. |
| Axle capacity with full load(fork forward) drive side/load size |
1543.24/8928.72 lbs. |
| Axle capacity with full load(fork back- ward)drive side/load size |
4409.245/6062.712 lbs. |
Wheels
| Wheel type | PU |
| Front wheel | 10 x 4.09 in. |
| Drive wheel | 13.50 x 4.25 in. |
| Auxiliary wheel | 7.0 in. x 2.99 in. |
| Number of wheels-front/rear(x=drive | 2/1 x+2 |
| Wheel tread, drive side | 26.77 in. |
| Wheel tread, load side | 41.88 in. |
Size
| Fork tilt | 3/5α/β(°) |
| Mast closed height | 81.96 in. |
| Free Lift height | 3.14 in. |
| Lift height | 118.11 in. |
| Mast extended height with load-bachrest | 155.90 in. |
| Overhead guard height | 88.58 in. |
| Pedal height | 11.81 in. |
| Overall length | 90.51 in. |
| Overall width |
42.91 in./ 46.06 in.
|
| Fork size |
42.12 in./ 4.8 in./ 1.57 in.
|
| Fork carriage width | 42.83 in. |
| Fork outside width | 9.6 in.-30.39 in. |
| Inner leg width | 33.7 in. |
| Reach strole | 28.22 in. |
| Mast ground dearance | 3.22 in. |
| Aisle width for pallet 1000*1200mm | 108.11 in. |
| Aisle width for pallet 800*1200mm | 108.81 in. |
| Turning radius | 70.23 in. |
Function
| Driving speed(load/unload) | 5.59/6.2 m/h |
| Lifting speed(load/unload) | 8.66/ 14.96 in/s |
| Lowering speed(load/unload) | 12.2/ 10.23 in/s |
| Max.gradeability(load/unload) | ≤10 %(tanθ ) |
| Brake type | Mechanical |
Drive
| DrivingMotor(52-60min) | 4.5 kw |
| LiftingMotor(s3-15%) | 7.5 kw |
| Battery voltage/capacity | 48/300 V/Ah |
| Battery weight | 1102.31 lbs. |
| Steering system | EPS |
Technical Drawing
