Electric Stacker | 3300 lbs | Eoslift TB15
Price range: $9,264.00 through $12,369.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

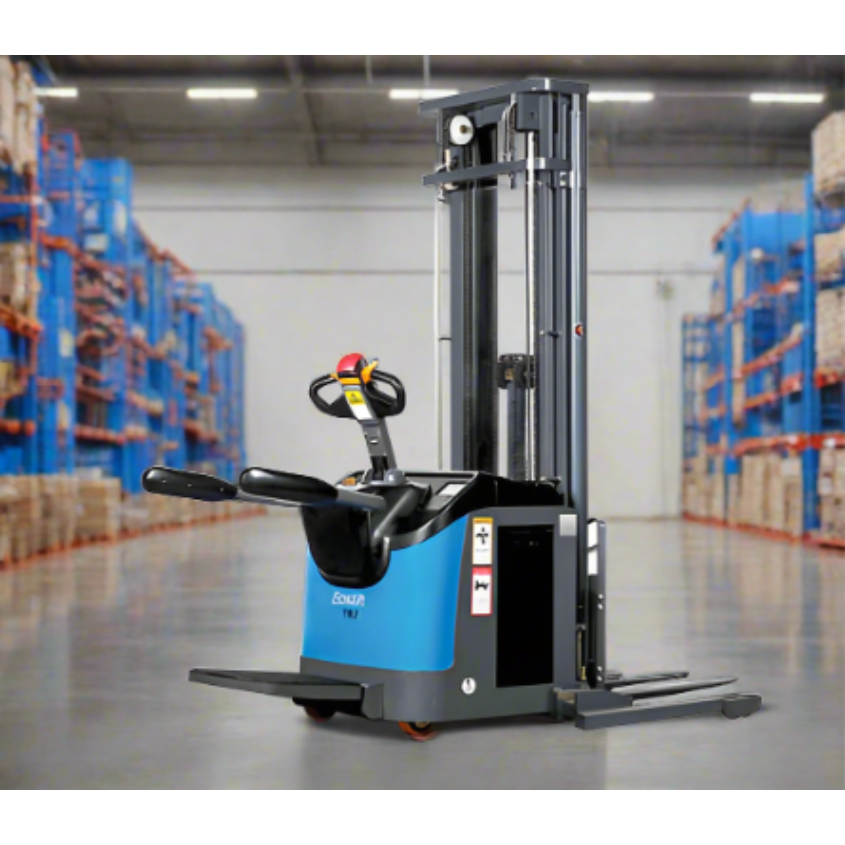

Eoslift 3300 lbs Electric Stacker TB15
Product Description
The Eoslift 3300 lbs Electric Stacker TB15 is a versatile and reliable solution for lifting and transporting heavy loads in warehouse settings. Powered by electricity, it ensures efficient and sustainable operation. With a compact design, it excels in maneuvering through narrow aisles and tight spaces. Capable of lifting loads up to 3300 lbs, it provides ample power for various material handling tasks. Equipped with intuitive controls, it offers precise handling and positioning of goods. Whether stacking pallets or organizing inventory, the TB15 Electric Stacker is a dependable asset for optimizing warehouse operations.
Features
- Stand on electric pallet stacker
- AC driving motor
- CURTIS controller
- 24V/210Ah side pull battery
- Electric power steering
- PU wheels
- Adjustable straddle leg
- with protective glasses
- with standing platform and armrest
- with intelligent charger
Reliability
- Enhanced structure design strengthens the whole machine body.
- Equipped with Eoslift Steer-By-Wire system (SBW), high-efficiency AC motor, and built-in pressurized hydraulic cylinder.
- Frame is made of the cold-drawing process material, and this kind of high-precision lifting frame guarantees the stability and safety.
- T16 series are equipped with triplex mast, and it has the function of free-lifting.
Specification
| Model | B15 |
| Mast Type | Single / Duplex |
| Power | Battery |
| Operation Mode | Rider |
| Rated Capacity | 3306 lb. |
| Load Center | 23.6in. |
| Wheel Base | 54.1 in.1 |
| Service Weight | 3058-3740 lb. |
Wheel
| Wheel | PU |
| Drive Wheel | Φ9×2.8 in |
| Load Wheel | Φ3.1×2.8 in |
| Balance Wheel | 1+2/4 in |
| Number of Wheels, Drive/Load | 1+2/4 |
| Wheelbase,Drive | 23.1 in |
| Wheelbase Load | 42.8-56.9 in |
Size
| Max. Lift Height | 63in.1 |
| Free Lifting Height | 0 in. |
| Min. Mast Height | 81.2/87.1 in.3 |
| Max. Mast Height | in.4 |
| Min. Fork Length | 1.6 in.5 |
| Fork Length | 42.1 in. |
| Fork Size(HxW) | 1.4×3.9 in. |
| Fork Width | 47.7-61.9 in.10 |
| Aisle Width for Pallets 1000×1200(pedal folded/unfolded) | 95.2/111.4 in. |
| Aisle Width for Pallets 800×1200(pedal folded/unfolded) | 105.5/121.7 in. |
| Ground Clearance, Wheelbase Center | 1.4 in. |
| Overall Length(pedal folded/unfolded) | 77.8/94.7 in.8 |
| Overall Width | 32.3 in.9 |
| Turning Radius(pedal folded/unfolded) | 66.5/83. in.1112 |
Performance
| Travelling Speed, Laden/Unladen | 12/12.8 | mph. |
| Lifting Speed, Laden/Unladen | 4.7/9 in./s | |
| Gradeability, Laden/Unladen | 8/10 | % |
| Service Brake | Electromagnetic |
Drive
| Driving Motor/Power | KW | AC1.7 | ||
| Lifting Motor/Power | KW | DC3.0 | ||
| Steering Motor/Power | KW | AC0.3 | ||
| Battery Voltage | V/Ah | 24/320 | ||
| Battery Weight | lb. | 638 | ||
| Controller | lb. | Curtis-AC | ||
Technical Drawing
