Dry Core Drill | 8” Dia | Soft-Impact | Handheld | CS Unitec ESD 162
Price range: $958.00 through $1,852.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Sep 30 - Oct 03

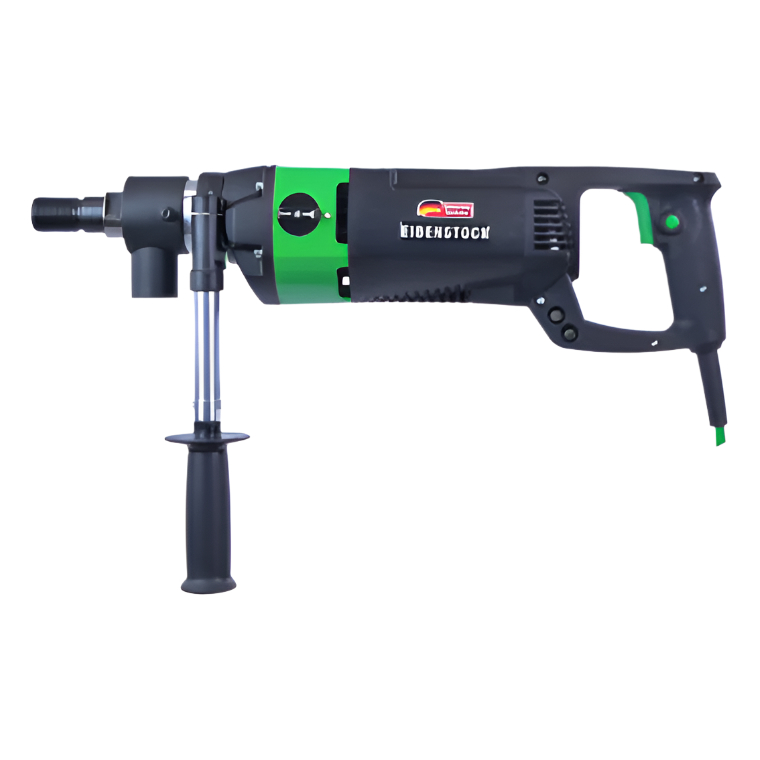

CS Unitec Soft-Impact Dry Core Drill Handheld ESD 162
Product Description
SOFT IMPACT DRY DIAMOND DRILLING up to 8″ Diameter
Model ESD 162 is a Dry Diamond Core Drill with a Dust Extraction Port built directly into the spindle. It easily connects to a vacuum for dust extraction. The drill stand mount allows the operator to switch from hand-held to stand-mounted drilling quickly. The drill stand is adjustable up to 45°. Core drill includes drill bit connections 5/8″ x 11 UNC and 1-1/4″ x 7 UNC.

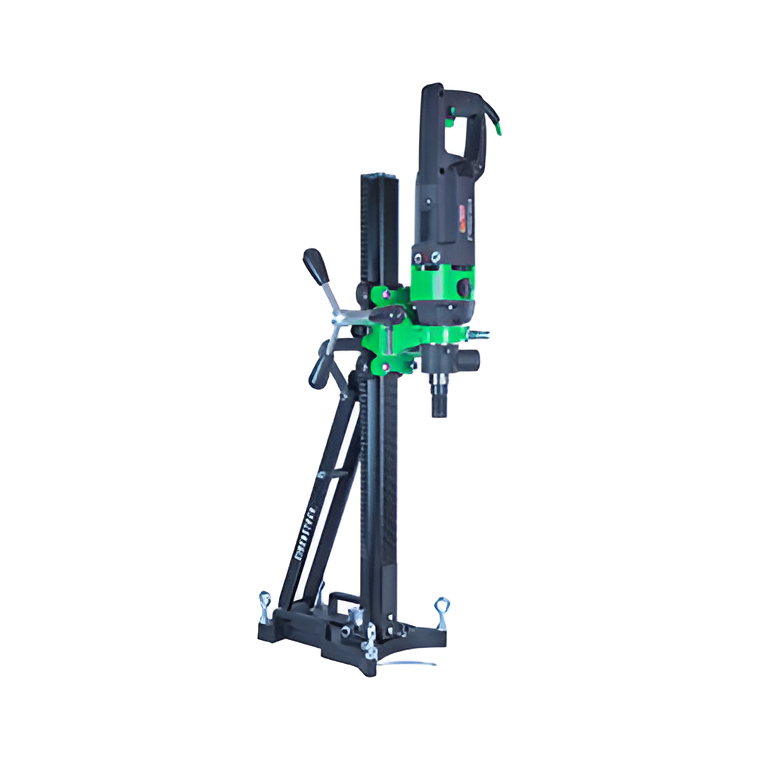

Optional accessories include anchor stand (with or without vacuum pump) and centering aid.
- NEW powerful innovation in core drilling, hand held dry core drill with a 19.5 Amp, 110 V, dry core drill motor.
- IHT soft impact system enables an optimized, high-frequency impact impulse output for faster drilling with high speed at 1000 RPM.
- Soft impact diamond core drill works for drilling up to 8″ in brick/block and concrete up to 6-3/8″
- Ergonomic design and anti-vibration handles for hand or rig guided drilling.
- Use in environments where wet drilling is not possible, dust extraction system included.
The newly engineered soft percussion dry core drill!
- 19.5 Amp, 110 V, dry core drill motor.

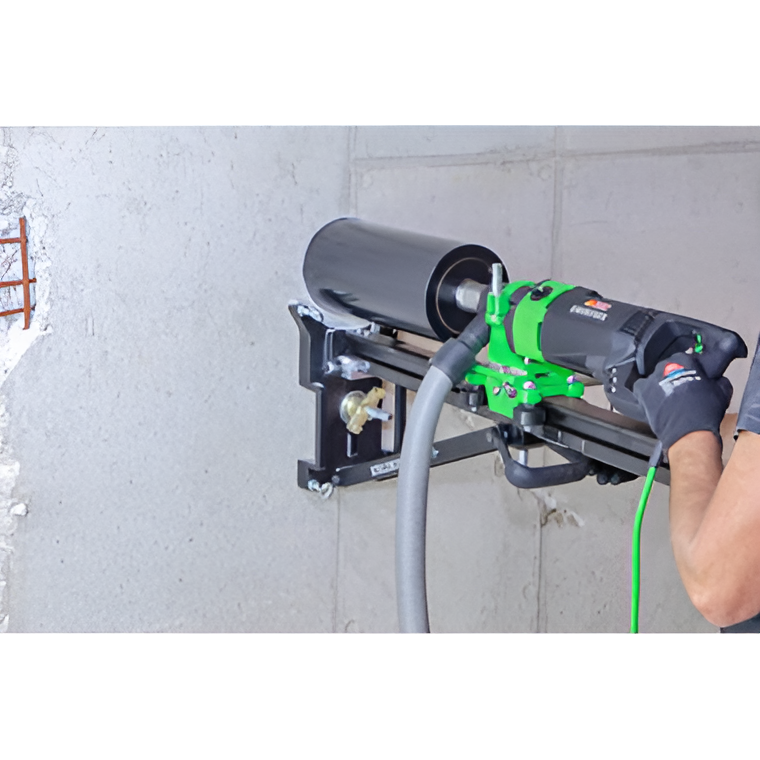

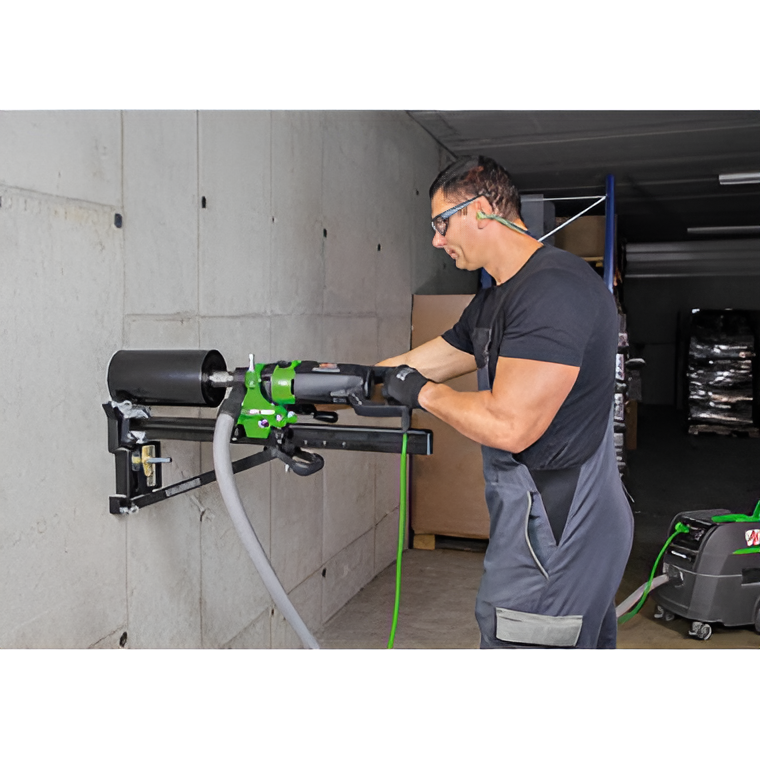

- Hand held or rig-mounted dry drilling
- Soft impact dry diamond core drill works on extremely hard materials.
- IHT soft impact system enables an optimized, high-frequency impact impulse output for faster drilling.
- Dry drilling up to 8″ in brick/block
- Dry core drilling concrete up to 6-3/8″
- High speeds, load speed 0-1000 RPM.
- Ergonomic design and anti-vibration handles.
Use
- Dry drilling in reinforced concrete, highly compacted sand-lime brick, masonry, and other hard materials
- Ideal for on-site conditions that don’t allow wet drilling (hollow ceilings, etc.)
Features
- Extremely fast drilling up to 6-3/8” dia. in reinforced concrete, and 8” dia. in brick/ block
- High drilling speeds of up to 1000 RPM
- Eliminate the hassle of wet drilling (water tanks & cans) while eliminating electrical hazards
- Specially designed IHT soft impact system to enable an optimized, high-frequency impact impulse output for faster drilling
- Can be used for hand or rig-guided drilling of wall and ceiling openings in sanitary, heating, and ventilation construction
- EDMC Pro – digital motor control with service and overload indicator, soft start, over-current cut-off
- Efficient dust extraction of health-hazardous mineral dust
- Connection for centering rod
- Specially engineered diamond drill bit allows for fast, and cool cutting while providing increased longevity
Specifications
| Power input | 19.5 Amp |
| Rated Voltage | 110 V |
| Load Speeds (RPM) | 0-1000 RPM |
| Drilling Diameter | 6-3/8″ / 8″ |
| Spindle Connection | 1-1/4″x7 UNC 5/8″x11 UNC |
| Collar Diameter | 60 mm |
| Weight | 15 lbs (motor only) |
| Supplied In | A molded carrying case with dust extraction port & 5/8″ x 11 UNC adapter |
