Atlas Automotive Equipment FM9SL In-Ground Full-Rise Scissor Lift – 9,000 lb Capacity Commercial Grade Auto Lift | Model ATTD-FM9SL

$6,360.00

Estimated Delivery If Item Is In Stock
Oct 06

Ordered After you place the order, we will need 1-3 days to prepare the shipment

Oct 07 - Oct 09

Order Ready Orders will start to be shipped

Oct 18 - Oct 21

Delivered Estimated arrival date range: Oct 18 - Oct 21

Description

Atlas Automotive Equipment FM9SL In Ground Full-Rise Scissor Lift 9000 lb. Capacity ATTD-FM9SL


Product Description

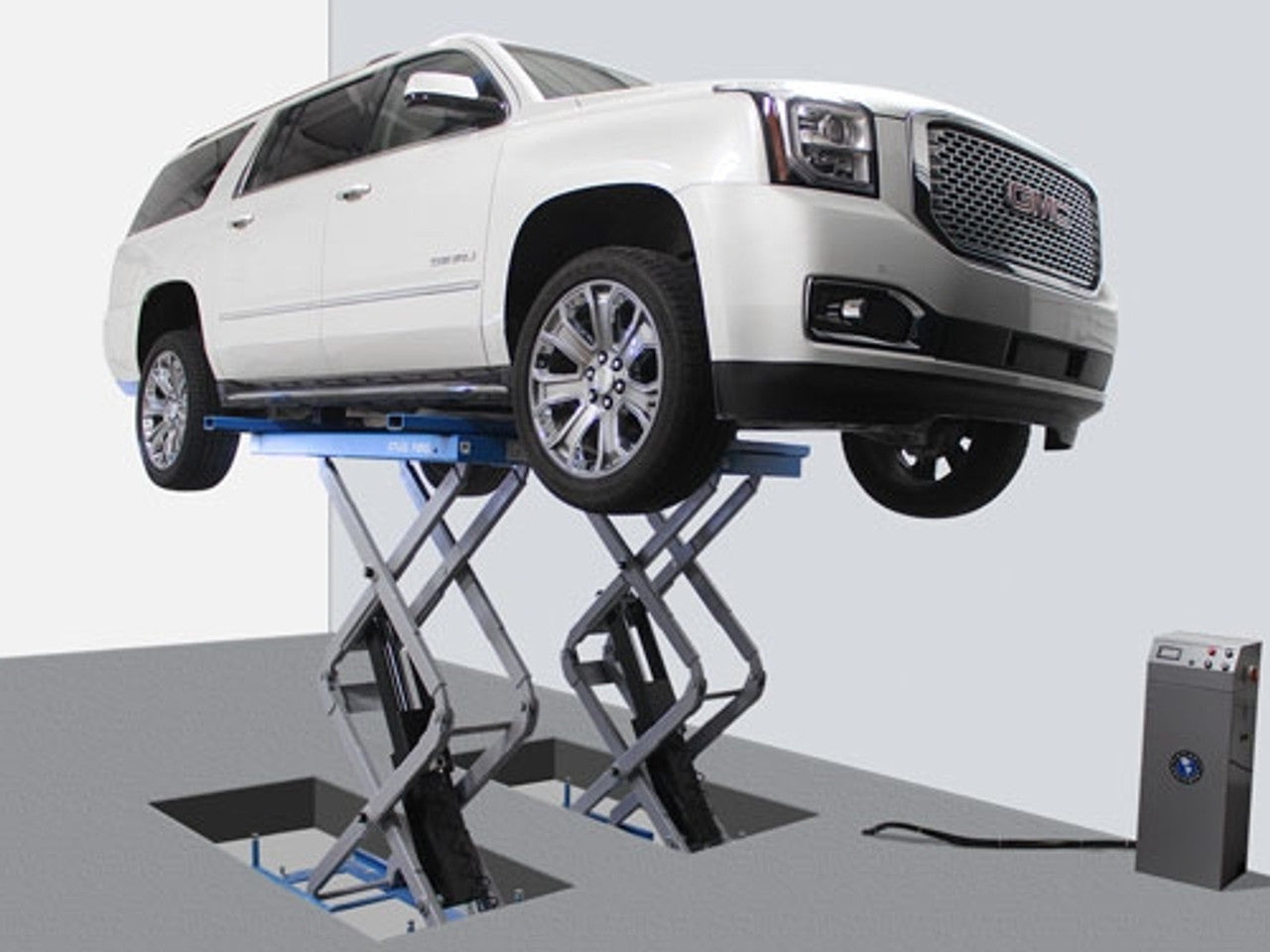

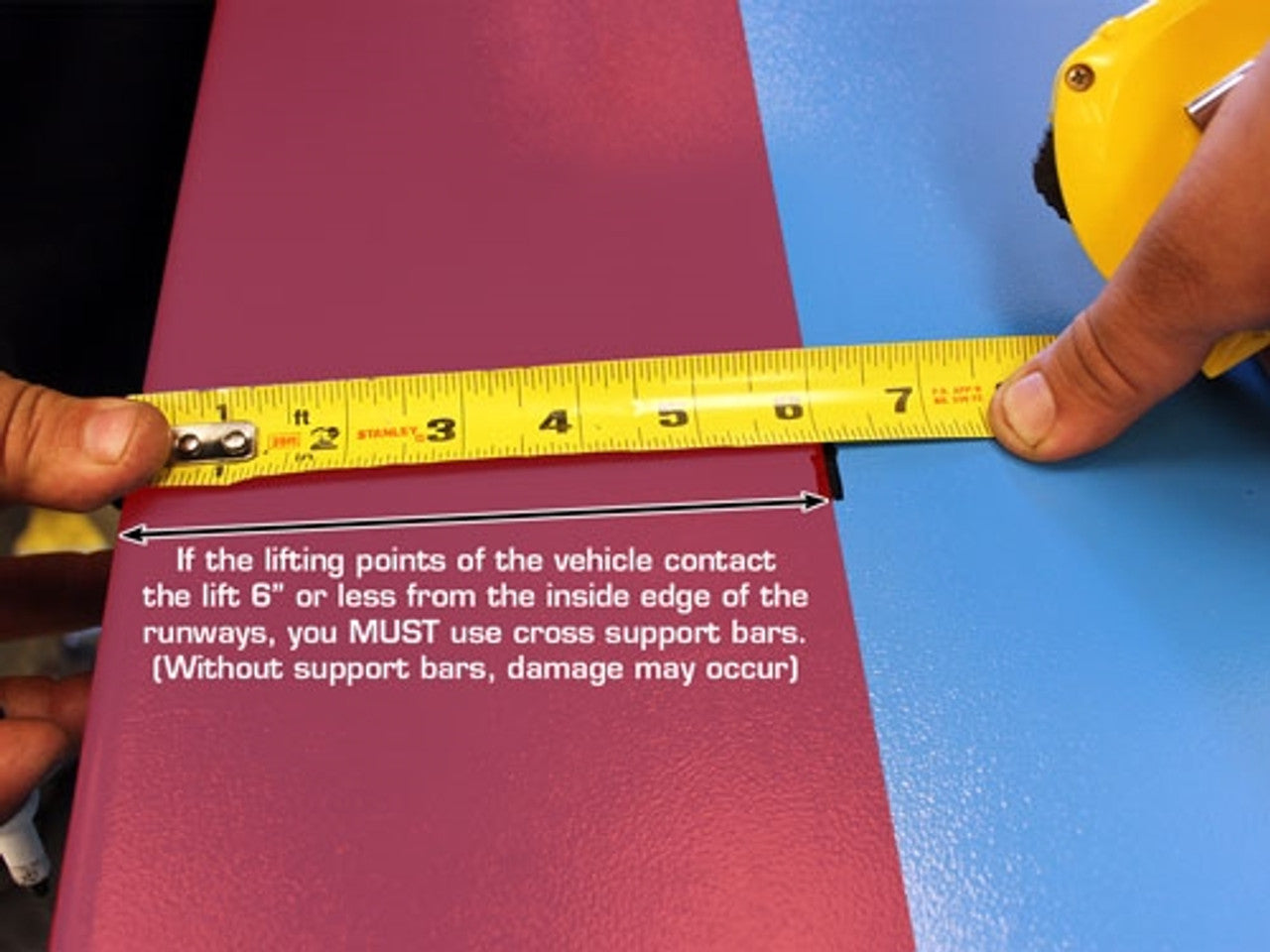

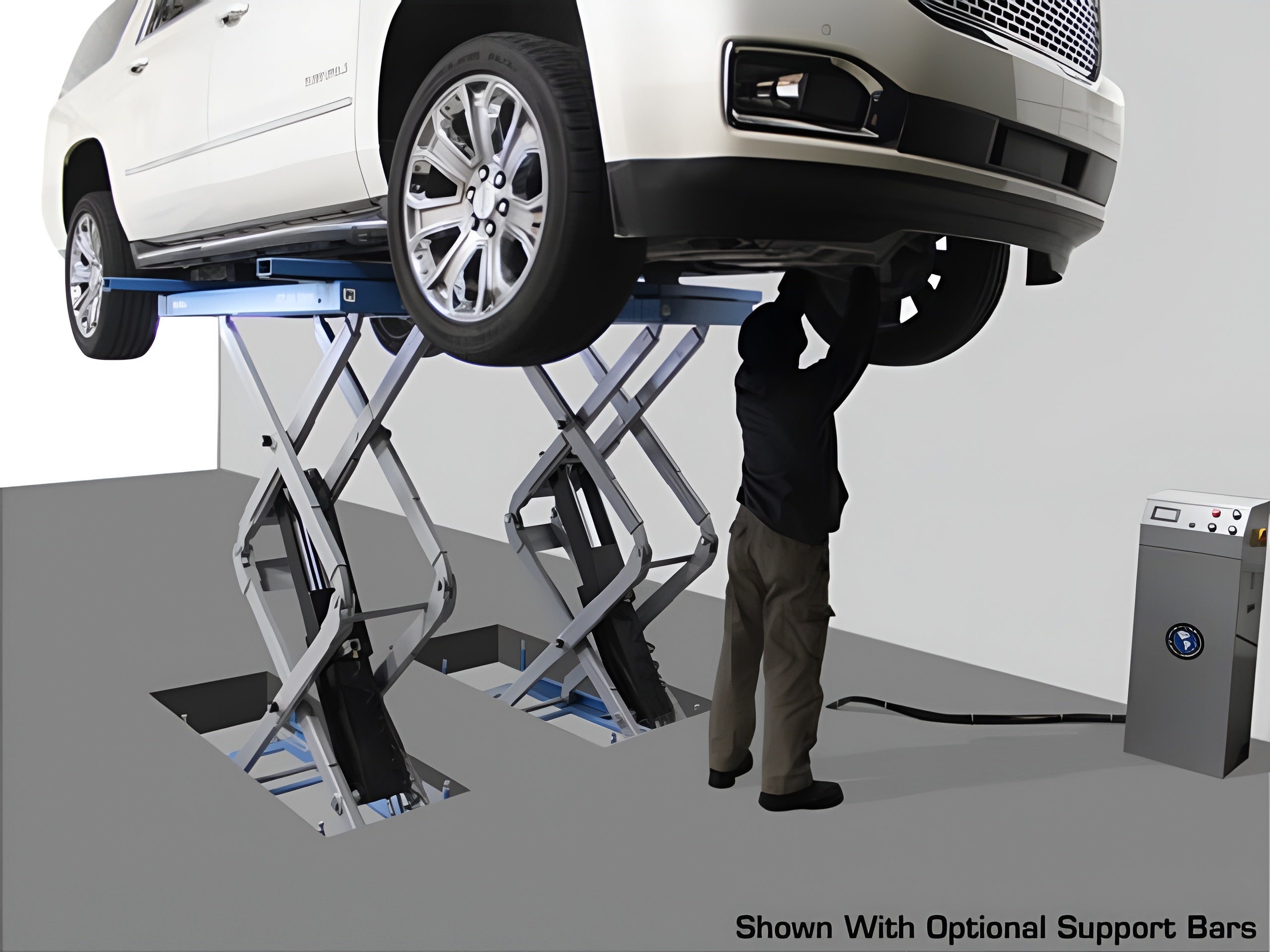

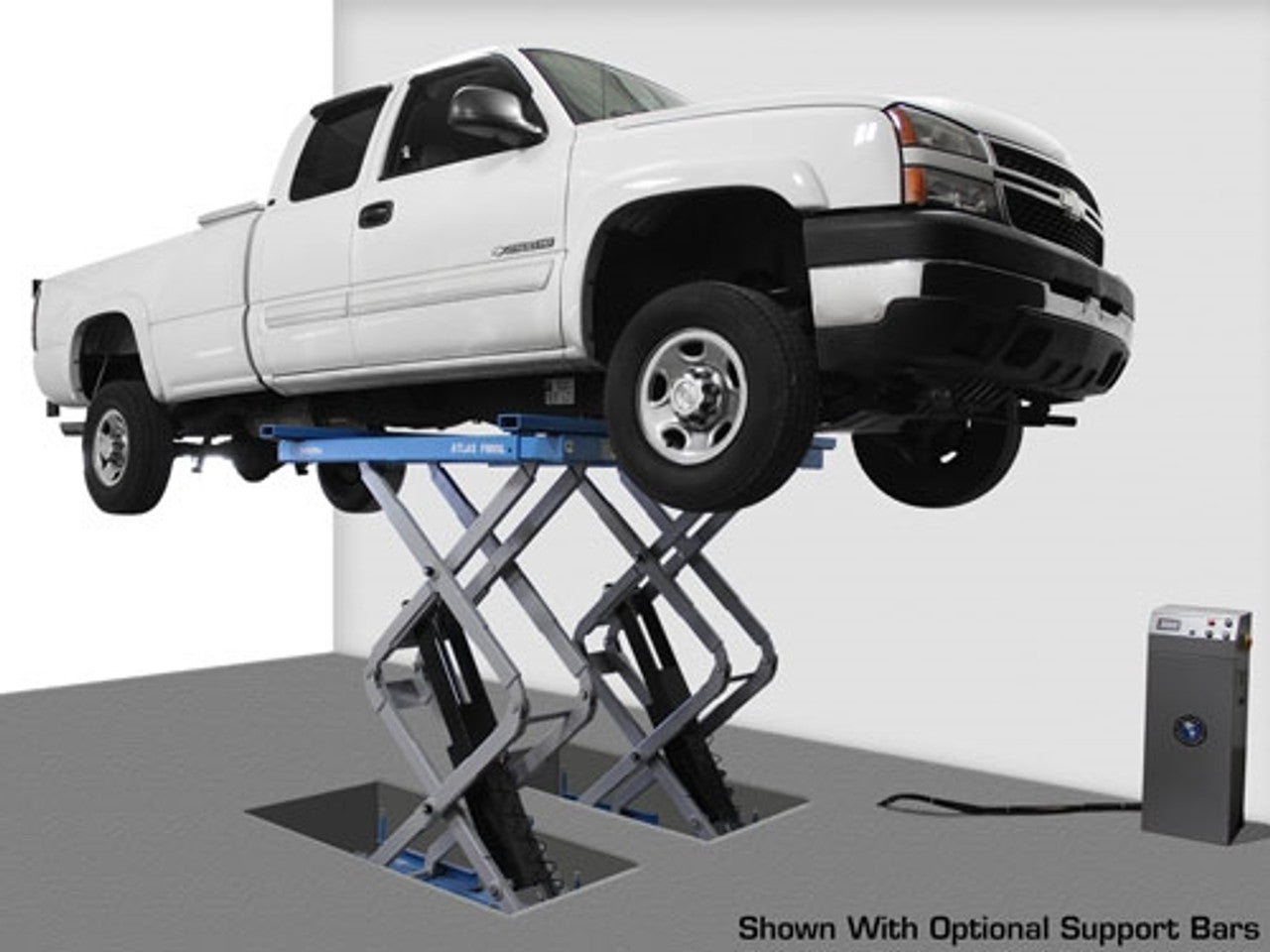

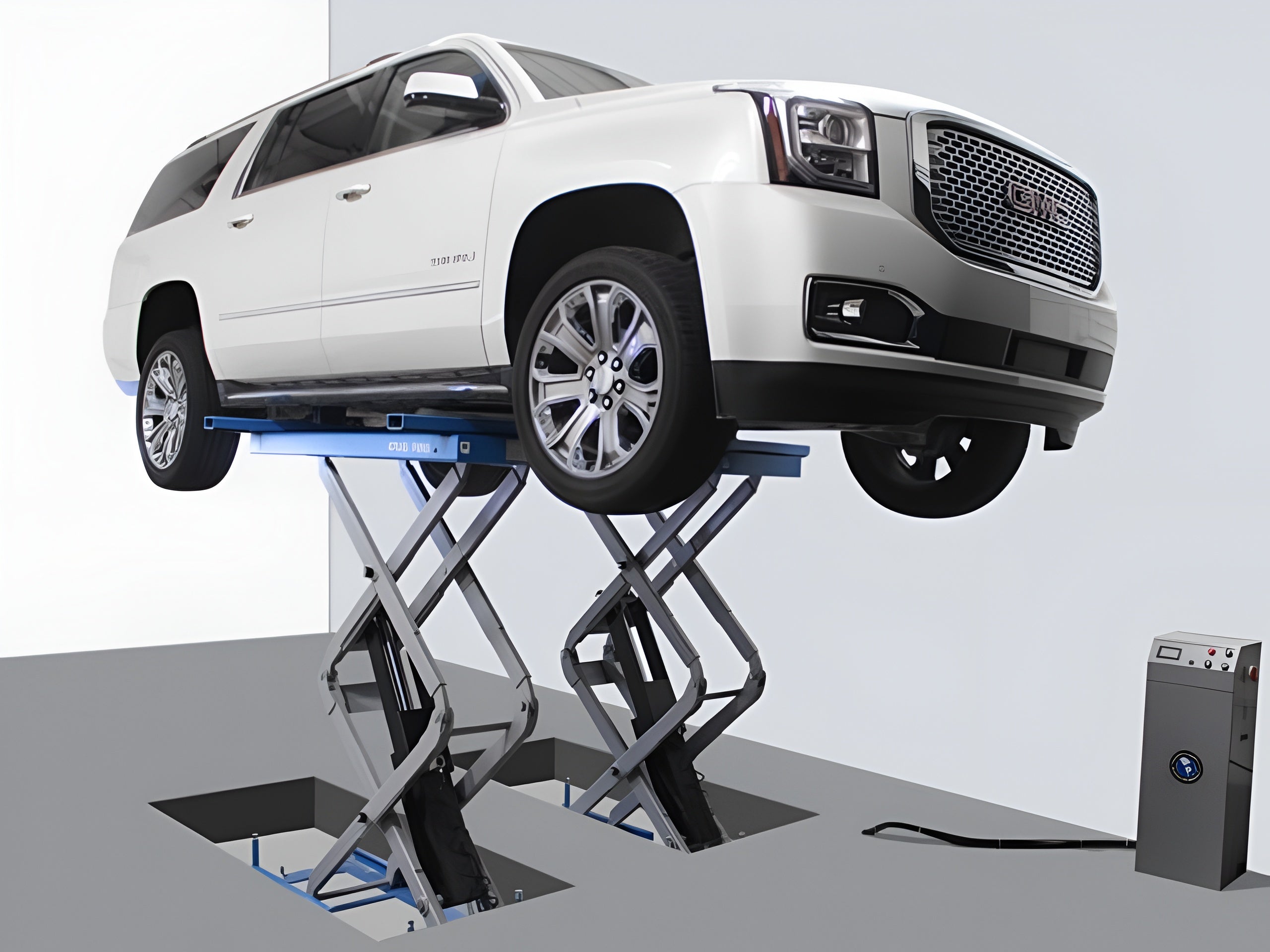

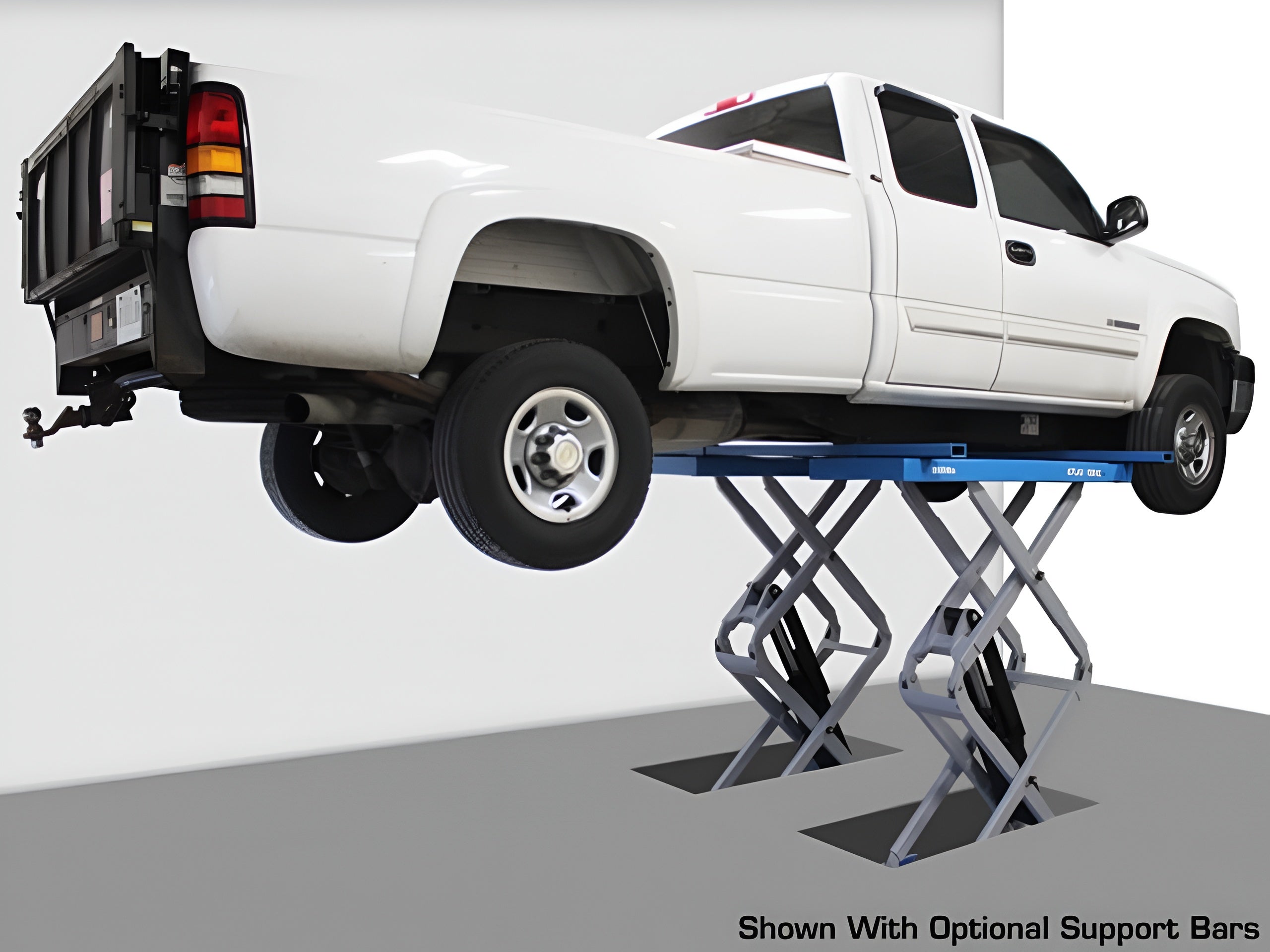

The Atlas FM9SL 9,000 lb. flush mounted scissor lift is the perfect choice for those service facilities that need to maximize the number of vehicle lifts per service area square foot. If you like the “clean floor look” for your service department (no above ground lifts), then the Atlas FM9SL flush mounted scissor lift offers the perfect alternative. Unlike “old school in-ground” lifts, the flush mounted lift requires minimal excavation and the electric/hydraulic power unit is easily accessed during periodic maintenance. The flush mounted platforms offer no “above ground” obstruction and the platforms can be “driven over” from any direction so that a vehicle may be properly positioned in the tightest of spaces. The Atlas FM9SL has both front and rear platform extensions that can be used when lifting a long wheel base pick-up truck. As with any scissor lift that is completely open (no cross support bar in the front or rear to keep the platforms level), the operator must make sure that the vehicle’s frame is positioned at least 6 inches from the inside of the platform. If too much weight is positioned near the edges of the platform (closer than 6 inches from the inside edges), the platforms may become “pigeon toed” and damage may occur. We sell the Atlas scissor lift support bar kit to disperse the narrow frame weight over the entire platform lifting surface



Features

  • 9,000 lb. Capacity
  • Commercial Grade
  • Full Rise Lift
  • Adjustable Width
  • Platforms Extend, Both Ends

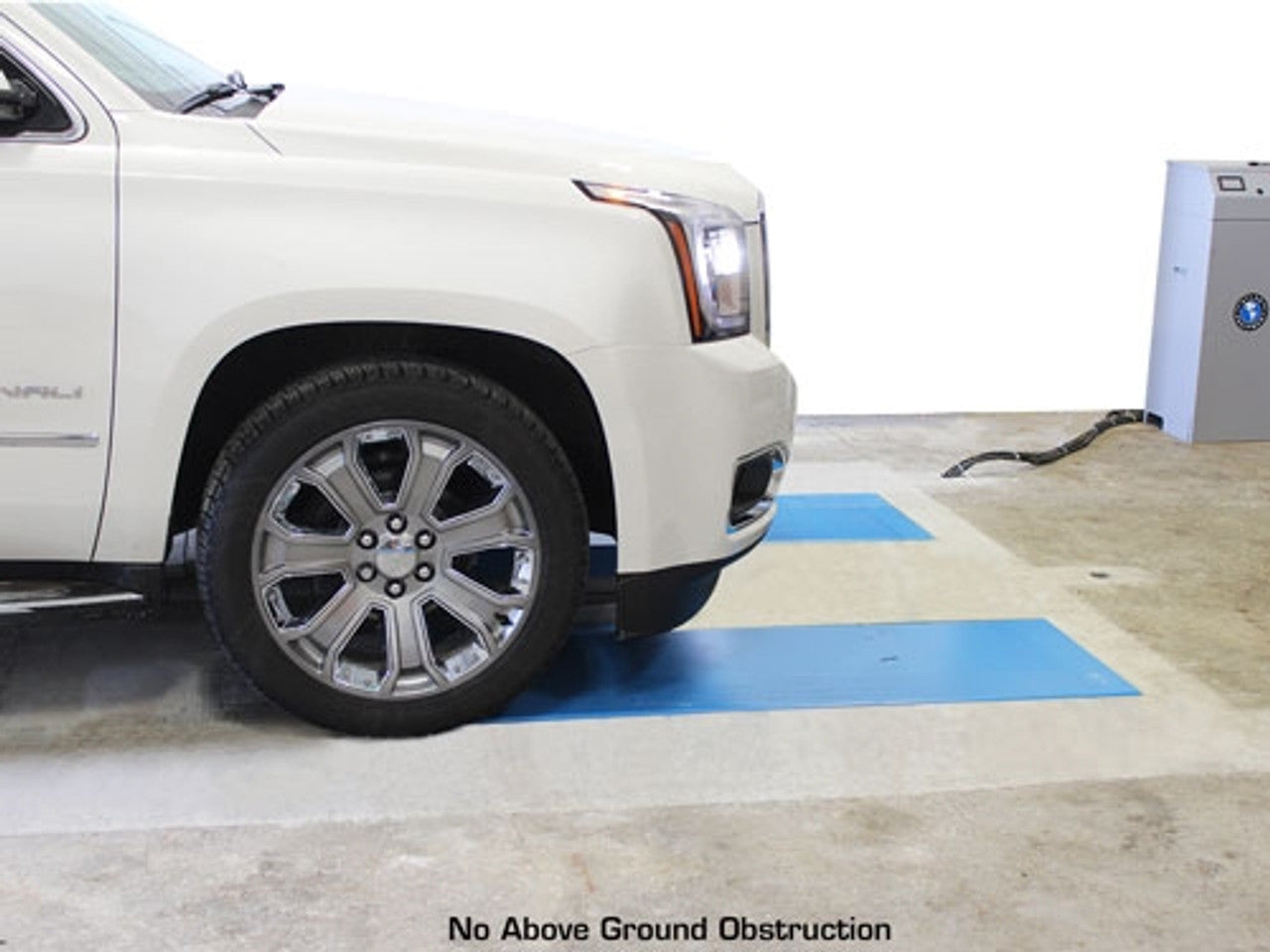

  • No above ground obstruction
  • CE Certified

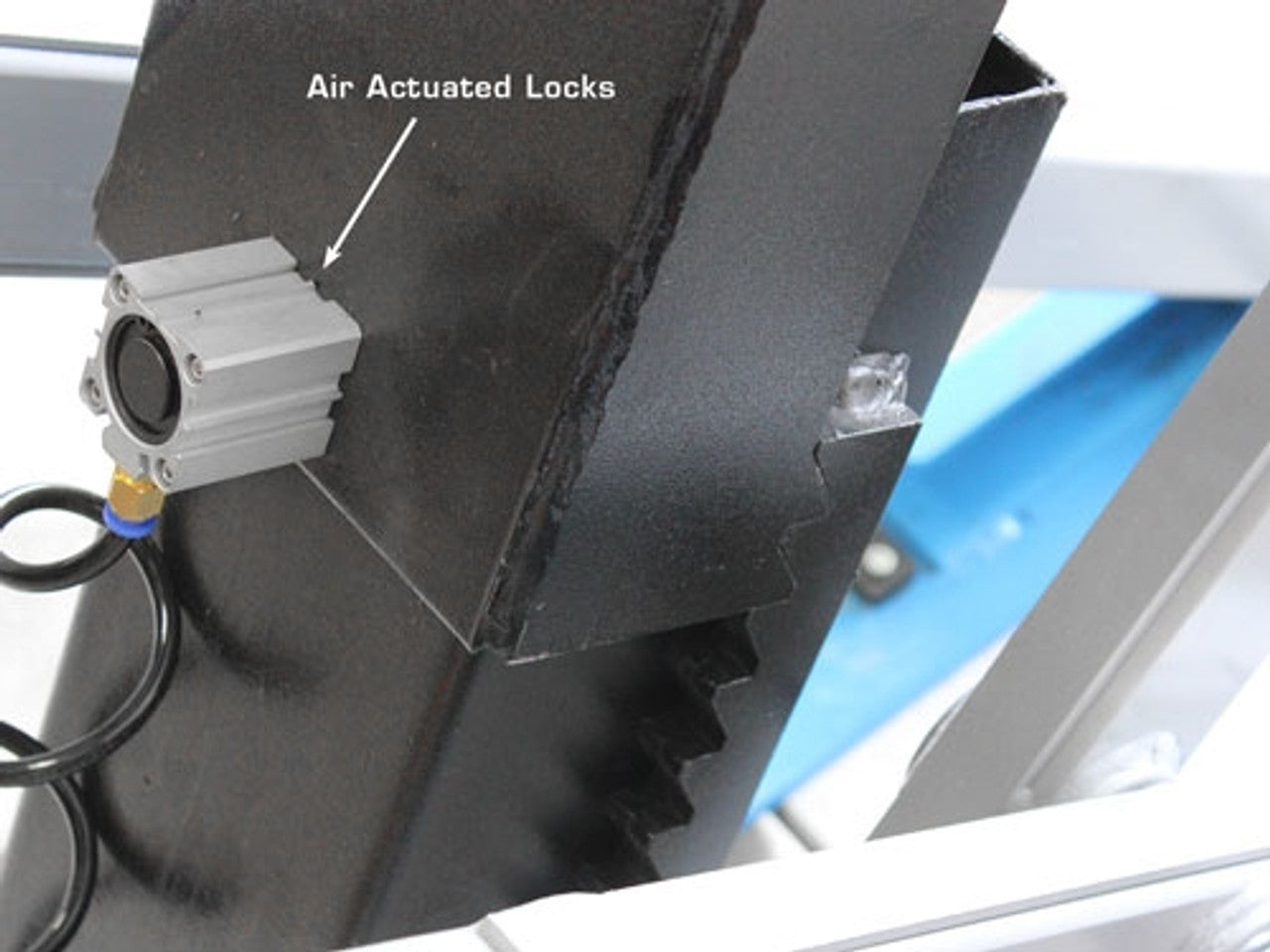

  • Air-Operated Single Point Lock Release (External Air Supply Required)
  • Open Center Design

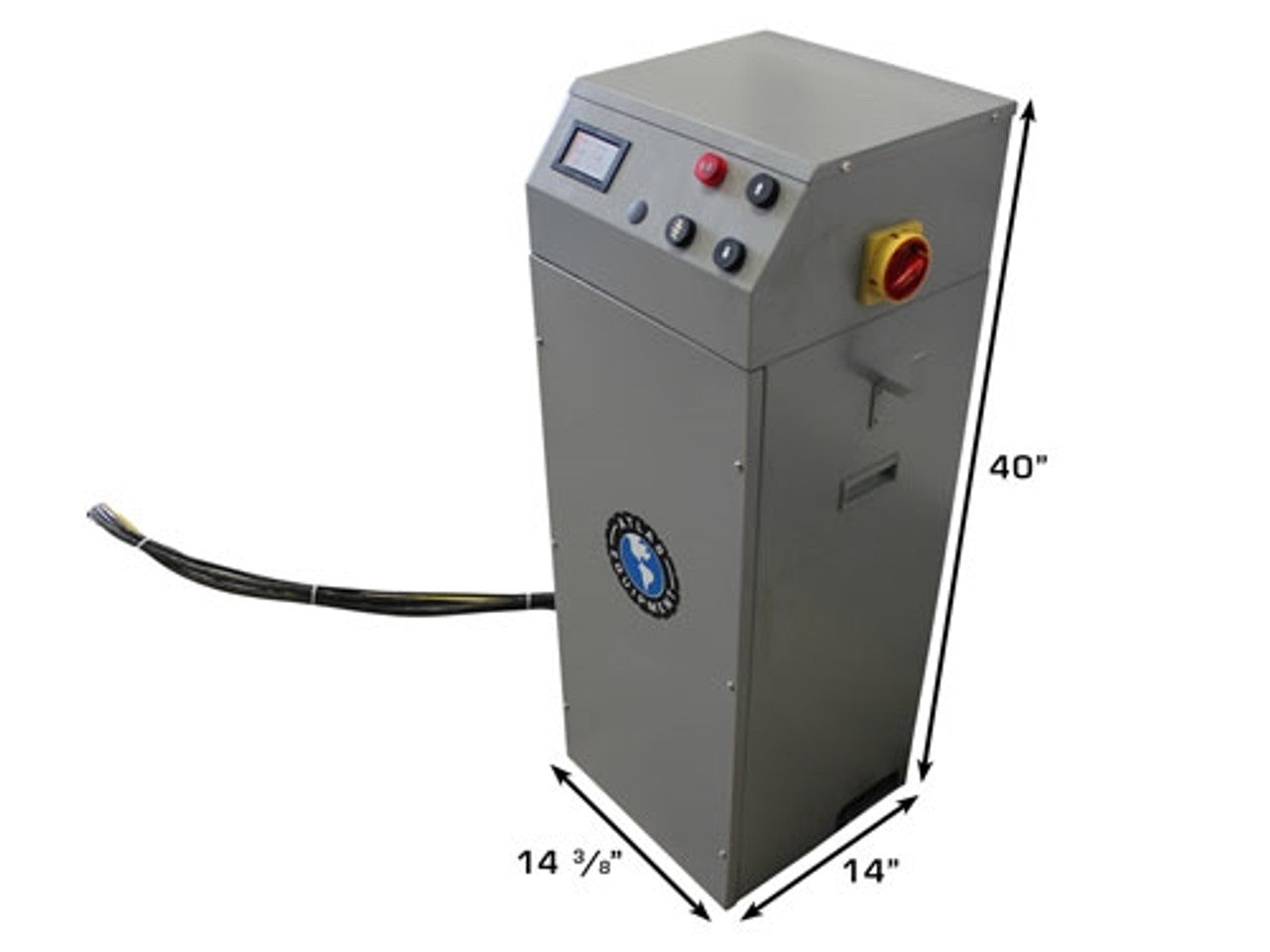

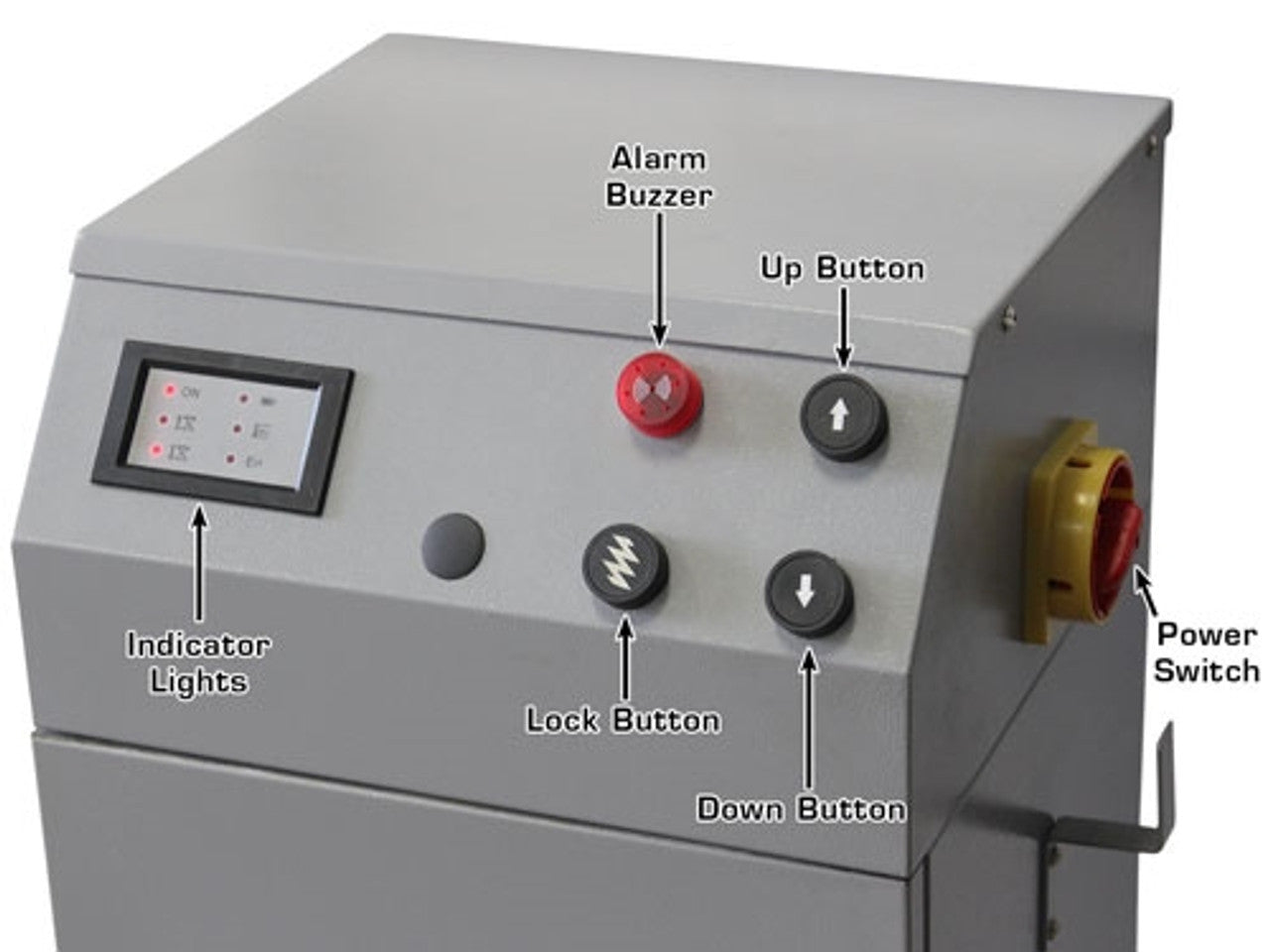

  • Separate Self-Contained Control Unit
  • Grease Zerk Fittings at each Hinge Point

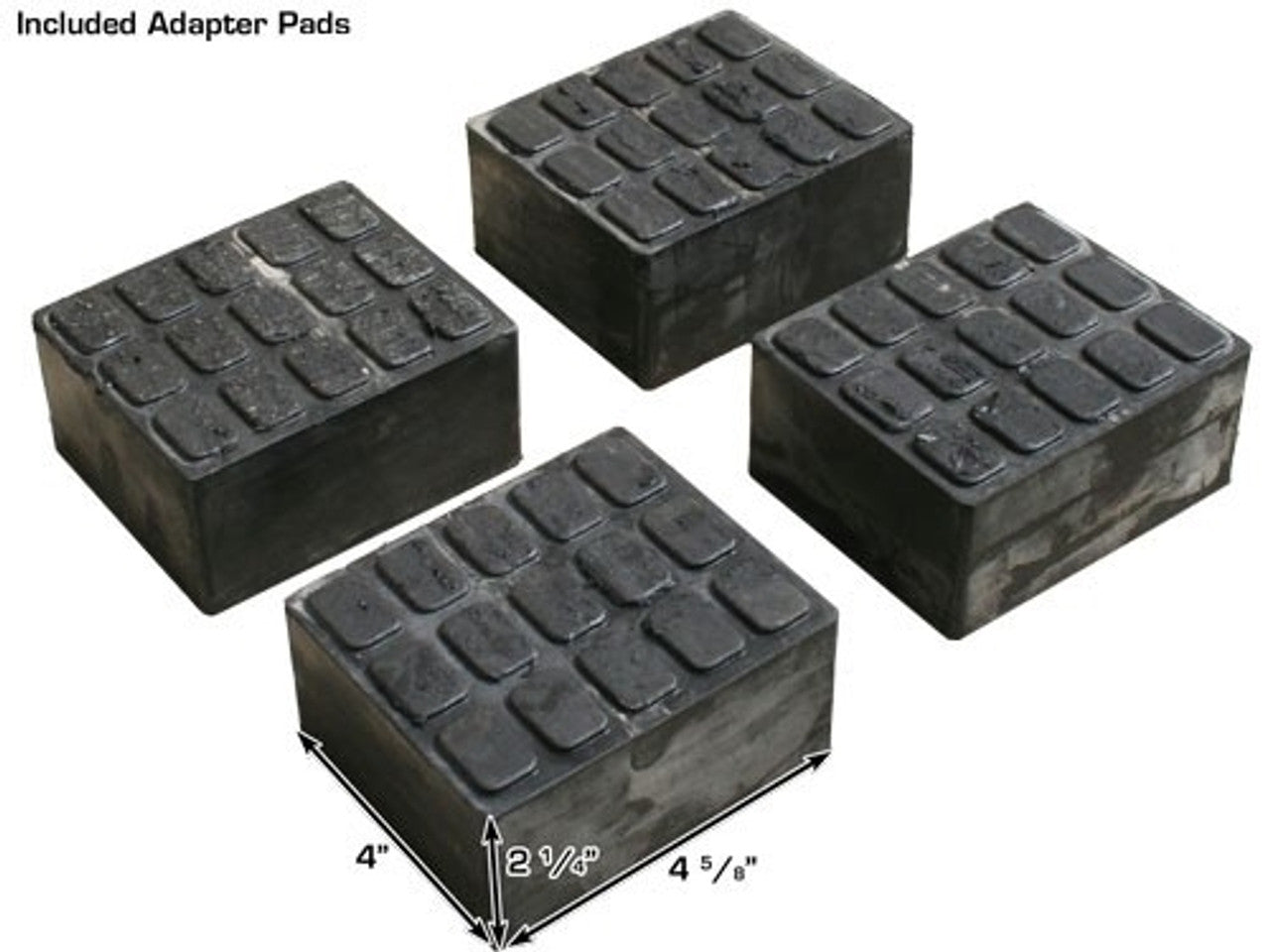

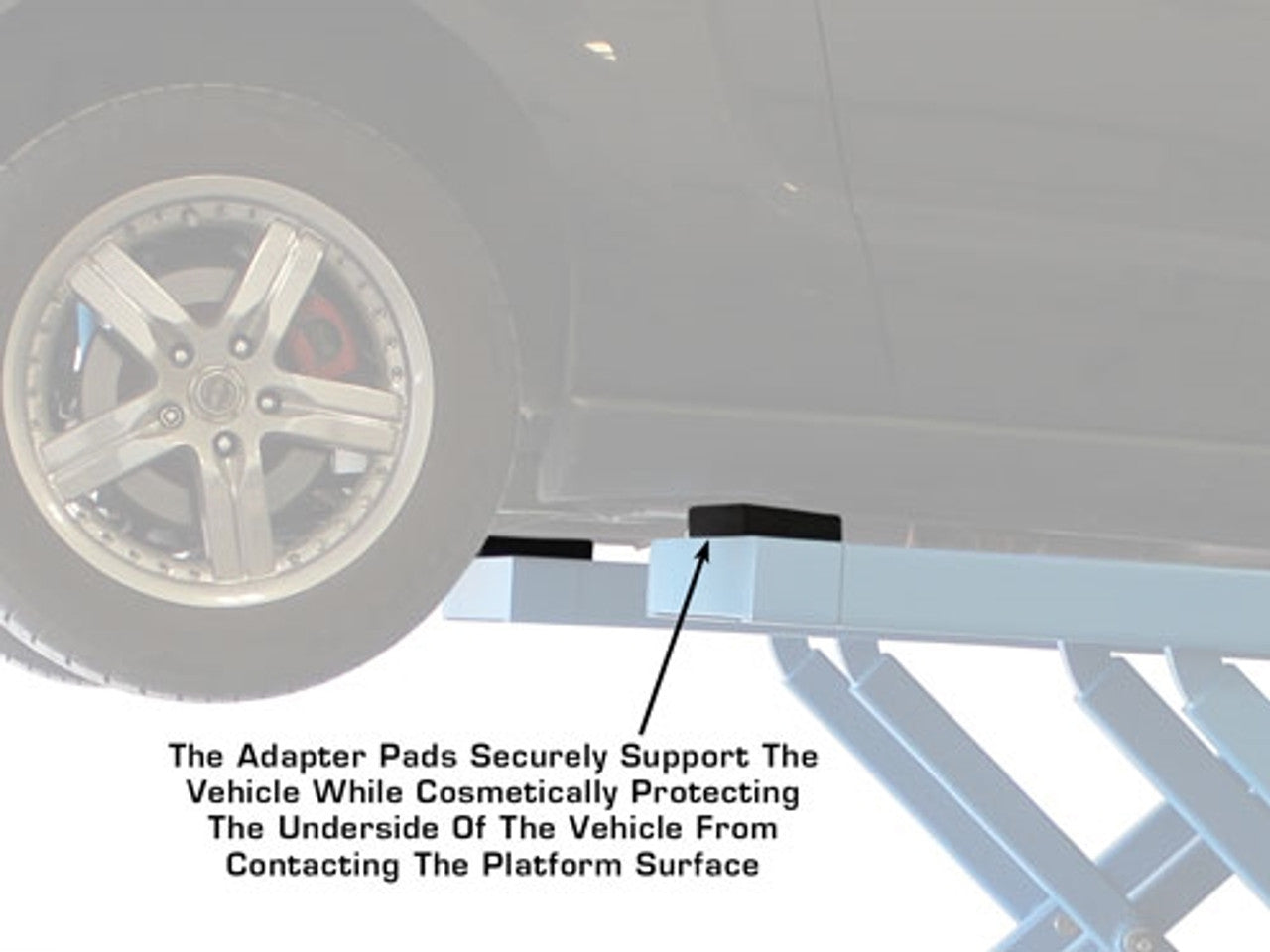

  • Heavy Duty Rubber Lifting Blocks Included
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 2,025 lb.
  • 1 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only



Atlas FM9SL Specifications

  • Lifting Capacity: 9,000 lbs.

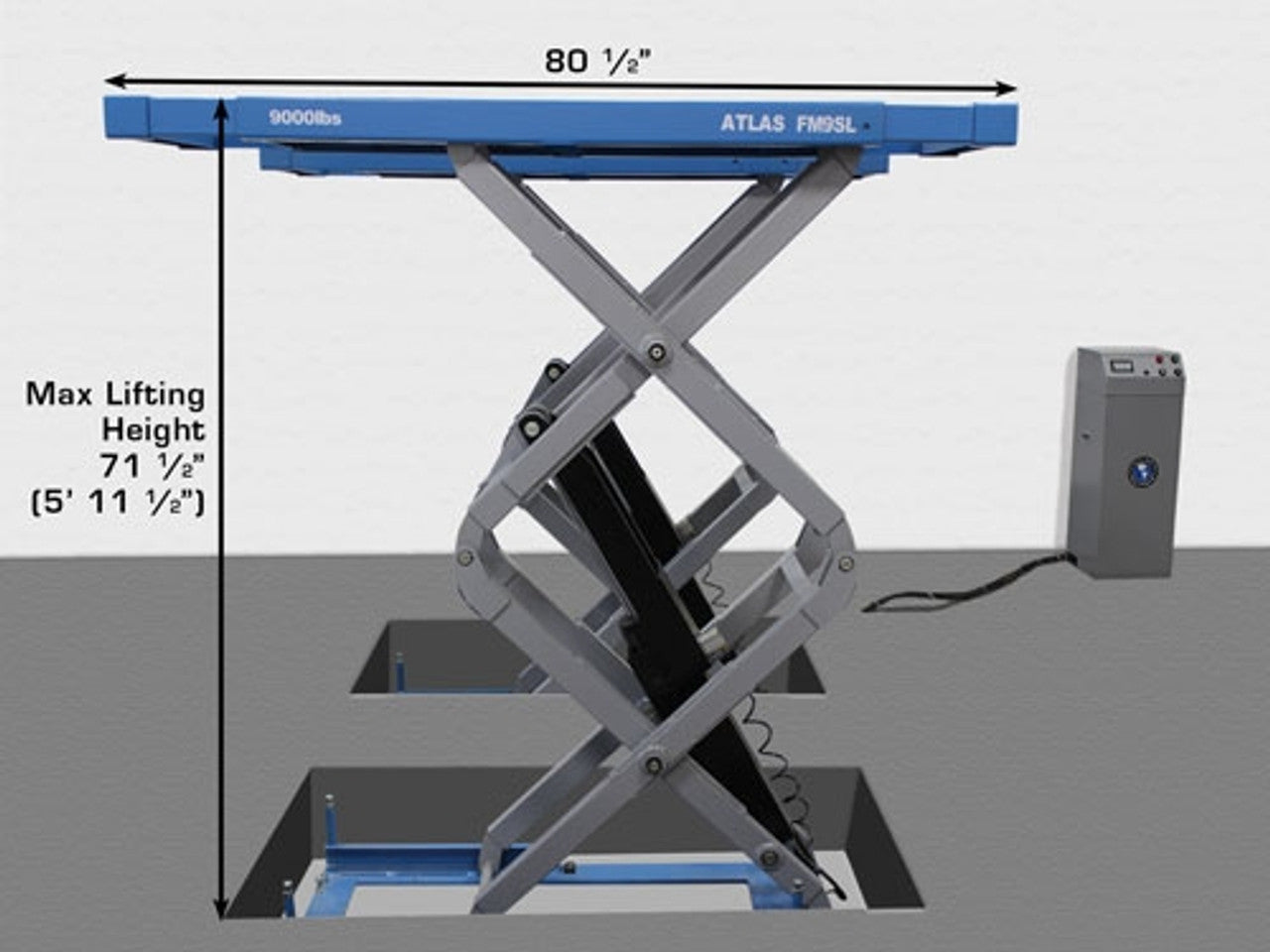

  • Max Lifting Height Above Floor w/ Standard Lifting Blocks: 73 3/4″ (6′ 1 3/4″)

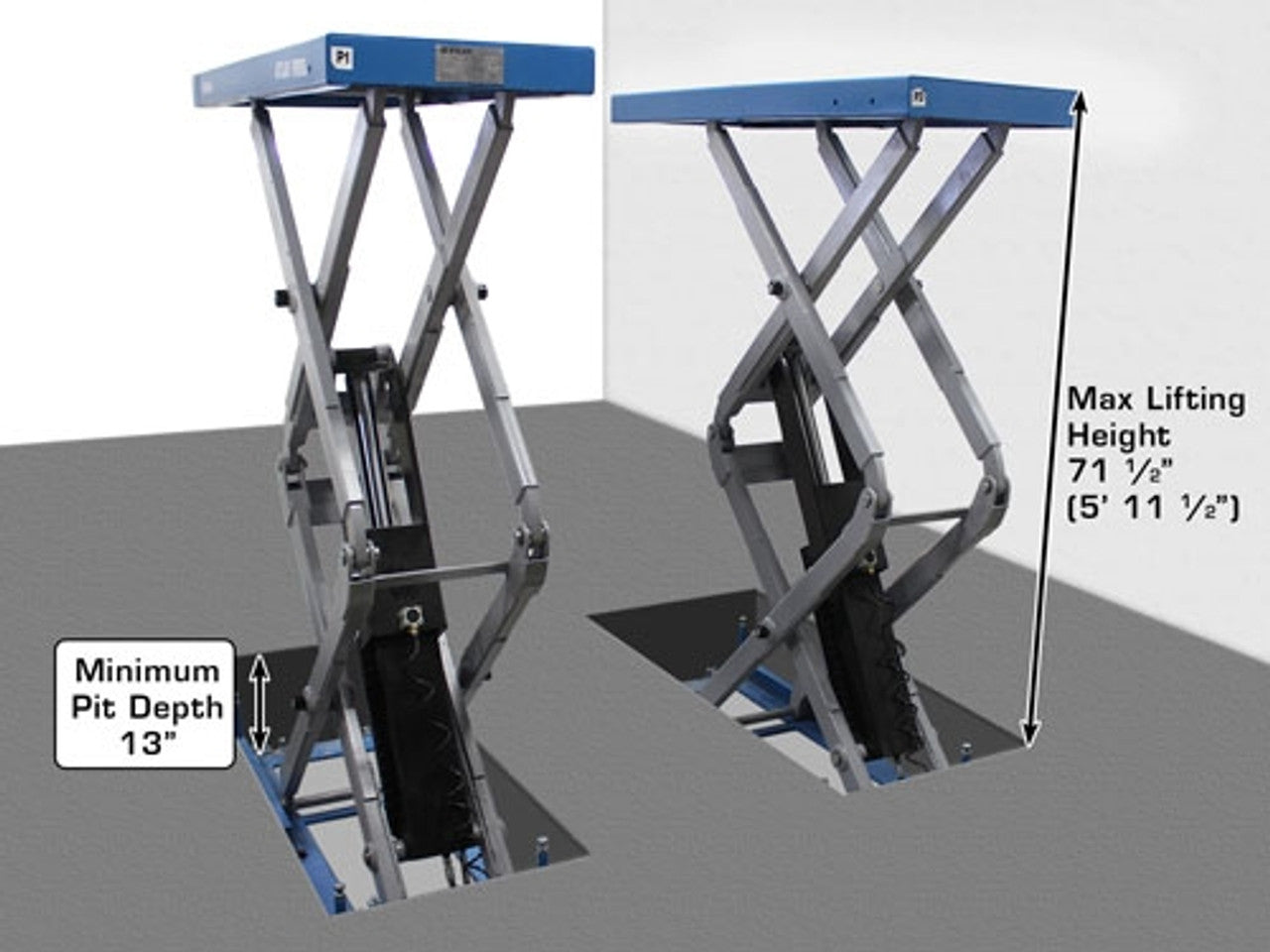

  • Max Lifting Height Above Floor w/o Standard Lifting Blocks: 71″ (5′ 11″)
  • Overall Length w/ Extensions out: 80″ (6′ 8″)
  • Overall Length w/ Extensions in: 64″ (5′ 4″)

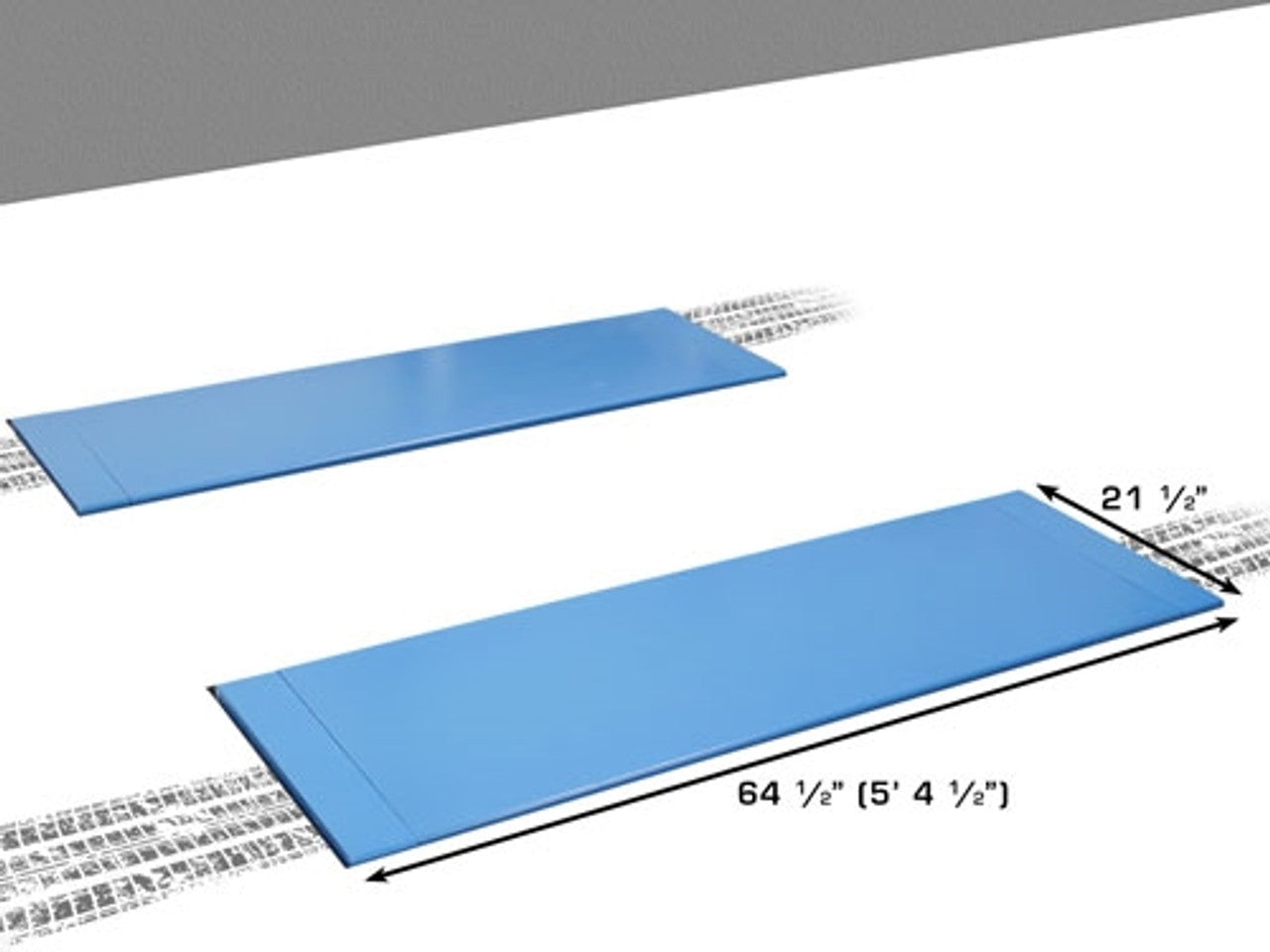

  • Platform Width: 21 “

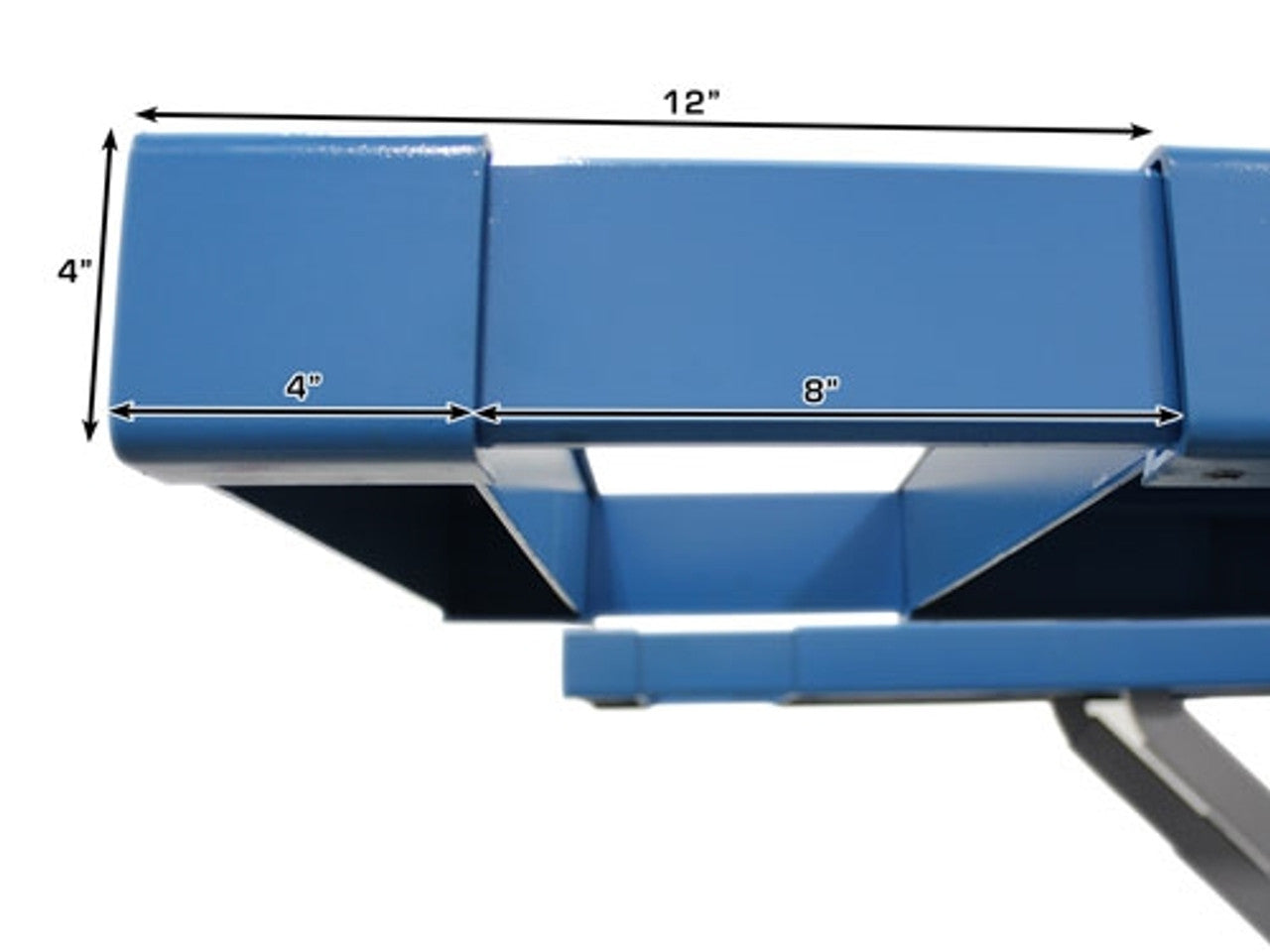

  • Platform Thickness: 4″
  • Minimum Lowered Height (In Ground): 13″

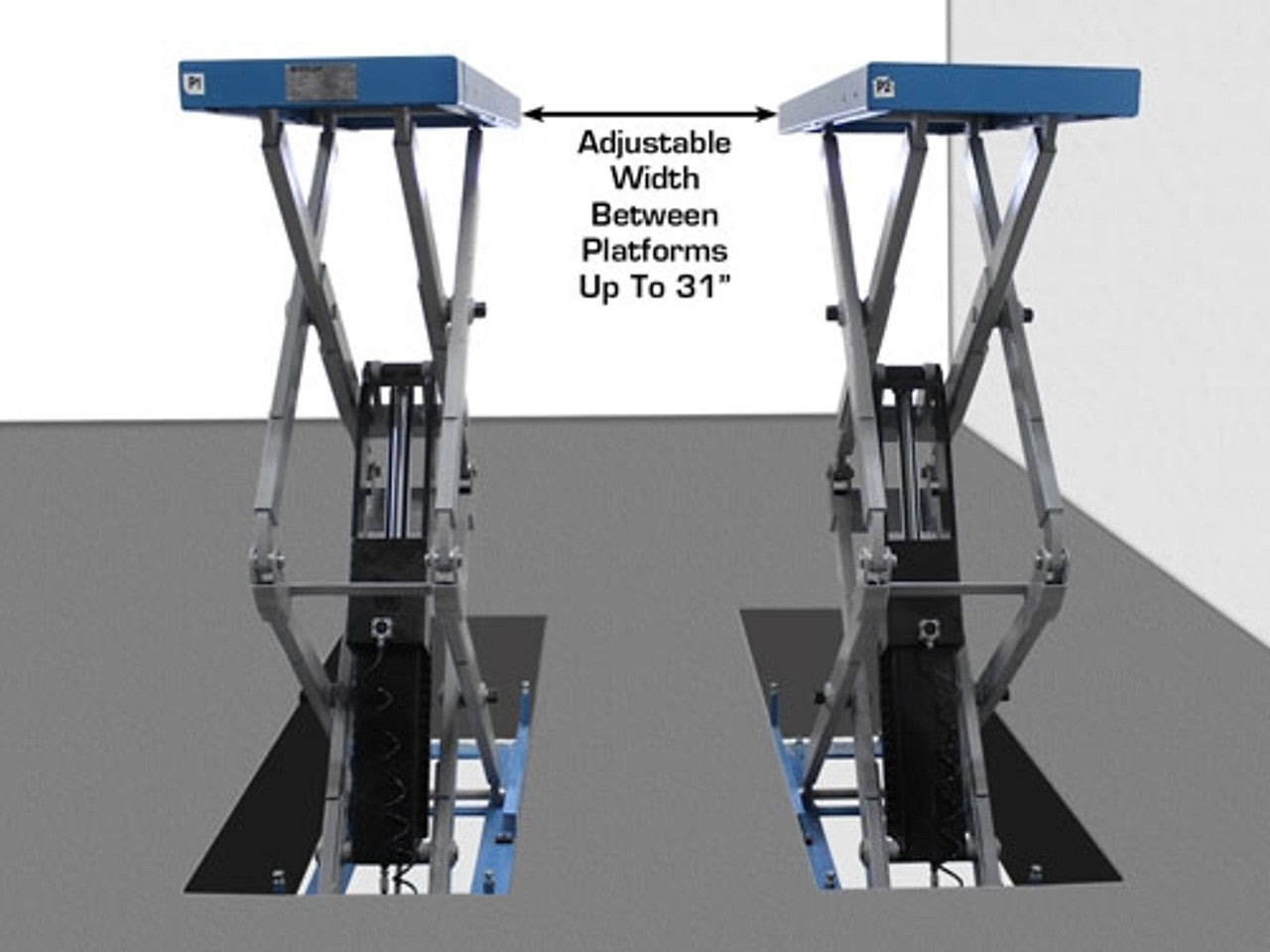

  • Width Between Platforms: Adjustable up to 31″
  • Air Requirement: 90-120 PS(
  • Power Unit: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 2,025 lbs.

Product Documents

Atlas FM9SL Manual
Atlas FM9SL Parts Breakdown
