ANSED KANE-EGA5 5-Gas Exhaust Analyzer Kit w/ Printer | Portable Garage Tool
$3,326.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 07 - Oct 10

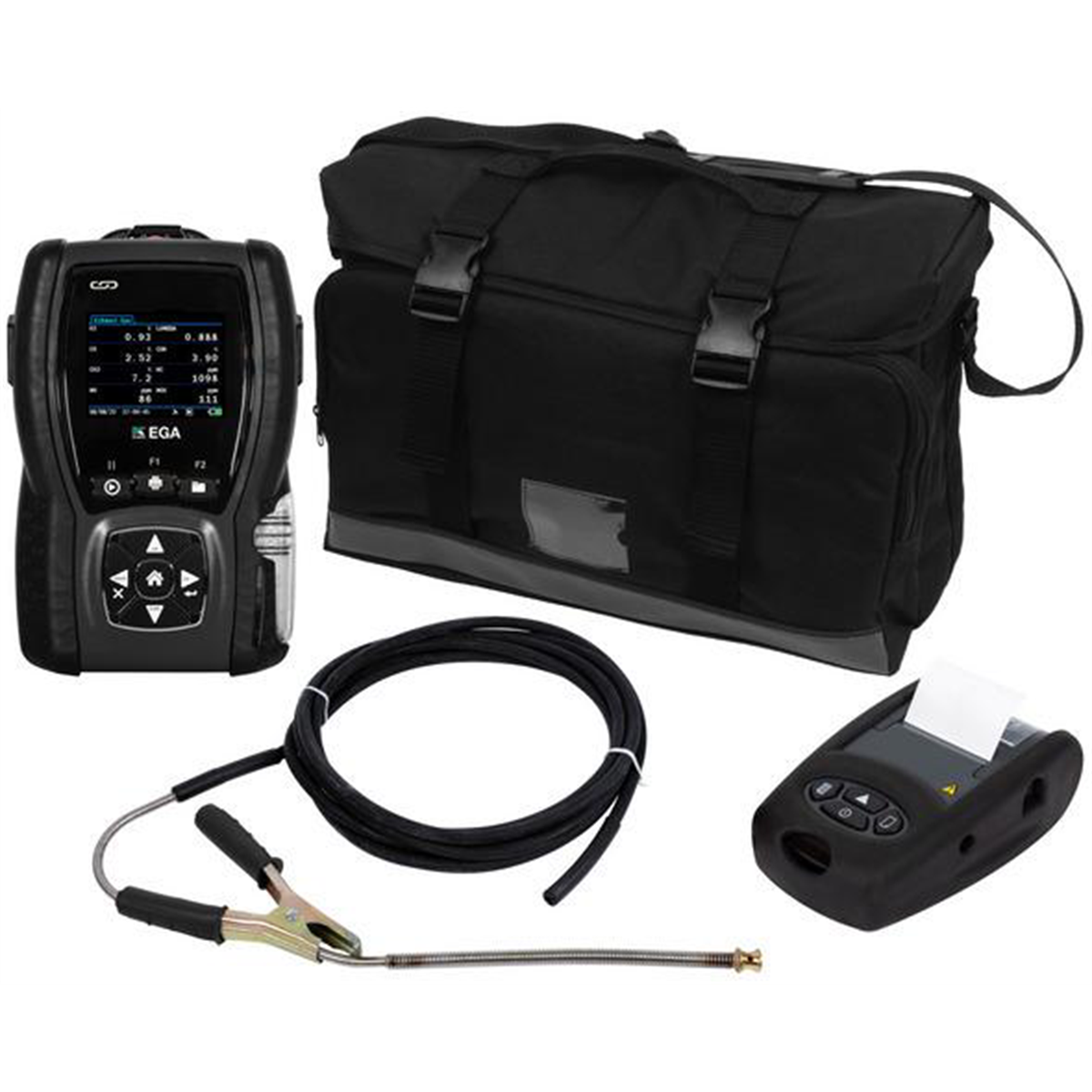

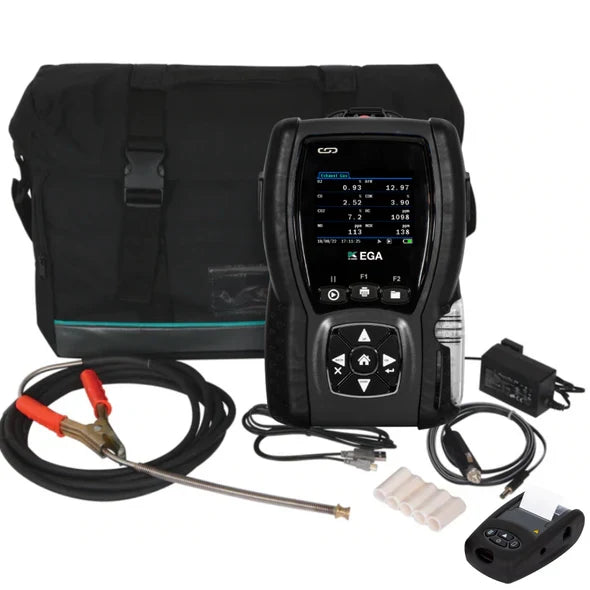

Ansed Diagnostic Solutions ANSED 5-Gas Diagnostic System Kit with Printer ANSED-KANE-EGA5-PR
Product Description
The process of diagnosing general performance, drivability, no code and catalytic converter issues can be complex and frustrating. Modern OBDII systems may miss problems too small or infrequent to set a code. In seconds, the Exhaust Gas Analyzer will detect problems too marginal to be detected by an onboard computer or a scan tool. Experienced technicians agree that an Automotive Exhaust Gas Analyzer is an integral part of their diagnostic toolbox. One quick test of the exhaust gases emitted from the tailpipe helps reduce diagnostic time, verify repairs are complete, reduce comebacks, and increase overall profitability and customer satisfaction. With the ANSED Exhaust Gas Diagnostics System, there are no more charts and graphs, no more black magic calculations. The ANSED Exhaust Gas Diagnostics Software interprets the exhaust gases and their interactions and provides a top-down list of suggested problems and solutions in order of probability. And, KANE LINK to connect to KANE LIVE apps and to the optional KANE-IRP3 Infra-red printer. The ANSED Exhaust Gas Diagnostics System is the most complete and comprehensive solution on the market today. Tests HC, O2, CO, CO2, NOx and Lambda; All readings LIVE, except NOx and LAMBDA calculated; Self-calibrating, no cal-gas required; Dyno not required for NOx testing. Includes KANE-IRP3 IR Portable Thermal Printer.
Features
- Key Features: Large Graphic Display, Easy to read all gases and Lambda on one screen, no scrolling
- Ergonomic Design Keypad, Simple and easy to navigate and use, Bluetooth or USB Cable ready, Links analyzer easily to PC to use with KANE LINK
- Variable Pump Speed, Allows for adjustment of the pump speed, which can then improve battery life

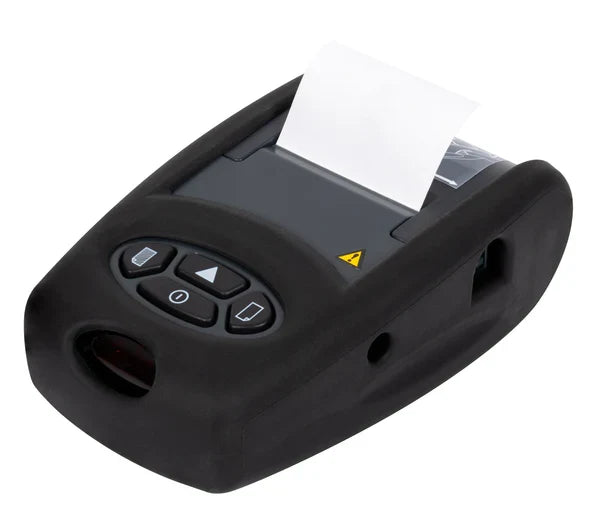

- Includes Hi-Speed Print Capability, Use with the KANE-IRP3 hi-speed printer with rechargeable battery
- Probe, Equipped with the EP1 Hi-Temperature Probe, with 4m Neoprene tubing, 350mm insertion depth. Key Benefits: Completely portable, handheld, Sample exhaust gas in the shop or on a road test, NOx testing without a dynometer
- Low cost to operate and maintain, Operates off internal rechargeable battery, Self-calibrating, no cal-gas required, Water trap and filter visible
- Fast diagnostic times.
The KANE Gas Analyzer
- Tests HC, O2, CO, CO2, NOx and Lambda
- All readings LIVE, except NOx and LAMBDA calculated
- Self-calibrating, no cal-gas required
- Dyno not required for NOx testing
Completely Portable
- Easy to hold in hand
- Sample exhaust gas in the shop or on a road test
- NOx testing without a dynometer
Low cost to operate and maintain
- Operates off internal rechargeable battery
- Self-calibrating, no cal-gas required.
- Water trap and filter visible
- Fast diagnostic times
Specifications
| Parameter | Resolution | Accuracy | Range |
| Carbon Monoxide (High Range NDIR) |
0.01 % | +/- 5 % of reading *1 | 0-10 % |
| Oxygen | 0.01 % | +/- 0.3 % volume *1 | 0-25 % |
| Hydrocarbon (NDIR) |
1 ppm |
+/- 5 % of reading *1 +/- 12 ppm volume *1 |
0-5000 ppm
Over-range: 10,000 ppm |
| Carbon Dioxide (NDIR) |
0.1 % | +/- 0.3% of reading *1 | 0-20 % |
| Nitric Oxide*² (fuel cell) |
1 ppm | 0-1500ppm +/-5% or 25ppm; | 0-5000ppm |
| Carbon Monoxide Corrected COK |
0.01% | Calculated | 0-15% |
| Lambda AFR (Petrol) (LPG) |
0.001 00.01 |
0.8 – 1.2 11.76 – 17.64 12.48 – 18.72 |
| Sensor response Time | Nominal 20 seconds |
| Warm up | Less than 2 minutes |
| Pre-programmed Fuels | Petrol/Gasoline, LPG Diesel and CNG. |
| PC connection | Via RS 232 port |
| Data-Logging | 200 Tests |
| Dimensions Weight Handset Probe |
1.2 kg (2.65 pounds) 240mm x 165mm x 65mm (9.45 x 6.5 x 2.56”) Insertion depth 350mm x Diameter 15mm Clip handle to secure to exhaust, 4m long hose Various probes available including high temperature |
| Ambient Operating Range | #ERROR! |
| Storage temperature | Minimum: 0°C Maximum: +45°C |
| Battery Charger | Input: 100-240 V
Output: 12 V DC |
| Analyzer battery run time | 6+ hours from full charge. |
