Press Brake | 33 Ton | Baileigh Industrial BA9-1000801
$28,528.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

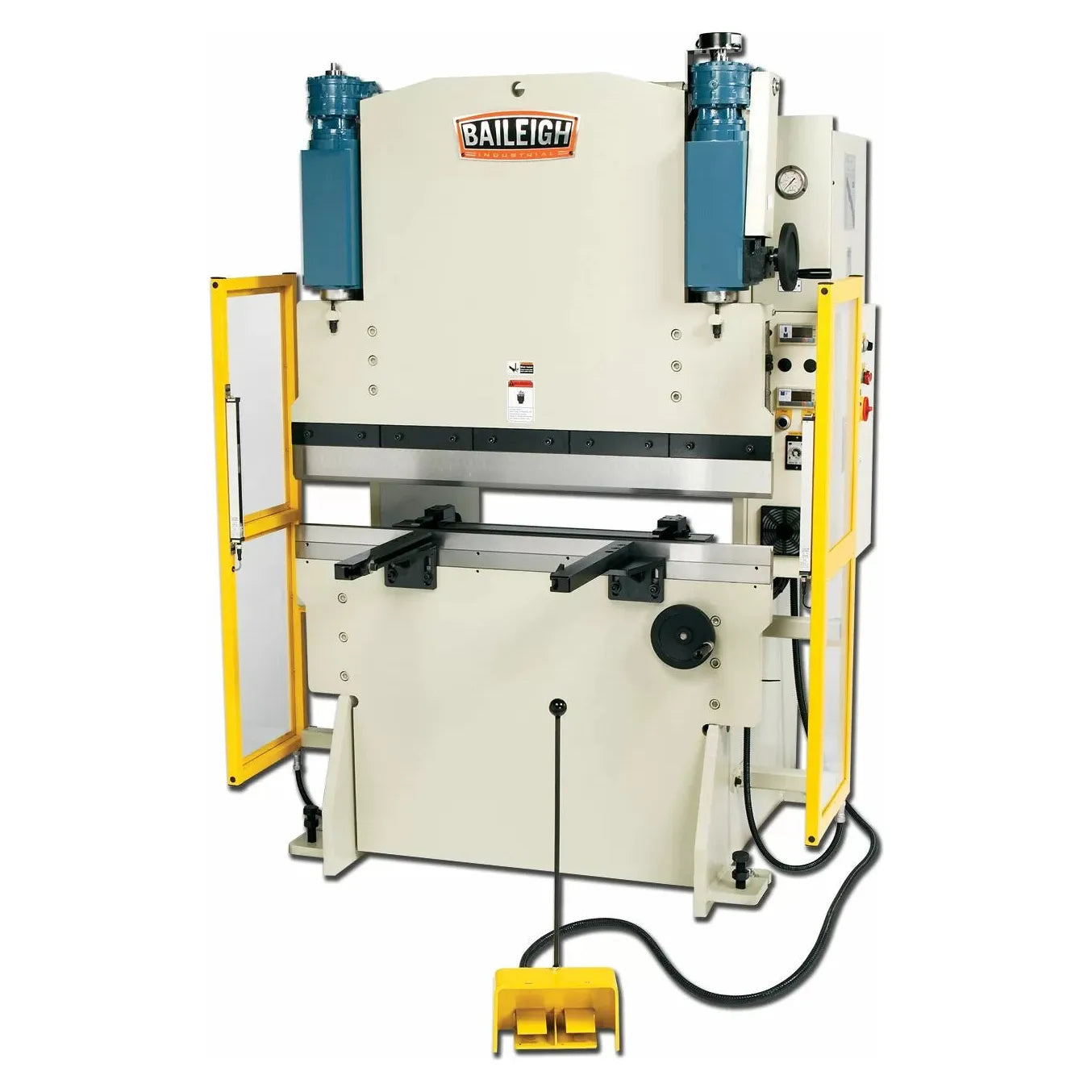

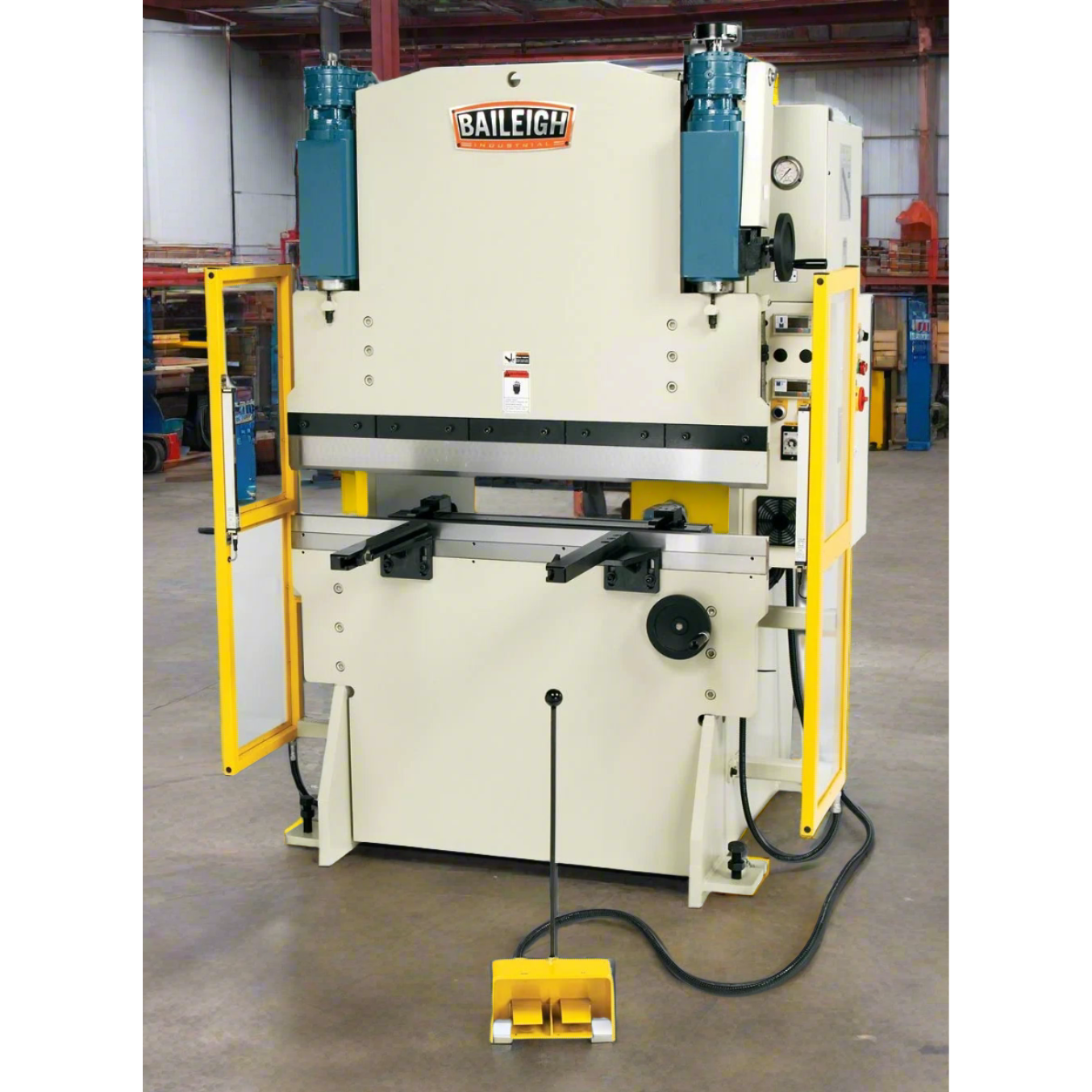

Baileigh Industrial BP-3350NC 220V 3Phase 33 Ton Hydraulic Press Brake BA9-1000801
Product Description
Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production.
Powerful, Easy-to-Learn Hydraulic System
-
Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
-
2 encoder-controlled hydraulic cylinders move the top beam.
-
Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
-
It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
-
You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
-
2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
-
Foot pedal brings the stroke up and down, leaving your hands free to position the material.
-
Motorized back gauge rides on a solid ball screw trolley mechanism.
-
Back gauge encoder shows its position on its own DRO.
- Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
- You can train your staff to use this press brake in 5 minutes.
Rigid Structure and Low Maintenance
-
Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
-
Robust 2,640-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity.
-
Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
-
Includes a set of hardened single-Vee American tooling.
-
Accepts standard press brake tooling, giving you a wide variety of options.
-
Comes with front material rests (or support arms), which some competing machines do not include.
-
6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
-
4 grease zerks let you add oil every few months.
- Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
Features
- Produces up to 33 tons of pressure
- Bends sheet metal up to 50” wide
- Maximum capacity of .098” thick sheet metal across the machine’s full width
- Requires 220-volt 3-phase power
- Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
Specifications
| Stock Number | BA9-1000801 |
| Accessories | Included Accessories |
| Input Power | 220V / 3-phase |
| Model Number | BP-3350NC |
| Oil Reservoir Capacity (cc) | 20 gal |
| Prop 65 |
Cancer and Reproductive Harm
|
| Shipping Dimensions (L x W x H) (In.) | 75x59x94 |
| Warranty | 1 Year |
| Weight (Lbs.) | 2640 |
| Gross Weight | 2640 |
| Bending Capacity Max Length And Thickness | 50″ / .098″ |
