Hydraulic Press Brake | 224 Ton | Baileigh Industrial BA9-1000790
$77,999.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

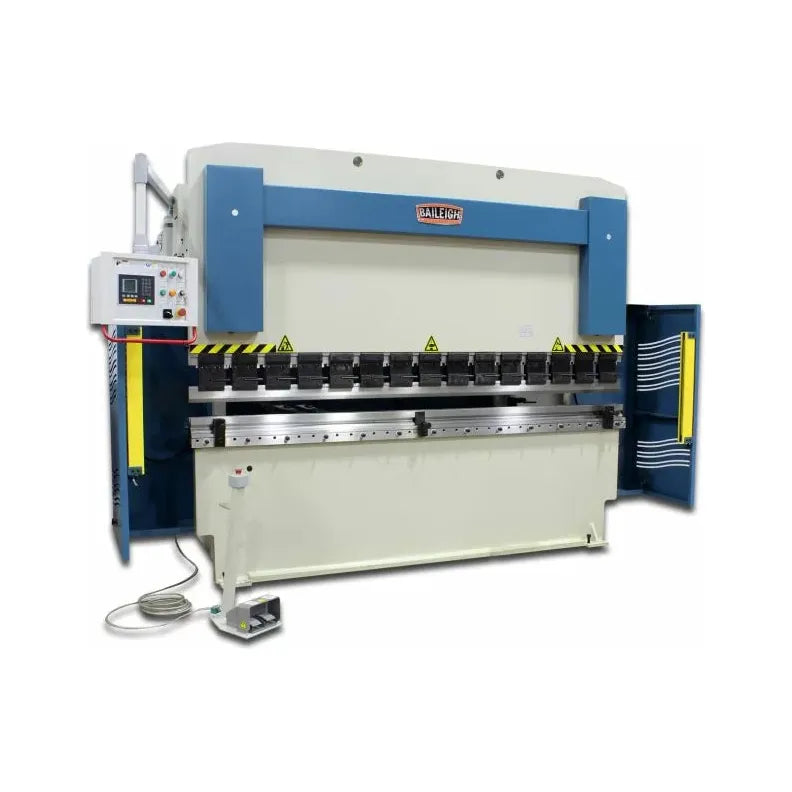

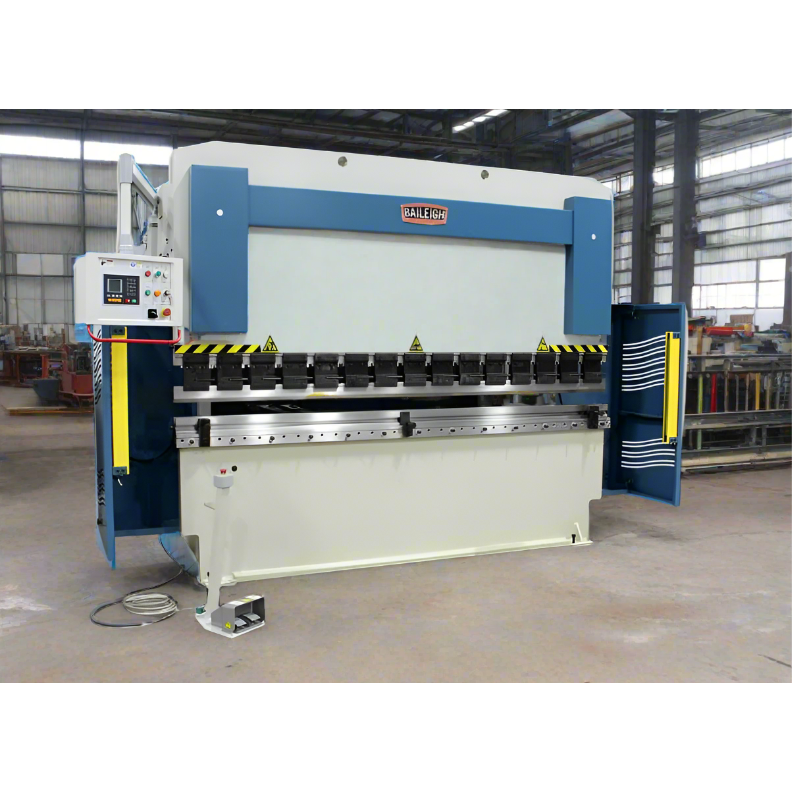

Baileigh Industrial BP-22410CNC 220V 3Phase 224Ton 20″ 2Axis Programmable Hydraulic Press Brake BA9-1000790
Product Description
Heavy steel construction enables this programmable 10-foot press brake to make crisp bends without deformation. The tried-and-true Nachi® hydraulic pump will last for years.
-
Delivers a whopping 224 tons of pressure.
-
Offers 10-foot (125”) length and 100” of distance between the housings.
-
This press brake is also available in a 13-foot version.
-
Run on 220-volt 3-phase power.
-
Industrial-grade hydraulic system with a Nachi® pump will keep the machine running smoothly and reliably.
-
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
-
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.

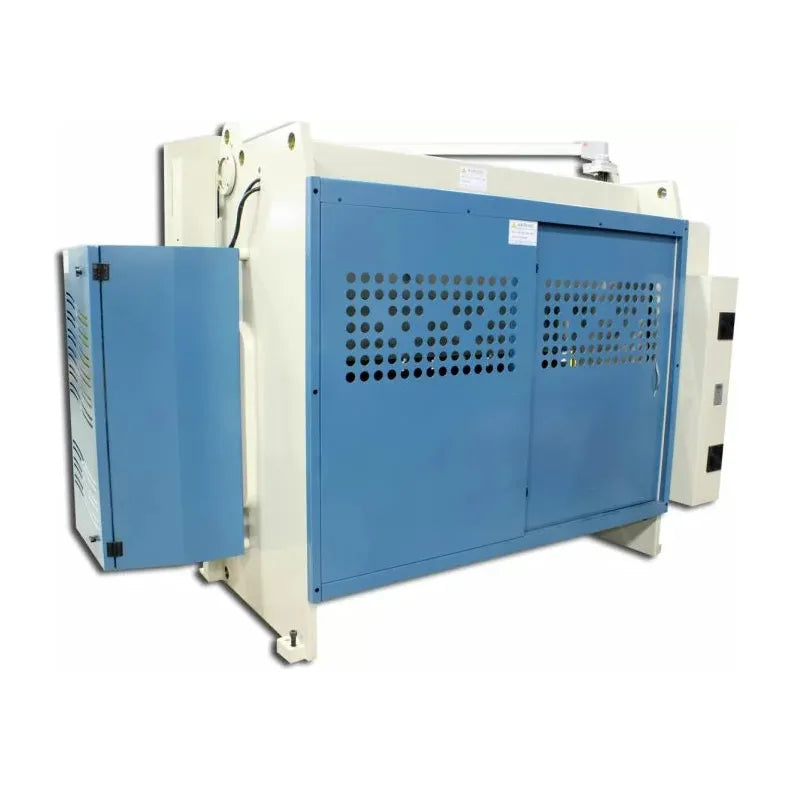

- Hydraulic cylinders are near the back of the machine for convenient fluid changes.

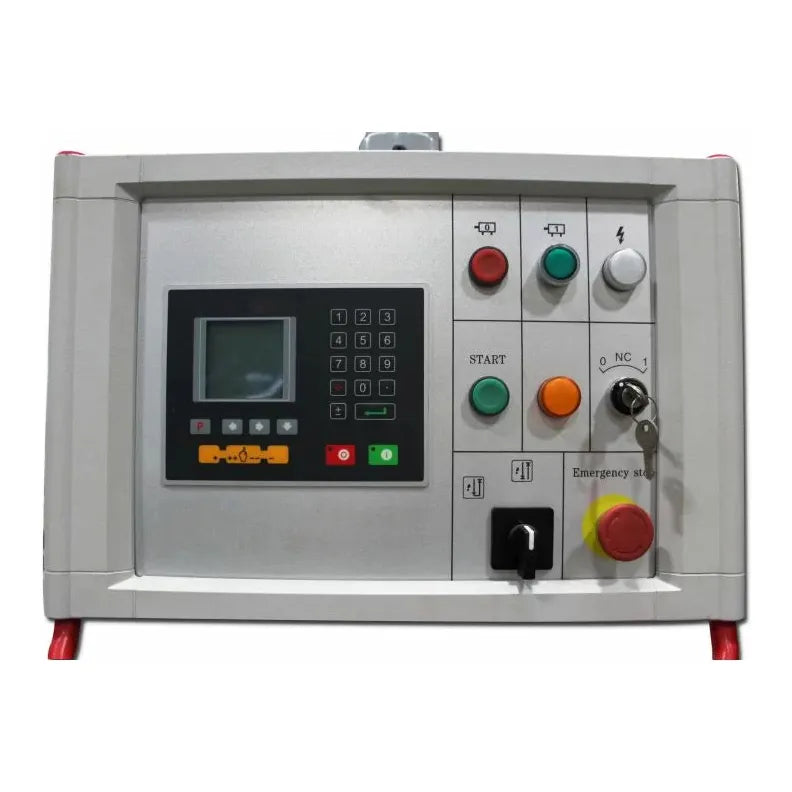

Accurate, User-Friendly Control System
-
Runs in single-bend mode or programmable mode.
-
Comes standard with 2 axes of control: stroke and back gauge distance.
-
Controller is so simple that you could train someone to use it in 5 minutes.
-
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
-
Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
-
Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
-
Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
-
You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
-
Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
-
Speed option lets you reduce cycle time and make your shop more efficient.
-
Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
- The 23.62″ back gauge can advance or retract according to programmed instructions.
Steel Plate Construction and Included Tooling
-
Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
-
Weighs a robust 21,280 lbs. for massive structural strength that ensures accurate results.
-
Includes support arms around 2 feet in length.
-
Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
-
Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
-
Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
-
Safety light curtains prevent the machine from bending when someone is too close.
- Light curtains will swing open and get out of the way when you’re doing a tool change.
Fast Shipping and Lifetime After-Sale Care
-
This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
-
We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
-
Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
-
We offer a 1-year parts warranty.
- With lifetime technical support by phone, you can contact us any time and talk with service reps who have years of experience with industrial machinery.
Features
- 224 tons of pressure
- 10-foot length (125”)
- Nachi® hydraulic pump
- Controller stores 40 programs
- Covered by Baileigh 1-Year Parts Warranty
Specifications
| Stock Number | BA9-1000790 |
| Approach Speed | 2.0″ / sec. |
| Assembled Machine Dimensions (L x W x H) (In.) | 134″ x 64″ x 103″ |
| Back Gauge Capacity (In.) | 23.62″ |
| Bending Speed | .236″ / sec |
| Distance From Table To Ram | 19.6″ |
| Distance Per Stroke (In.) | 7 |
| Input Power | 220V / 3-phase |
| Model Number | BP-22410 CNC |
| Prop 65 |
Cancer and Reproductive Harm
|
| Shipping Dimensions (L x W x H) (In.) | 155x72x100 |
| Shipping Weight (Lbs.) | 21280 |
| Throat Depth (In.) | 12.5″ |
| Warranty | 1 Year |
| Weight (Lbs.) | 29570 |
| Gross Weight | 29570 |
| Back Gauge Motor (hp) | 1/2 hp |
| Distance Between Housings (In.) | 100/123″ |
