Electric Order Picker | 2200 lbs | Lifting Height 108.66” | Eoslift LHA10
Price range: $27,446.00 through $33,542.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 18 - Oct 21

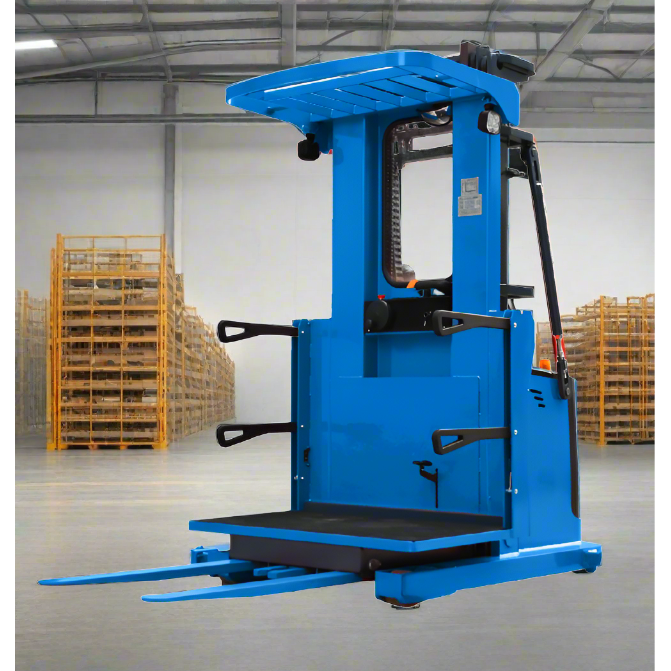

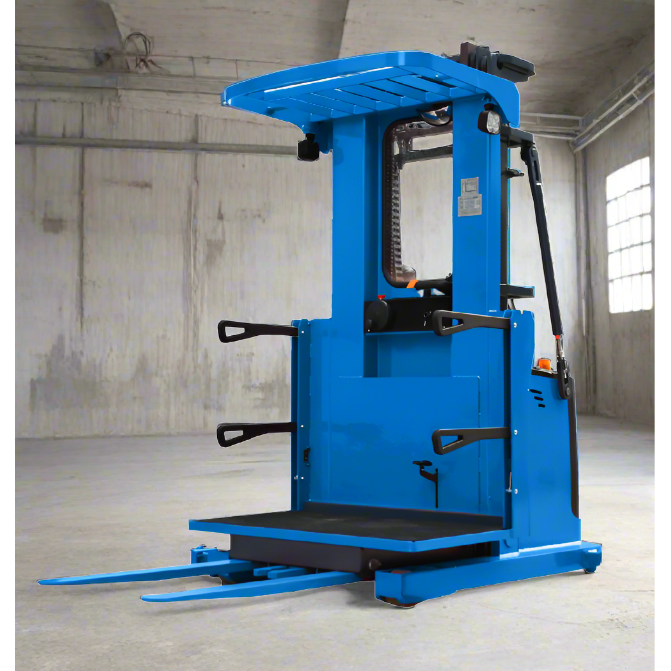

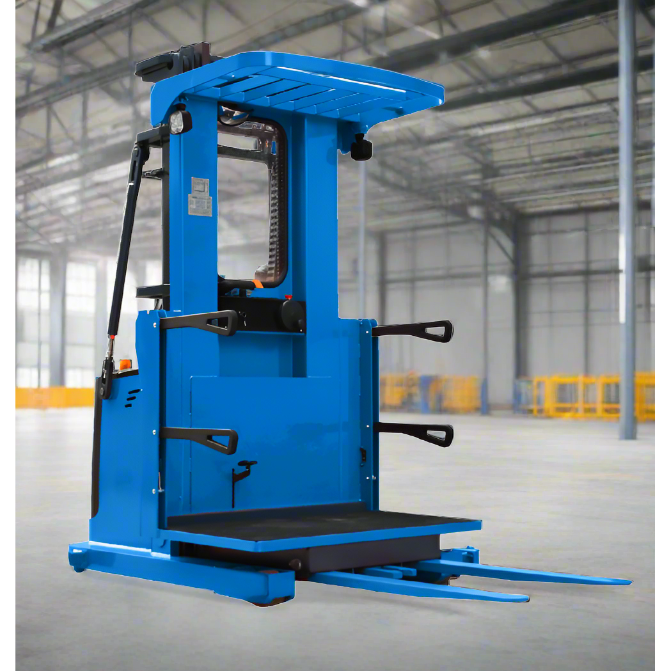

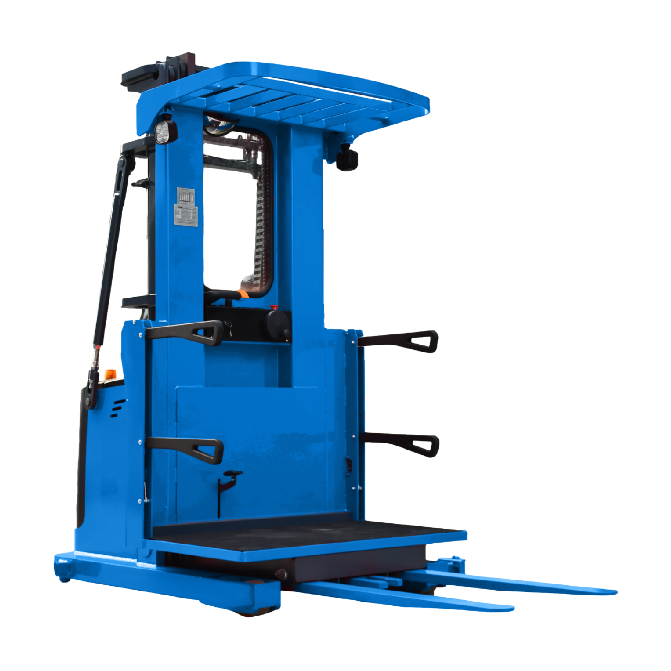

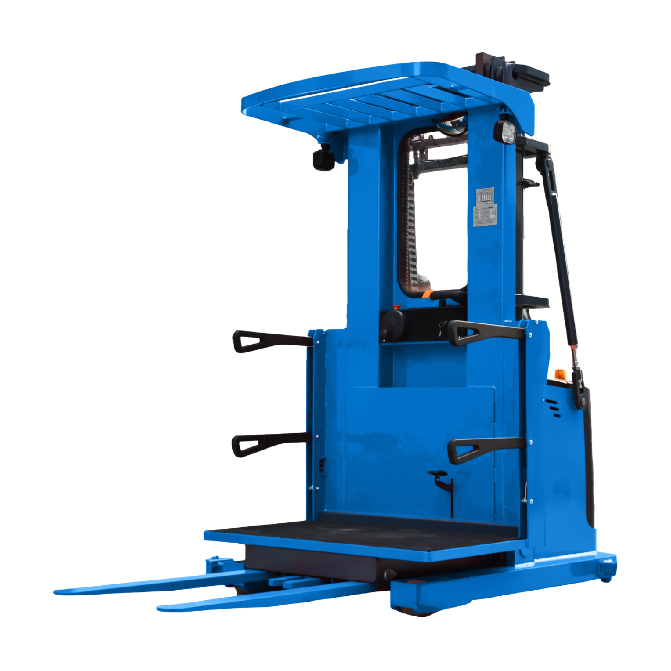

Eoslift Electric Order Picker 2206 lbs Capacity, 108.66” Lifting Height LH10
Product Description
The Eoslift Electric Order Picker, model LH10, is a versatile solution for streamlined order picking tasks in warehouses and distribution centers. With a substantial capacity of 2206 lbs (1000 kg), it efficiently handles various loads with ease. Featuring a lifting height of 108.66” (2760 mm), it enables swift access to goods stored on higher shelves, maximizing operational efficiency. Designed for user comfort and safety, this electric order picker enhances productivity while reducing strain on operators, making it an ideal choice for demanding warehouse environments.
Safety
- The position of the steering wheel is displayed clearly, which is convenient for the operator to control and operate.
- The Auxiliary lifting function is standard configuration, which can avoid the operator to squat, reduce the work intensity ad improve the efficiency
Maintenance
- Maintenance-free AC motor
- The machine body is easy to assemble and disassemble, and the main parts can be easily inspected
- Battery cover can be turned and opened, easy battery maintenance
Comfort
- Integrated protection operation mode
- Driving position with backrest for driving comfort
- Wide view of the shelf can obviously improve driving comfort
- Spacious operation space and braking area, with high-quality floor mats, ensure that the staff have enough space to change the foot
Specifications
| Model | LHA10 |
| Power Type | Battery |
| Operation type | Stand on |
| Rated Capacity | 2200 lbs. |
| Load Center | 19.68 in. |
| Front Overhang | 5.826 in. |
| Wheelbase | 55.51 in. |
Weight
| Service weight(Inc. Battery) | 5489.51 lbs. |
| Weight distribution when loaded,drive side/load side | 2072 lbs. / 5621.78 lbs. |
| Weight distribution when unloaded,drive side/load side | 3108.51/ 2380.99 lb |
Wheel
| Wheel Types | PU | |
| Drive Wheel | 10x 3.93 in. | |
| Load Wheel | 5.90x 3.54 in. | |
| # of wheels. front/rear (x=drive wheel) | 4/1x | |
| Wheel tread, load side | 39.68 in. | |
Size
| Mast closed height | 90.55 in. |
| Lift height | 108.66 in. |
| Mast extended height | 197.24 in. |
| Overhead guard height | 88.58 in. |
| Platform min. ground clearance | 10.23 in. |
| Auxiliary lift height | 27.55 in. |
| Platform max. ground clearance | 2.75 in. |
| Overall length | 111.22 in. |
| Length to fork face | 69.094 in. |
| Overall width | 45.27 in. |
| Fork size | 42.12/ 3.93/ 1.57 in. |
| Fork outside width | 27.55 in. |
| Mast ground clearance | 1.96 in. |
| Body ground clearance | 1.96 in. |
| Aisle width, pallet 1000*1200 (C=500mm） | 122.83 in. |
| Aisle width, pallet 800*1200 (C=600mm) | 127.16 in. |
| Turning radius | 63.97 in. |
Function
| Driving speed (load/unload) | 3.72/3.92 m/h | |
| Lifting speed (load/unload) | 4.52/5.51 mm/s | |
| Lowering speed (load/unload) | 5.31/ 5.51 mm/s | |
| Brake type | Electromagnetic type | |
Drive
| Driving motor (S2-60min) | 2.5 kw | |
| Lifting motor (S3-15%) | 3 kw | |
| Battery voltage /capacity | 24/400 V/Ah | |
| Battery Weight | 771.61 lbs. | |
| Driving motor type | AV | |
| Driver ear noise（EN12053） | 70 dB(A) | |
| Steering system | EPS | |
